WEN 6369 - Variable Speed 5-Amp Drywall Sander Manual

INTRODUCTION

Your new tool has been engineered and manufactured to WEN's highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe, reliable service.

TECHNICAL DATA

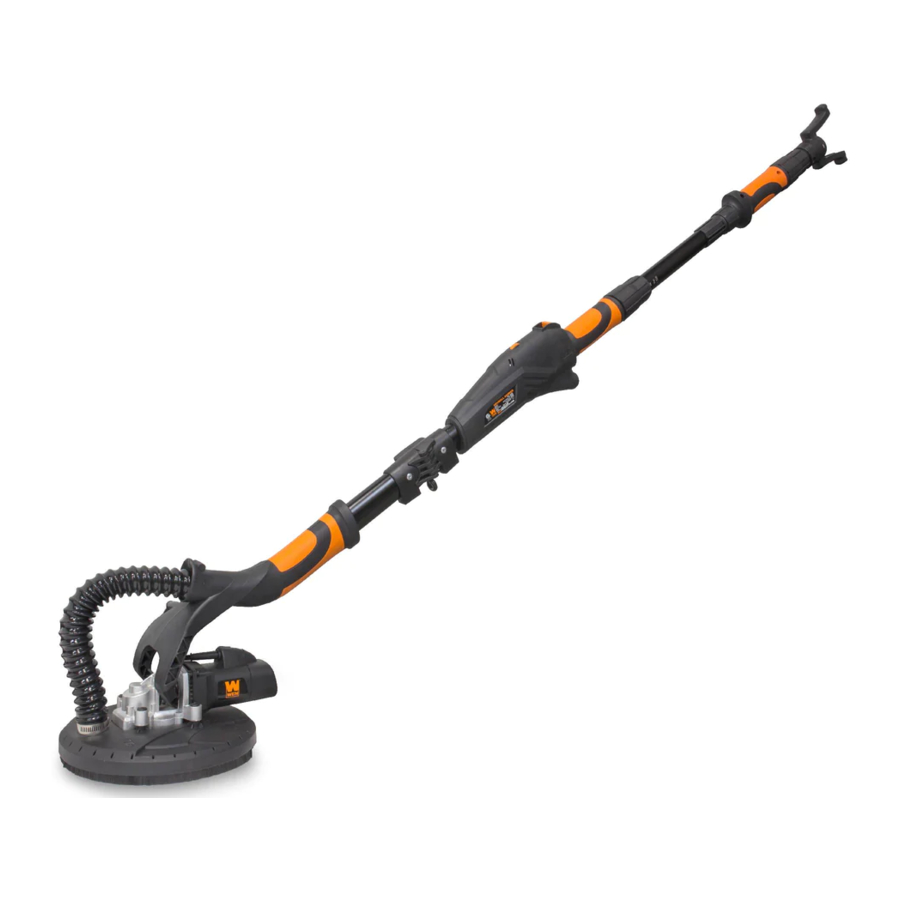

KNOW YOUR DRYWALL SANDER

TROUBLESHOOTING

ASSEMBLY

To avoid injury from accidental startups, turn switch OFF and remove the plug from the power source outlet before making any adjustments.

1. Unfold the front and back of the drywall sander. Push the clasp into the closed position to keep the drywall sander assembly from unfolding (Fig. A).

2. Attach the sanding disk of your choice to the face of the hook and loop base pad. Ensure the holes on the sanding disks align with the holes on the bottom of the pad (Fig. B).

3. Attach the optional handle extension by inserting the pole into the main drywall sander. Tighten the nut to lock the handle extension in place.
4. If you would like to use a dust collection device, screw the hose connection port into the end of the additional handle extension. If you choose not to use the handle extension, attach the hose connection port directly into the end of the main drywall sander assembly.
5. Connect one end of the dust hose to the end of the hose connection port and another to the dust extraction device of your choice.


OPERATION

1. Hold the machine with both hands.
2. Do not hold the machine by the machine's head.
3. Before operation, make sure every fastener and nut has been properly engaged and that the sanding pad has been properly installed and aligned.
4. Before switching on the machine, keep the sanding head slightly away from the work surface.
5. Do not press down too hard in order to avoid overloading the sander. Use proper pressure for better sanding effects. If the machine slows or bogs down, immediately lessen the applied pressure. The quality of the results are mainly determined by choosing the right abrasive material for the job.
6. Once the sanding task has been completed, turn off the machine. Wait for the pad to stop rotating before setting down the machine.

VARIABLE SPEED CONTROL

Use the speed wheel (Fig. D - 1) to adjust anywhere from 600 to 1500 RPM. This drywall sander is equipped with constant speed control to keep the pad running at a consistent rate despite changes in applied load.

TURNING ON THE DRYWALL SANDER

After setting the variable speed to your desired RPM, power the machine by pressing forward on the power switch (Fig. D - 2).

MAINTENANCE

REPLACE THE SANDING PAD

Insert the hex wrench into the hexagonal screw (Fig. E - 1) located in the center of the hook and loop sanding pad. Hold the pad firmly while turning the wrench to unscrew the center hex screw. Replace the pad with an identical part suited for this particular model of drywall sander. Attach firmly in place using the hexagonal screw.

CLEANING AND MAINTAINING YOUR DRYWALL SANDER

Your drywall sander requires no additional lubrication or maintenance. Always store your sander in a dry place away from children. If the supply cord is damaged, it must be replaced by the manufacturer or a similarly qualified technician. Do not use a damaged tool.

If excessive sparking occurs, have the carbon brushes checked by a qualified electrician. Only a qualified technician should change the carbon brushes.

Clean the unit immediately after using it. Regularly clean the unit with a damp cloth and a little soft soap. Do not use cleaners or solvents as they will attack the plastic of the unit. Make sure water does not get into the unit.

GENERAL SAFETY RULES

Safety is a combination of common sense, staying alert and knowing how your item works.
SAVE THESE SAFETY INSTRUCTIONS.

To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood.

1. READ and become familiar with this entire instruction manual. LEARN the tool's applications, limitations, and possible hazards.
2. AVOID DANGEROUS CONDITIONS. Do not use power tools in wet or damp areas or expose them to rain. Keep work areas well lit.
3. DO NOT use power tools in the presence of flammable liquids or gases.
4. ALWAYS keep your work area clean, uncluttered, and well lit. DO NOT work on floor surfaces that are slippery with sawdust or wax.
5. KEEP BYSTANDERS AT A SAFE DISTANCE from the work area, especially when the tool is operating. NEVER allow children or pets near the tool.
6. DO NOT FORCE THE TOOL to do a job for which it was not designed.
7. DRESS FOR SAFETY. Do not wear loose clothing, gloves, neckties, or jewelry (rings, watches, etc.) when operating the tool. Inappropriate clothing and items can get caught in moving parts and draw you in. ALWAYS wear non-slip footwear and tie back long hair.
8. WEAR A FACE MASK OR DUST MASK to fight the dust produced by sanding operations.

   Dust generated from certain materials can be hazardous to your health. Always operate the tool in a well-ventilated area and provide for proper dust removal. Use dust collection systems whenever possible.
9. ALWAYS remove the power cord plug from the electrical outlet when making adjustments, changing parts, cleaning, or working on the tool.
10. KEEP GUARDS IN PLACE AND IN WORKING ORDER.
11. AVOID ACCIDENTAL START-UPS. Make sure the power switch is in the OFF position before plugging in the power cord.
12. REMOVE ADJUSTMENT TOOLS. Always make sure all adjustment tools are removed from the saw before turning it on.
13. NEVER LEAVE A RUNNING TOOL UNATTENDED. Turn the power switch to OFF. Do not leave the tool until it has come to a complete stop.
14. NEVER STAND ON A TOOL. Serious injury could result if the tool tips or is accidentally hit. DO NOT store anything above or near the tool.
15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant rubber-soled footwear. Keep the floor clear of oil, scrap, and other debris.
16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow instructions for lubricating and changing accessories.
17. CHECK FOR DAMAGED PARTS. Check for alignment of moving parts, jamming, breakage, improper mounting, or any other conditions that may affect the tool's operation. Any part that is damaged should be properly repaired or replaced before use.
18. CHILDPROOF THE WORKSHOP. Use padlocks and master switches and ALWAYS remove starter keys.
19. DO NOT operate the tool if you are under the influence of drugs, alcohol, or medication that may affect your ability to properly use the tool.
20. USE SAFETY GOGGLES AT ALL TIMES that comply with ANSI Z87.1. Normal safety glasses only have impact resistant lenses and are not designed for safety. Wear a face or dust mask when working in a dusty environment. Use ear protection such as plugs or muffs during extended periods of operation.

SPECIFIC RULES FOR THE DRYWALL SANDER

Do not operate this tool until it is completely assembled and installed according to the instructions.

1. This equipment should never be used in surroundings in an explosive or flammable atmosphere.
2. Do not let the cable touch any parts of your body.
3. Do not force the machine to do a job that is not intended such as rough grinding, brushing, etc.
4. Only use identical replacement parts when servicing the drywall sander.
5. Accessories need to be rated at a minimum of 1500 RPM. Do not use accessories rated at speeds below the machine's maximum RPM.
6. Never use damaged accessories. Always check whether accessories are nicked or cracked prior to operation; in particular, the grinding pad support plate. Run the machine at maximum speed for one minute in order to test accessories before using them to sand anything. Make sure bystanders stand clear during this testing phase.
7. Do not put down the machine until the pad's rotation has completely stopped.
8. Regularly clean your machine's exhaust/dust port.
9. Do not use sanding disks larger than the recommended size (9 inches).
10. Only use one extension tube at a time.
11. Always allow for reaction torque.

ELECTRICAL INFORMATION

GROUNDING INSTRUCTIONS

IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching outlet that is properly installed and grounded in accordance with ALL local codes and ordinances.

DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the outlet, have the proper outlet installed by a licensed electrician.

IMPROPER CONNECTION of the equipment grounding conductor can result in electric shock. The conductor with the green insulation (with or without yellow stripes) is the equipment grounding conductor. If repair or replacement of the electric cord or plug is necessary, DO NOT connect the equipment grounding conductor to a live terminal.

CHECK with a licensed electrician if you do not completely understand the grounding instructions or whether the tool is properly grounded.

USE ONLY THREE-WIRE EXTENSION CORDS that have three-pronged plugs and outlets that accept the tool's plug as shown in Fig. A. Repair or replace a damaged or worn cord immediately.

In all cases, make certain the outlet in question is properly grounded. If you are not sure, have a licensed electrician check the outlet.

This tool is for indoor use only. Do not expose to rain or use in damp locations.

Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The table below shows the correct size to be used according to cord length and nameplate ampere rating. When in doubt, use a heavier cord. The smaller the gauge number, the heavier the cord.

Make sure your extension cord is properly wired and in good condition. Always replace a damaged extension cord or have it repaired by a qualified person before using it. Protect your extension cords from sharp objects, excessive heat and damp/wet areas.

Use a separate electrical circuit for your tools. This circuit must not be less than a #12 wire and should be protected with a 15 A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in the OFF position and the electric current is rated the same as the current stamped on the motor nameplate. Running at a lower voltage will damage the motor.

This tool must be grounded while in use to protect the operator from electric shock.
