Always keep the MC-IP-ODC on the same network switch as the MC-IP-116s that it
needs to communicate with for best performance.

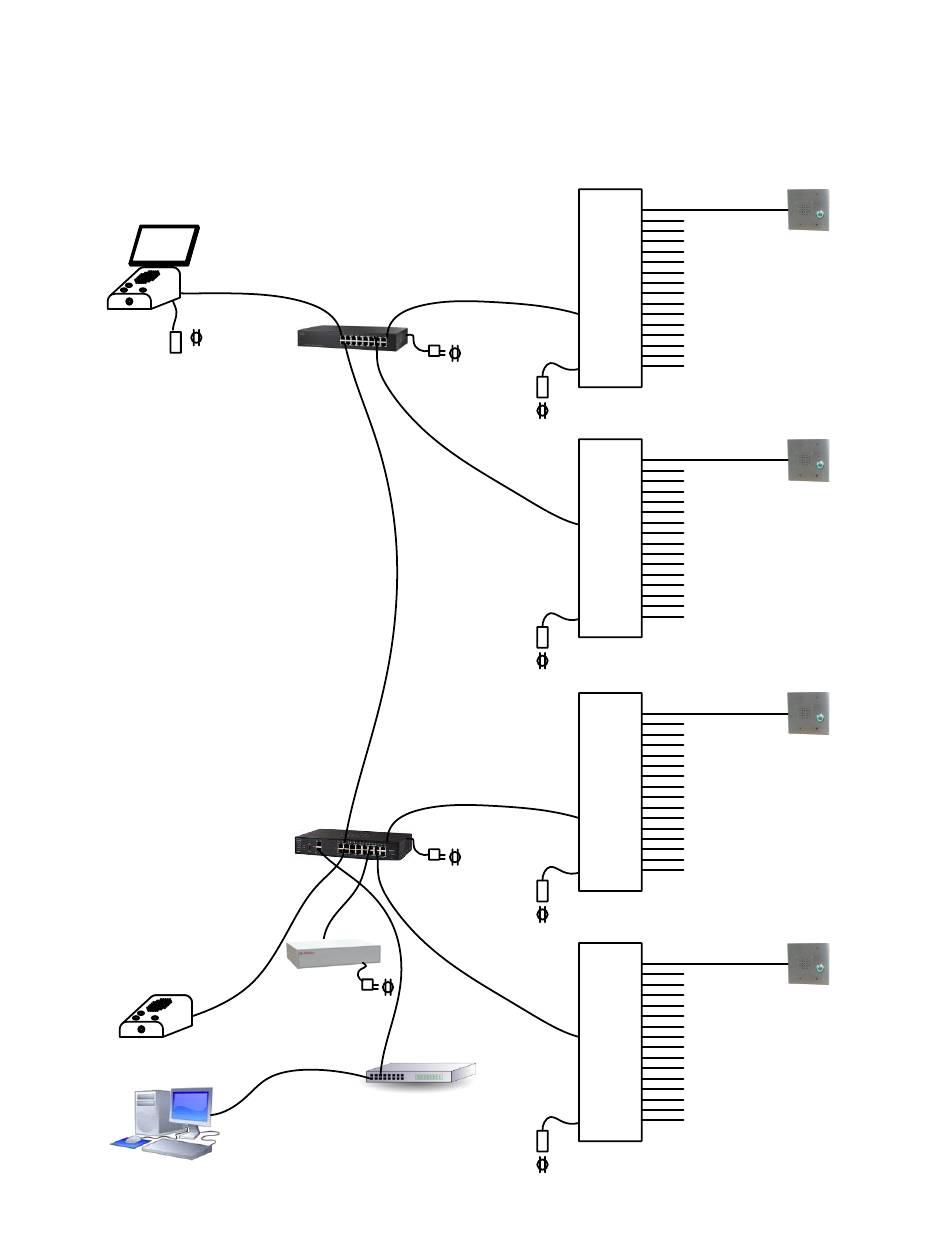

MC-IP-ODC-TC
MASTER CONTROL CONSOLE
WITH 10 INCH TOUCH SCREEN
UP TO 32 PER SYSTEM
PS-2437A
EACH DEVICE HAS IT'S OWN
LOCAL POWER SUPPLY
NETWORK SWITCH OR ROUTER
IF INTERFACING TO OTHER SYSTEMS
DEDICATED TO THE MC-IP INTERCOM
MC-IP-ODC-POE
DESK OPERATOR CONSOLE
WITHOUT DISPLAY
1/24/2021
Tech Works MC-IP-Series System Planning & Installation Manual
EVERYTHING CONNECTS WITH
CAT5E CABLE
MC-IP-HOST
SYSTEM CONTROLLER
AND IP SERVER
ONE REQUIRED PER SYSTEM
CONTROL SYSTEM NETWORK .
BY OTHERS
INTERFACED TO INTERCOM NETWORK
FOR SHARED CONTROL
MC-IP-116
STATION SELECT PANEL
16 PORT, RACK MOUNTED
UP TO 32 PER SYSTEM
PS-2437A
VPSS-L INTERCOM
PASSIVE STATION HARDWARE
WITH 25 VOLT SPEAKER,
CALL BUTTON,
AND CALL ASSURANCE LIGHT
