Tech Works CI Series System Planning Manual

The CI Series is the most full-featured, flexible
communications system available anywhere,
at any price. Designed for the most demanding
environments, CI Series systems can be
custom configured to fit any space. Easy to
install, easy to configure, easy to integrate, the
CI SERIES' modular design makes system
design a breeze. The modular design enables
you to custom configure the best system for the
job. Select components you need, locate them
where they need to be, and put them together
via fast, dependable CAT6 connectivity.

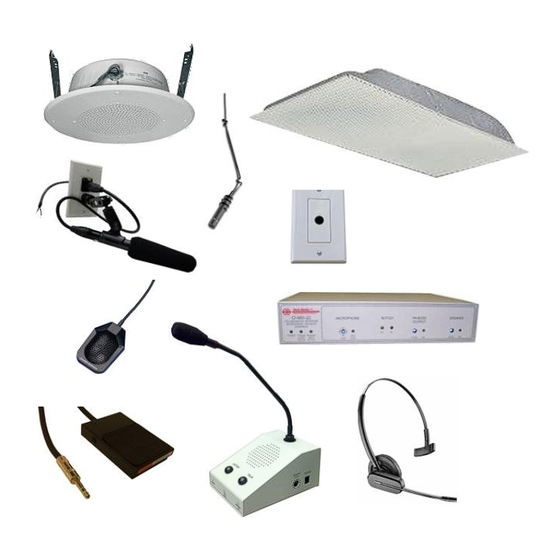

The Tech Works CI-Series Collaborative
Intercom system
Speakers, the CI-MSI-22 Microphone Speaker
Interface control unit, Wireless Headsets, the
CI-HSI-41 Headset Interface unit, the CI-ODC-
1 Operator Desk Console, and many more
accessories like foot operated switches.
The system is based on a sophisticated
Automatic Level Control technology which
delivers consistent, crystal clear, intelligible
sound, from a whisper to a shout. With easy
integration to third
microphones, and speakers, there is almost no
limit to how you configure your system;
Tech Works, Inc., 7430 Eastgate Road, Suite 130, Henderson, NV 89011
includes Microphones,
party headsets,
Direct Line: 702-846-1080 Toll Free: 1-800-813-1080
Web site www.tech4people.com
CI Series
Collaborative Intercom System
System Planning Guide
BENEFITS
•
Fully Configurable
•
Full Duplex, Hands-free Audio
•
Universal Microphone Inputs
•
Built In Phantom Power
•
Built In Equalization
•
Automatic Level Control
•
Background Music Ducking
•
25 Volt Audio Power Amplifiers
•
Vox or Push To Talk Operation
•
Broadcast Quality Balanced
Line In/Out for
Interface to Teleconferencing
Associated Equipment
CI-HSI-41
CI-MSI-22
CI-ODC-1
CI-ODC-4
PS-2437A
Design Information
Power 24V DC
Wiring CAT6 Patch Cables
Headset Interface
Microphone / Speaker
Interface
Operator Desk
Console
4 Group Operator
Desk Console
24VDC Power Supply
10/19
