Tech Works MC-IP Series Manual

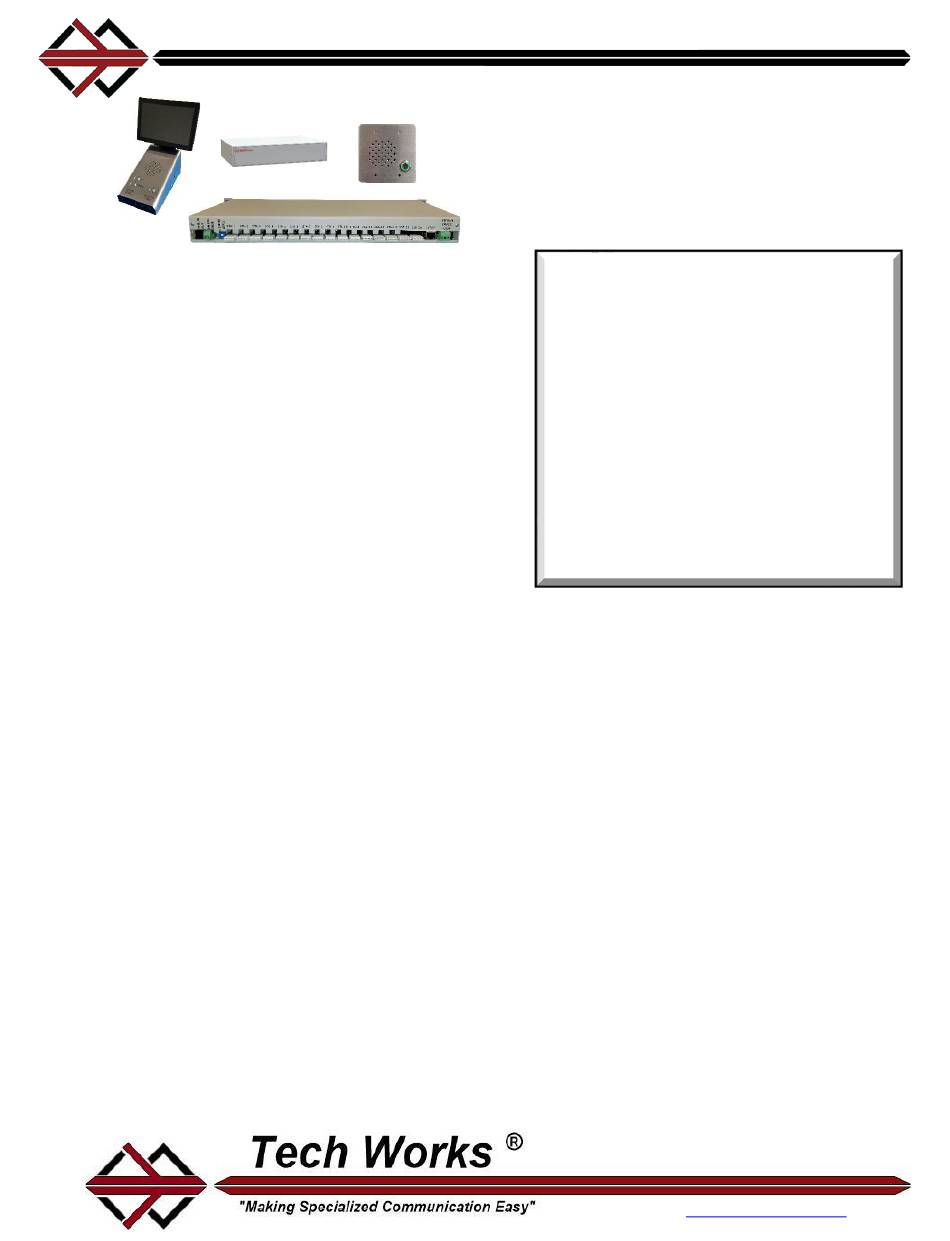

The MC-IP-Series is a group of audio products
designed to provide very high audio quality over
ethernet using Internet Protocol. Audio quality is
consistent and predictable
implementation of Streaming VOIP with our
tried-and-true audio designs and industry
standard interfaces. MC-IP makes intercom plug
and play. The MC-IP provides Master to Remote
communication and
Communication up to 32 Masters and 512
Remotes.
Using industry standard API for integration and
industry standard 25-volt speakers for remote
stations, the MC-IP drops into most integrated
control systems using the door control and
security system touch screen for seamless
operator control of all security electronic
systems from a single touch screen control
console.
By using a dedicated IP network with dedicated
switch, operator console, field device interface,
and Host, the MC-IP maintains quality audio
with no IT setup. By plugging the units in they
automatically assign
propagate settings based on ID settings on each
device. This allows the system programmer to
program the system the way it needs to be for a
specific facility without worrying about the IT
settings for proper operation. Maintenance
personal, without IT skills, can swap a box and
just set the box ID. As soon as it is attached to a
system, the Host sets the IT parameters and
downloads the unique characteristic that unit
was assigned during the original system
programming.
System Station hardware
confirmation light and privacy alert tone for
those areas that require ADA and Right to
Privacy Act compliance.
due to the
Master to Master
IP addresses and
offers a call
MC-IP-Series
Modular Communication
Internet Protocol
Audio Intercommunication
BENEFITS
• Audio and Control over a Single
Internet Protocol Connection
• Rugged Design
• High Quality Audio
• Self-contained electronics
eliminates the need for wiring
separate Modules together
• Designed Specifically for
Security, Corrections and
Industrial applications
• Industry Standard 25-Volt
remote speakers
Associated Equipment:
MC-IP-ODC- Operator Desk Console
POE w/Power Over Ethernet
MC-IP-ODC-TS Touch Screen Console
MC-IP-HOST Network Administrator

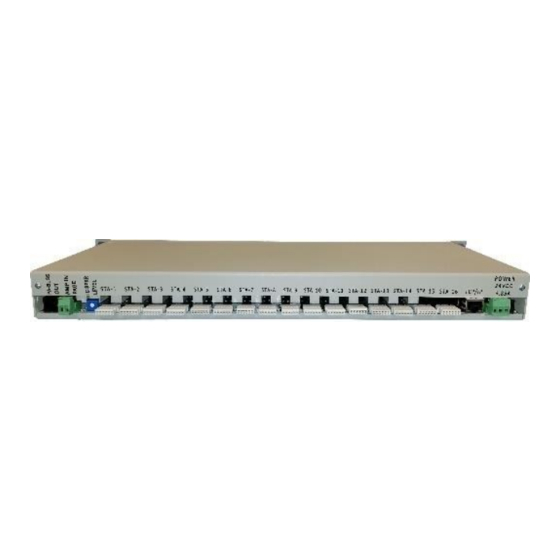

MC-IP-116 16-Channel Intercom Control
Module
MC-IP-116-L 16-Channel Intercom Control
Module w/Remote Station
Light Output
MC-IP-SW-16 16 port TCP/IP Switch Rack
Mount
MC-IP-SW-16- 16 port TCP/IP Switch
POE 8 w/POE, Rack Mount
PA-402 Paging Amplifier
PS-2437A Power Supply
VPSS-L Vandal-proof Speaker Station
w/ Lighted Call Button
Design Information:
Power 24V DC Power Supply
(Sold Separately)
150Hz – 10k
Frequency
Response
800-813-1080 www.techworks-usa.com 01/21
