Relay Enable is how to route relay calls. There are 4 options:
1. Relay 1 which means send relayed calls to the OCD designated as Relay 1 only.
2. Relay 2 which means send relayed calls to the OCD designated as Relay 2 only.
3. Both which means send calls to both Relay 1 and Relay 2 as a Circular Hunt group.
So, when a call is to be Relayed it will first send the call to Relay 1 and if the timer
expires a second time it will then send the call to Relay 2.
4. DISABLED means that this Station will not Relay any calls to any other ODC.
Ring Local is a check box to designate if this Station is supposed to continue to ring
throughout the relay process.
Now let's take a look at the right half of the Station Configuration Screen.

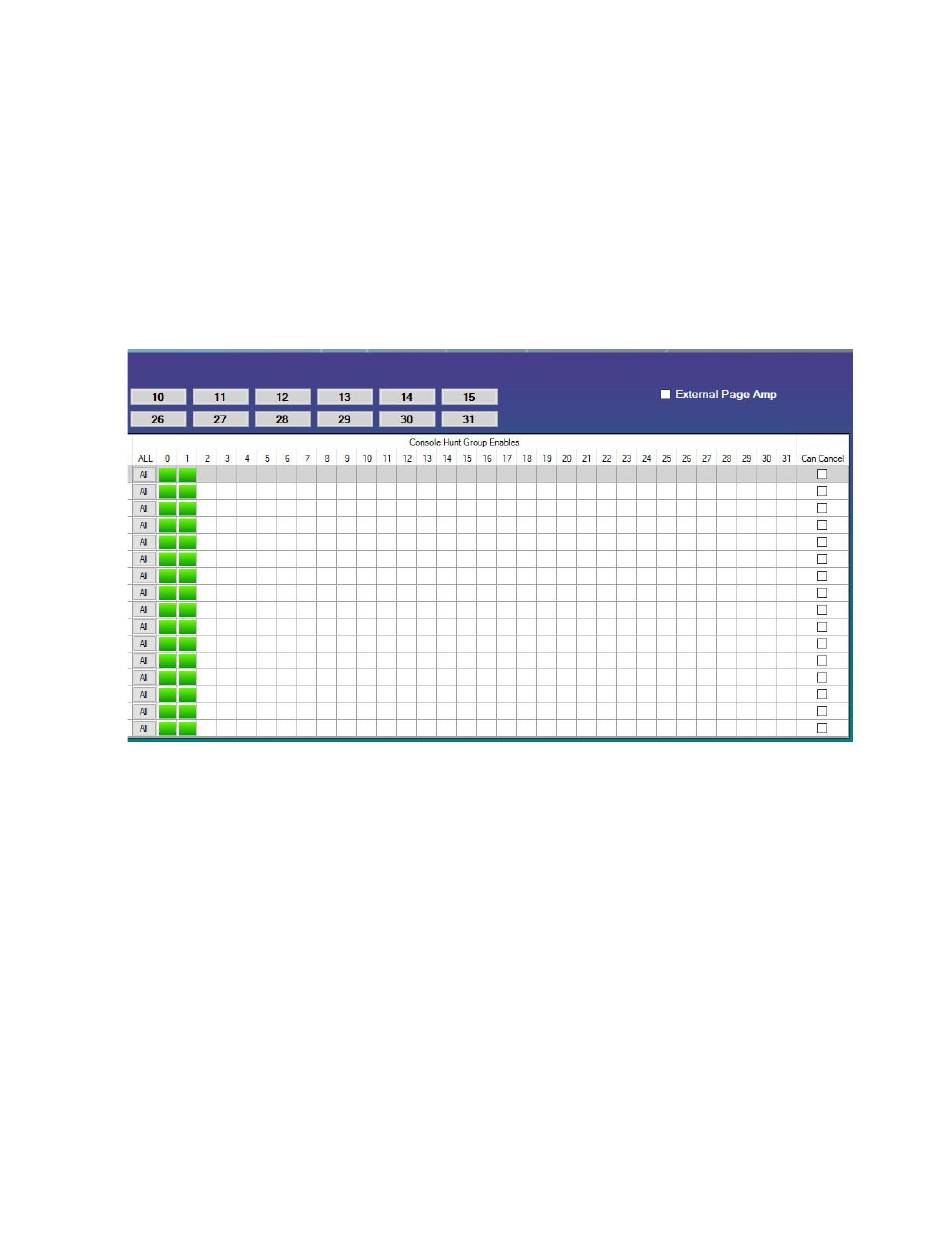

As shown above this MC-IP-116 has all calls from all 16 stations ringing at both ODC ID 0
and ODC ID 1. Any column can be active simultaneously by double clicking the Console Hunt
Group number at the top of the column.
Console Hunt Group Enables
call is first placed. When an ODC in the group picks up the call, the remaining ODC(s) in the group
will have the call canceled for them and stop ringing.
ALL is a short cut that allows the programmer to quickly send this station's calls to ALL 32
ODCs with the click of a single button.
Can Cancel is a check box that indicates whether this station can cancel its own call locally
or not. If the box is checked the station can cancel a call by pressing the call button a second
time. If it is not checked then a call can only be canceled by being answered.
