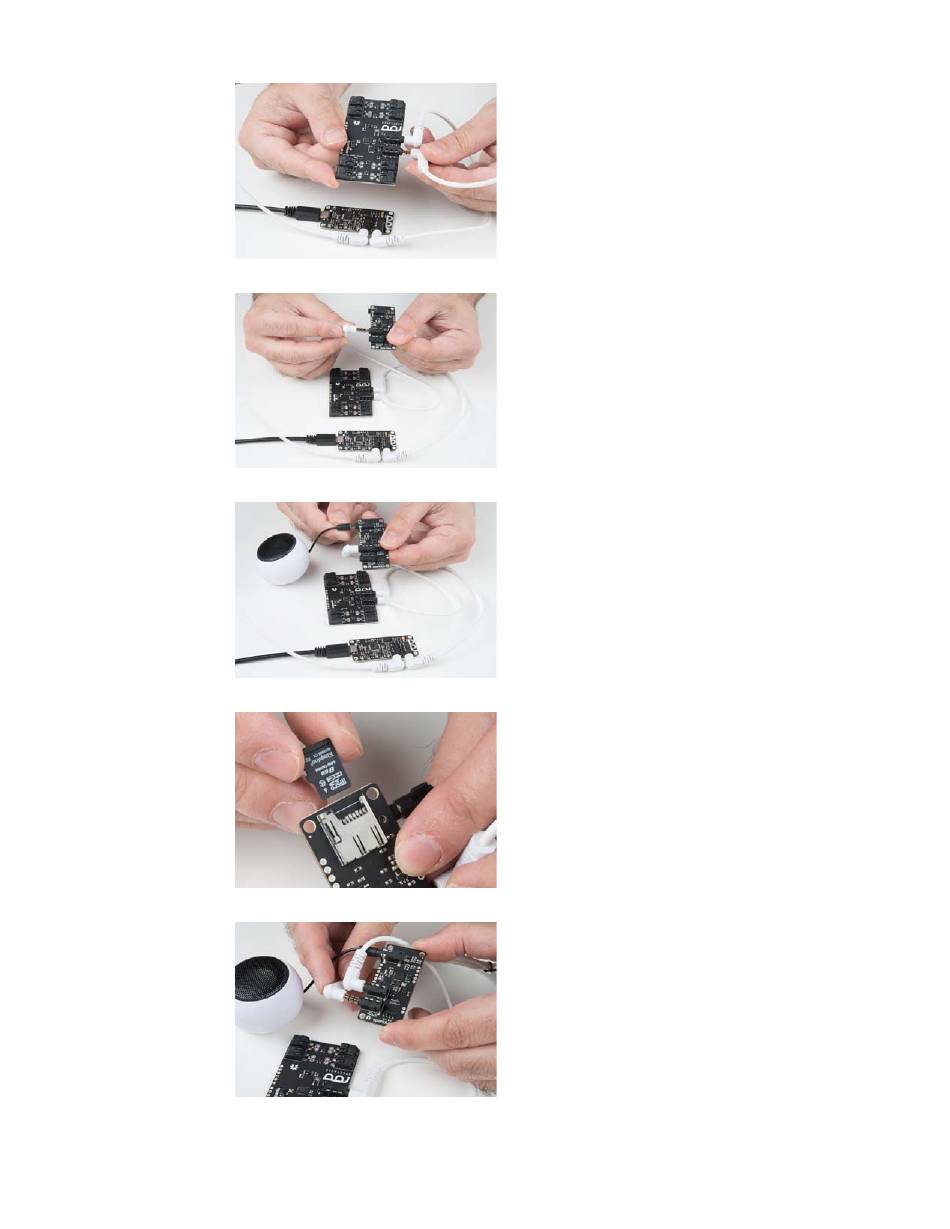

Plug the other end of that cable into the "In" jack on your Audio Board.
Now plug the speaker into the "Audio Out" jack on the Audio Board.
Insert the micro SD card into the Audio Board.
Plug another of the TRRS cables into the "Out" jack on your Audio Board.
Plug the other end of that cable into the "In" jack on your Light Board.
