The lightstrip will change from one color to another over time, then back to
the first.
• "While channel number __ is active" - The fade effect persists only
while the channel is active, so a continuous input signal is needed.
• "fade lightstrip number __ back and forth" - Select which lightstrip
you wish the fade effect to operate on. To have the same effect on
multiple lightstrips, you must create multiple actions.
• "from color" color picker - This is the initial color that the lightstrip
will power up with.
• "to color" color picker - The other color, which the strip fades to
and from periodically.
• "fade speed" slider - Controls how fast the fading action occurs.

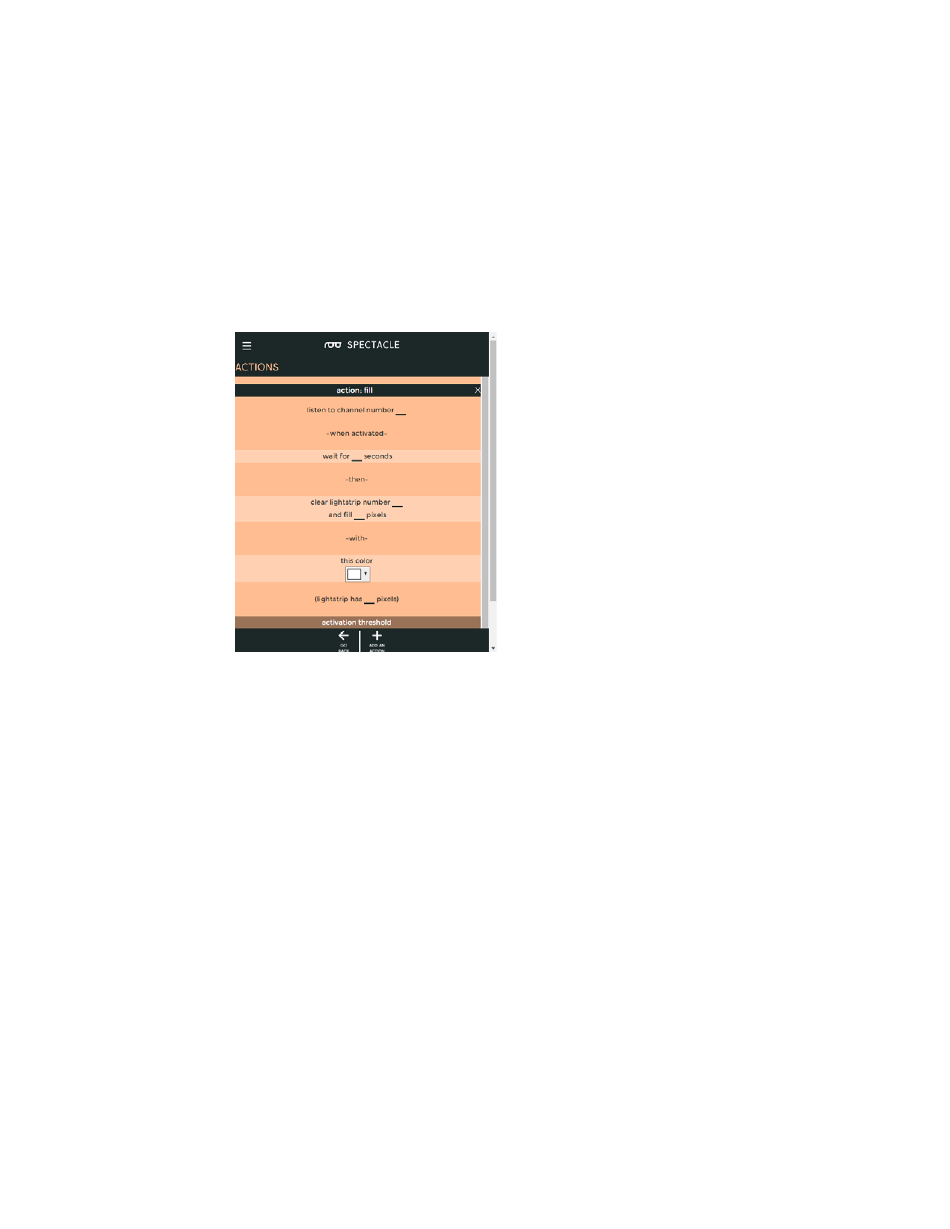

Fill
Fills some number of lights on the light strip with a single color. Blanks the
other lights to off.
• "listen to channel number __" - A momentary signal on this
channel is all that is needed to trigger a fill operation, and the fill will
persist until another effect starts.
• "wait for __ seconds" - This delay allows for sequencing effects.
Most often you'll probably set it to 0.
• "clear lightstrip number __" - Select the lightstrip to operate upon.
• "and fill __ pixels" - The number of pixels, from closest to the Light
board out, to turn on.
Light pixel
