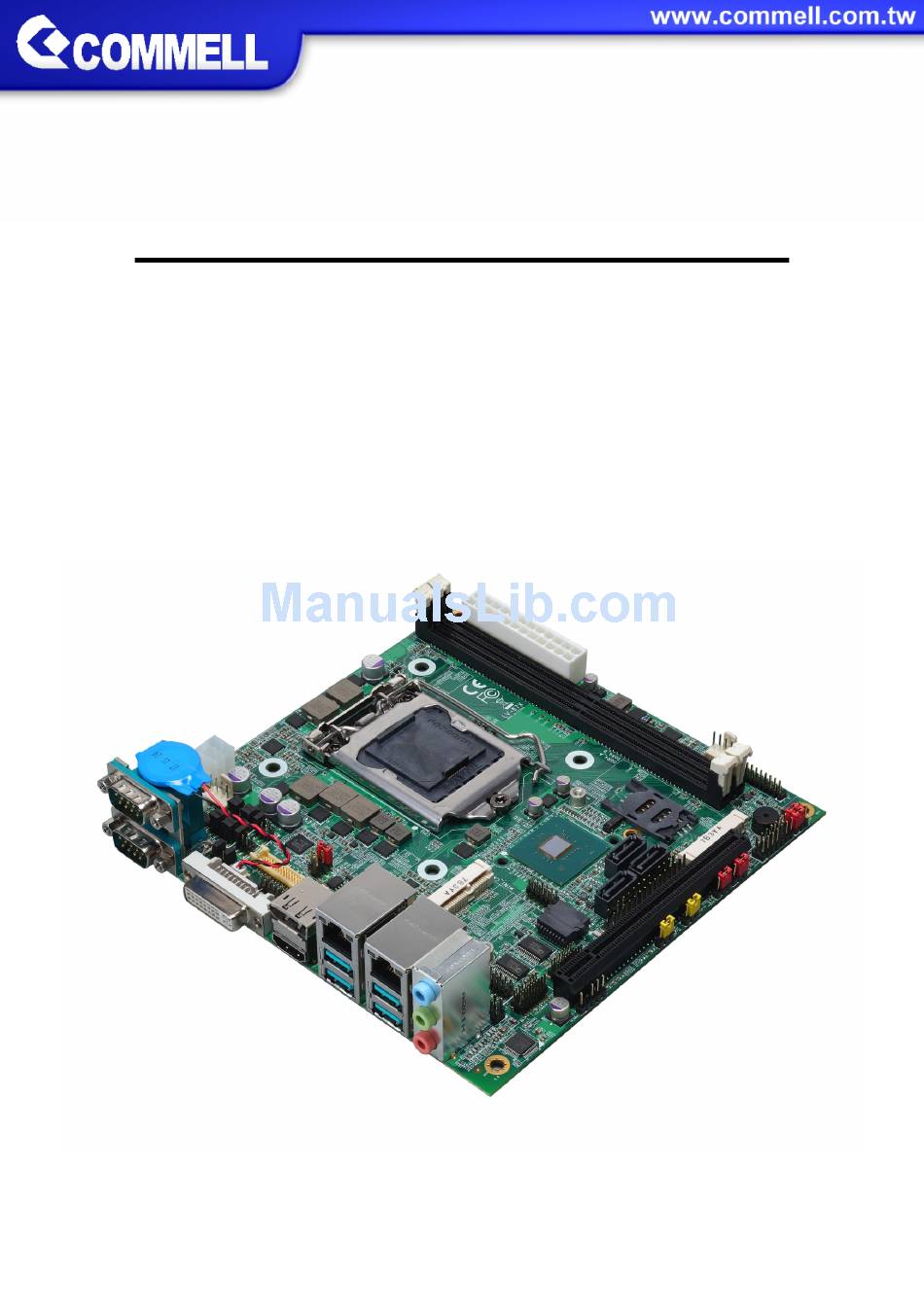

- Page 1 LV-67X Mini-ITX Desktop Motherboard User’s Manual Edition 1.2 2018/08/17...
- Page 2 LV-67X User’s Manual Copyright Copyright 2018, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
- Page 3 LV-67X User’s Manual Packing List: Please check the package content before you starting using the board. 1 x LV-67X Mini-ITX Motherboard 1 x I/O Shield 1 x VGA Cable (OPLATE-CDILAT) / (1270067) (OALVGA-SNB-7) / (1040557) 1 x Driver CD 2 x SATA Cable (Including User’s Manual)
-
Page 4: Table Of Contents
LV-67X User’s Manual Index Chapter 1 <Introduction>............... 4 1.1 <Product Overview>............4 1.2 <Product Specification> ............5 1.3 <Block Diagram>..............6 Chapter 2 <Hardware setup>............7 2.1 <Connector Location and Reference> ........ 7 2.1.1 <Internal connectors list> ..........8 2.1.2 <External connectors list>.........8 2.2 <CPU and Memory Setup>... -
Page 5: Chapter 1

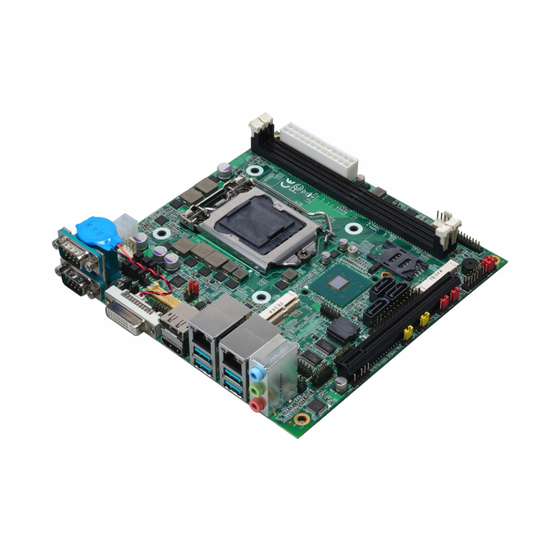

LV-67X User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LV-67X is Mini-ITX Motherboard which supports 8th generation Intel® Core™, Pentium® and Celeron® processor families (Coffee Lake S) with Intel® Q370 Chipset, integrated HD Graphics , DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3 Intel Coffee Lake-S Processor with Intel®... -
Page 6: Product Specification
LV-67X User’s Manual 1.2 <Product Specification> System 8th generation Intel® Core™, Pentium® and Celeron® processor , Processor FCLGA1151 package Chipset Intel® Q370 2 x DDR4 DIMM 2666 MHz up to 32GB, Memory Support Non-ECC, unbuffered memory only (Core i3, Pentium, Celeron CPU support 2400 MHz only) -
Page 7: Block Diagram
LV-67X User’s Manual 1.3 <Block Diagram>... -
Page 8: Chapter 2
LV-67X User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> CN_LVDS CN_AUDIO CN_CRT CN _INV CPUFAN CN_DIO CN_COM5/6 CN_12V MINI_CARD1 CN_COM3/4 PCI_E16X CN_LPC CN_PS2 SATA3-3 CN_USB2-1 SATA3-2 CN_USB2-2 SATA3-1 SIMM MINI_CARD2 JFRNT DDR4_A DDR4_B CN_USB 3-1 AUDIO SYSFAN... -
Page 9: Internal Connectors List
LV-67X User’s Manual 2.1.1 <Internal connectors list> Connector Function DDR4_A/B 288-pin DDR4 DIMM slot SATA3-1/2/3 7-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_LVDS 20 x 2-pin LVDS connector CN_INV... -
Page 10: Cpu And Memory Setup
LV-67X User’s Manual 2.2 <CPU and Memory Setup> 2.2.1 <CPU installation> LV-67X has a LGA1151 CPU socket onboard; please check following steps to install the processor properly. Attention If LV-67X needs RMA please Keep CPU socket cover on the CPU Socket. -
Page 11: Memory Setup
LV-67X User’s Manual 2.2.2 <Memory Setup> LV-67X has two 288-pin DDR4 DIMM support up to 32GB of memory capacity and 1.2 Voltage. The memory frequency supports 2666 MHz. Only Non-ECC memory is supported. (Core i3, Pentium, Celeron CPU support 2400 MHz only) Please check the pin number to match the socket side well before installing memory module. -
Page 12: Jumper Location And Reference
LV-67X User’s Manual 2.3 <Jumper Location and Reference> JVLCD JCSEL2 JCSEL1 JCSEL4 JCSEL3 CN_SMBUS JMSATA JVSATA3-1 JRTC JFRNT JVUSB 2.3.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard 2 MSATA Setting... -
Page 13: Clear Cmos And Power On Type Selection
LV-67X User’s Manual 2.3.2 <Clear CMOS and Power on type selection> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 14: Ethernet Interface
LV-67X User’s Manual 2.4.2 <Ethernet interface> The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates, with IEEE802.3 compliance and Wake-On-LAN supported. I219-LM I210-AT 2.4.3 <Display interface>... - Page 15 LV-67X User’s Manual CN_INV CN_CRT CN_LVDS JVLCD CN_CRT: VGA 16-pin connector (Pitch 2.00 mm) Signal Signal IOGND1 IOGND1 IOGND1 IOGND1 IOGND1 5VCDA 5HSYNC 5VSYNC 5VCLK CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD...
- Page 16 LV-67X User’s Manual A_LVDS_1- B_LVDS_1- A_LVDS_1+ B_LVDS_1+ A_LVDS_2- B_LVDS_2- A_LVDS_2+ B_LVDS_2+ A_LVDS_CLK- B_LVDS_3- A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3- B_LVDS_CLK- A_LVDS_3+ B_LVDS_CLK+ LVDS_DDCSCL LVDS_DDCSDA Pin4 only need to be connected to GND CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight...
-
Page 17: Serial Port Interface
LV-67X User’s Manual 2.4.4 <Serial Port interface> COM2 COM1 JCSEL1 CN_COM5/6 CN_COM3/4 JCSEL2 JCSEL3 JCSEL4 JCSEL2 -16-... - Page 18 LV-67X User’s Manual COM1: RS232/422/485 DB9 connector Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP1 Note: Use JCSEL2 and JCSEL4 select communication mode COM2: RS232/422/485 DB9 connector Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+...
- Page 19 LV-67X User’s Manual COM5/6: COM 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 JP1, JP2: COM1, COM2 pin-9 setting Jumper settings Function RI (Default) Effective patterns of connection: 1-2 / 3-4 / 5-6 Other may cause damage JCSEL1 / 3, JCSEL 2/ 4: For configure COM2 &COM1 communication mode...
-
Page 20: Usb Interface
LV-67X User’s Manual 2.4.5 <USB interface> USB3.1 USB3.1 (LEFT) (RIGHT) CN_USB2-1 CN_USB2-2 JVUSB CN_USB3-1 CN_USB 2-1/2-2: USB2.0 10-pin header (Pitch 2.54 mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ -19-... - Page 21 LV-67X User’s Manual CN_USB3-1 USB3.1 20-pin header (Pitch 2.00 mm) Description Description (5V_SB/ 5V) USB3.1_RX0- (5V_SB/ 5V) USB3.1_RX0+ USB3.1_RX1- Ground USB3.1_RX1+ USB3.1_TX0- Ground USB3.1_TX0+ USB3.1_TX1- Ground USB3.1_TX1+ Data0- Ground Data0+ Data1- Data1+ JVUSB: 6-pin Power select jumper Description 1-3 & 2-4 5V_SB (Default) 3-5 &...
-
Page 22: Audio Interface
LV-67X User’s Manual 2.4.6 <Audio interface> Rear Audio Jack Line in Line out Mic in CN_AUDIO CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT -21-... -
Page 23: Expansion Slot
LV-67X User’s Manual 2.4.7 <Expansion slot> MINI_CARD1 JMSATA PCI_E16X SIMM MINI_CARD2 MINI_CARD1 and MINI_CARD2 have some special design to compatible our mini-PCIe card. (ex: MPX-574D2, MPX-210D2 etc) MINI_CARD2 support mSATA by JMSATA, and connect SIM card with 3G module. JMSATA: Setting MINI_CARD2 to support PCIe/mSATA... -
Page 24: Front Panel Switch And Indicator
LV-67X User’s Manual 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal HDD_LED+ Power_LED+ HDD_LED- Reset+ Power_LED- Reset- Speaker+ Power_ON+ Power_ON- Speaker- -23-... -
Page 25: Gpio And Other Interface
LV-67X User’s Manual 2.4.9 <GPIO and Other interface> CN_DIO CPUFAN CN_SMBUS CN_LPC CN_PS2 SYSFAN -24-... - Page 26 LV-67X User’s Manual When using GPIO function Press Delete to enter BIOS Setup menu On Front Page screen, click Setup Utility On Advenced screen, click SIO NCT6116D,then click GPIO 4 Configuration Internal Resistance: Select output type, Push pull or Open drain...
- Page 27 LV-67X User’s Manual CN_DIO: GPIO 12-pin header (Pitch 2.00mm) Signal Signal GP40 GP44 GP41 GP45 GP42 GP46 GP43 GP47 CN_LPC: LPC 12-pin header (Pitch 2.00mm) Signal Signal -LFRAME LAD3 LAD2 LAD1 LAD0 3.3V SERIRQ 3.3VSB CN_PS2: PS/2 10-pin header (Pitch 2.54mm)
-
Page 28: Power Supply
LV-67X User’s Manual 2.5 <Power supply> 2.5.1 <Power input> CN_12V CN_12V: ATX12V 4-pin connector Signal Signal ATX: main power 24-pin connector (As input) Signal Signal 3.3V 3.3V 3.3V -PSON Power_OK 5VSB 3.3V -27-... -
Page 29: Appendix A
LV-67X User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Insyde BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: H2OFFT The tool’s file name is “H2OFFTCFL.exe”, it’s the utility that can write the data into the BIOS flash chip and update the BIOS. -
Page 30: Appendix B
LV-67X User’s Manual Appendix B <LCD Panel Type select> According your panel, it need to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM modol. Find the setting from Front Page->... - Page 31 LV-67X User’s Manual Advanced SA configurationGraphics confuguration LCD controlLCD Panel Type There are 16 resolutions in LCD Panel Type. (For Dual boot and Legacy boot) -30-...
-
Page 32: Appendix C
LV-67X User’s Manual Appendix C <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period.The integrated watchdog timer can be setup as system reset mode by program.You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection. - Page 33 LV-67X User’s Manual Timeout value range 1 to 255 Minute and Second Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device...
-
Page 34: Appendix D
LV-67X User’s Manual Appendix D <Hardware Monitor> Find the setting from AdvancedSIO NCT6116DHardware Monitor -33-... -
Page 35: Appendix E
LV-67X User’s Manual Appendix E <Programmable GPIO> The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. GPIO -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 07 ;select Logical Device -o 4E 30 -o 4F 10 ;activate GPIO function (The board use GPIO4) -
Page 36: Appendix F
LV-67X User’s Manual Appendix F <RAID Setting> When use RAID function, it need to enter the BIOS set RAID mode first. Advanced PCH-IO Configuration SATA and RST Configuration SATA Mode Selection At boot time, press <CTRL + I> to enter the RAID configuration menu. -
Page 37: Appendix G
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -36-...
