Bill of Materials, Layout, and Schematic

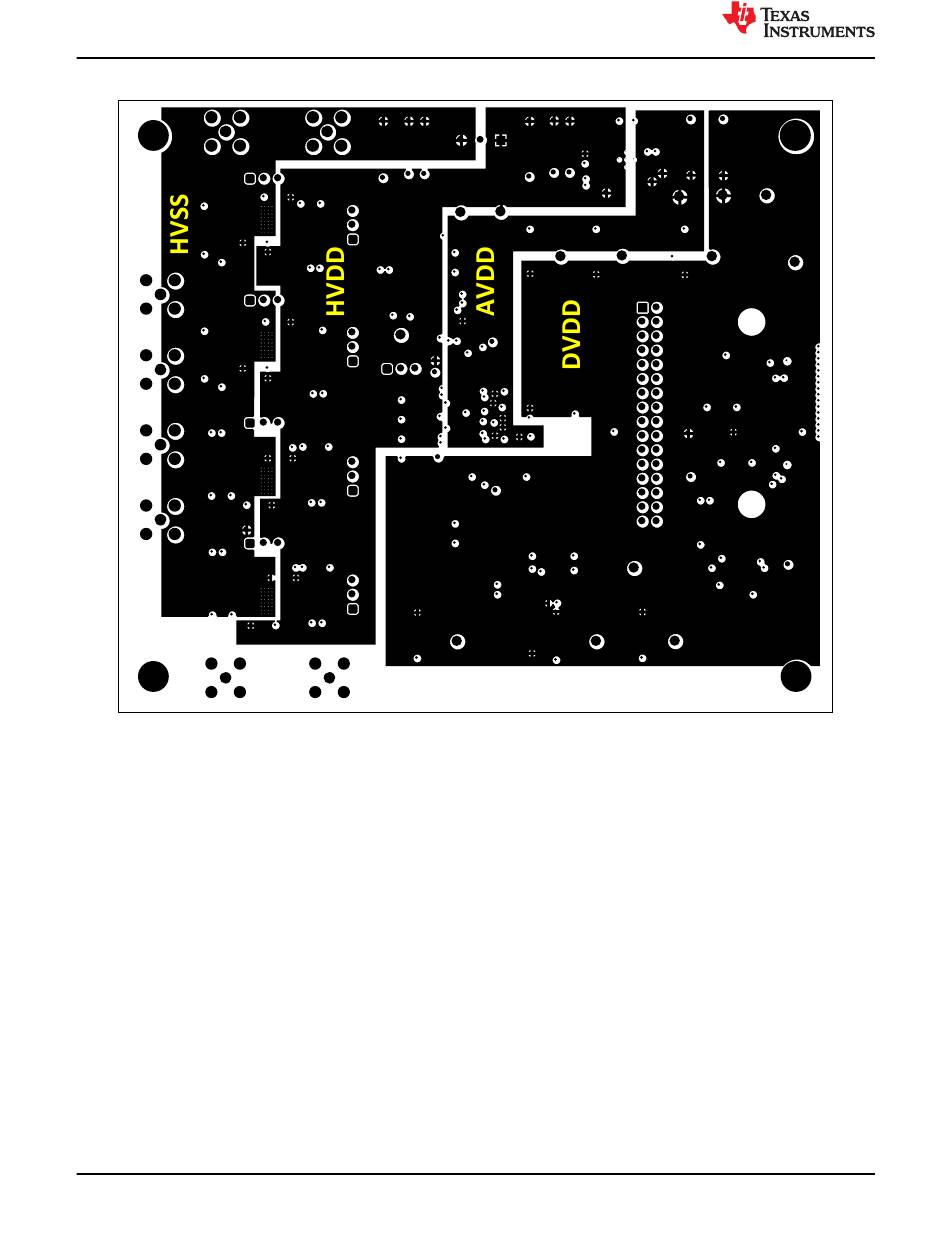

Inner Power Layer
shows all power supply connections (AVDD, DVDD, HVDD, and HVSS).
Inner Ground Layer
shows the internal ground layer. All GND connections are to this layer using vias.
24
ADS8568EVM-PDK Evaluation Module
Figure A-2. Inner Power Layer
Copyright © 2021 Texas Instruments Incorporated
www.ti.com
SBAU193E – JUNE 2011 – REVISED MAY 2021
Submit Document Feedback
