www.ti.com
A.2 Layout
Top and Bottom Layer ADS8568EVM
SBAU193E – JUNE 2011 – REVISED MAY 2021
Submit Document Feedback
shows the top and bottom layers. All signals are on top and bottom.
TOP

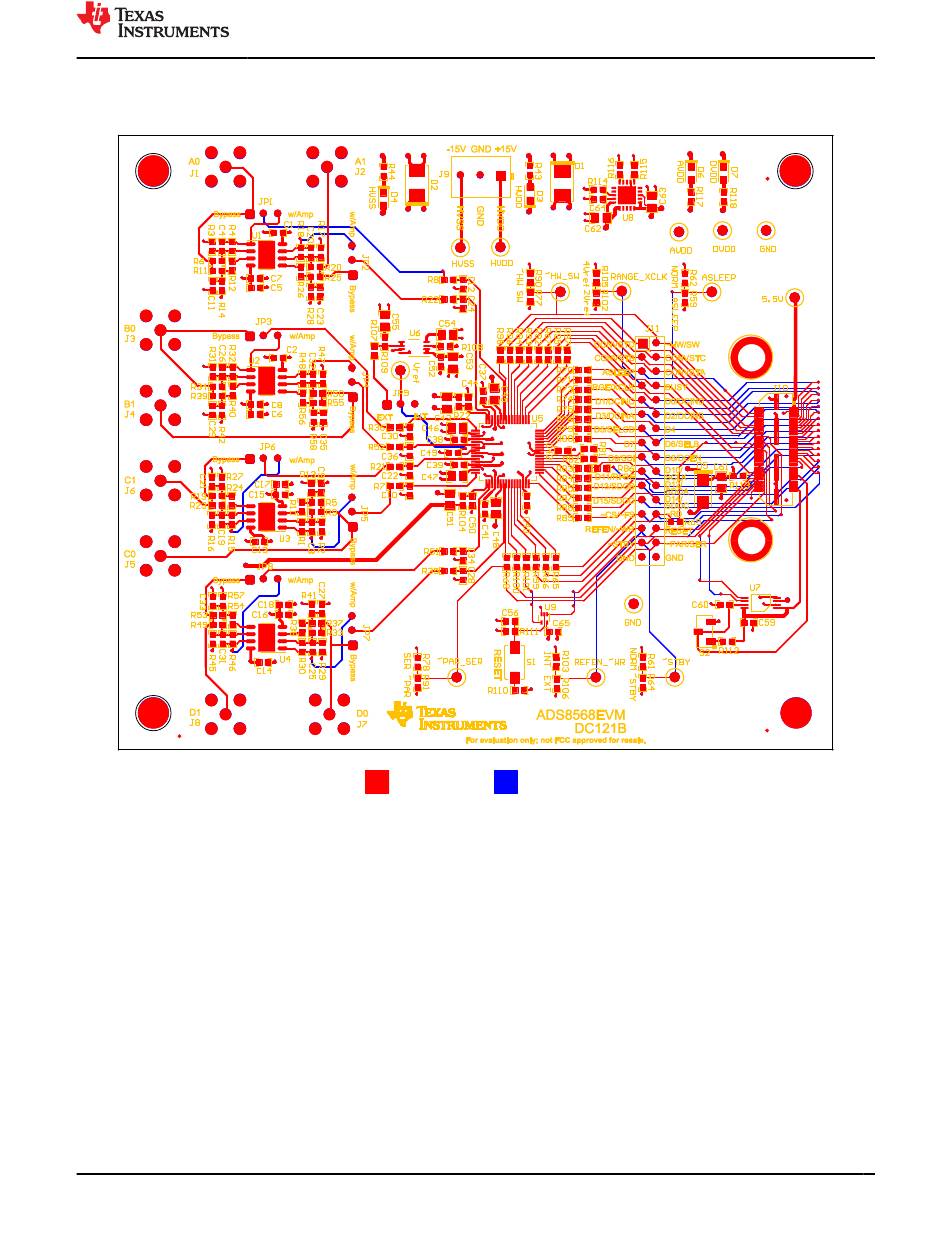

Figure A-1. Top and Bottom Layer ADS8568EVM
Copyright © 2021 Texas Instruments Incorporated
Bill of Materials, Layout, and Schematic
BOTTOM
ADS8568EVM-PDK Evaluation Module
23
