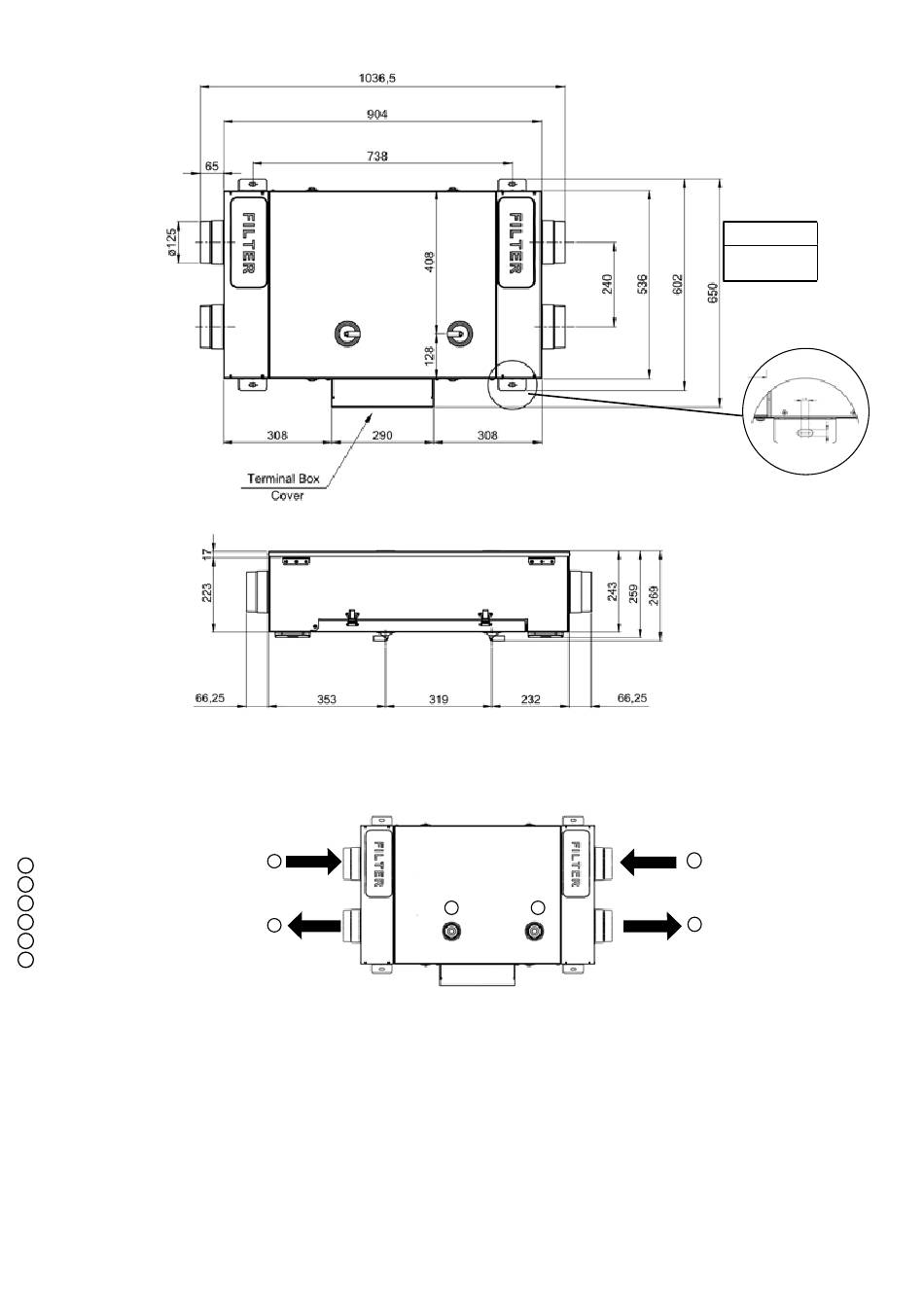

3.2 Dimensions (mm) and Weight

3.3 Connections

Fig. 3.a Connections
Intake air from outiside
A
Exhaust air to outside
B
Supply air to inside
C
Extract air from inside
D
Winter condensation drainage
E
Summer condensation drainage
F

3.4 Space required

Make sure that enough space is left around the unit to allow easy maintenance (access to filters, terminal box and inspection
panel removal).
A
INTAKE
B
EXHAUST
filter side view
E F
Weight Kg
20
10
D
EXTRACT
C
SUPPLY
9
3
