G

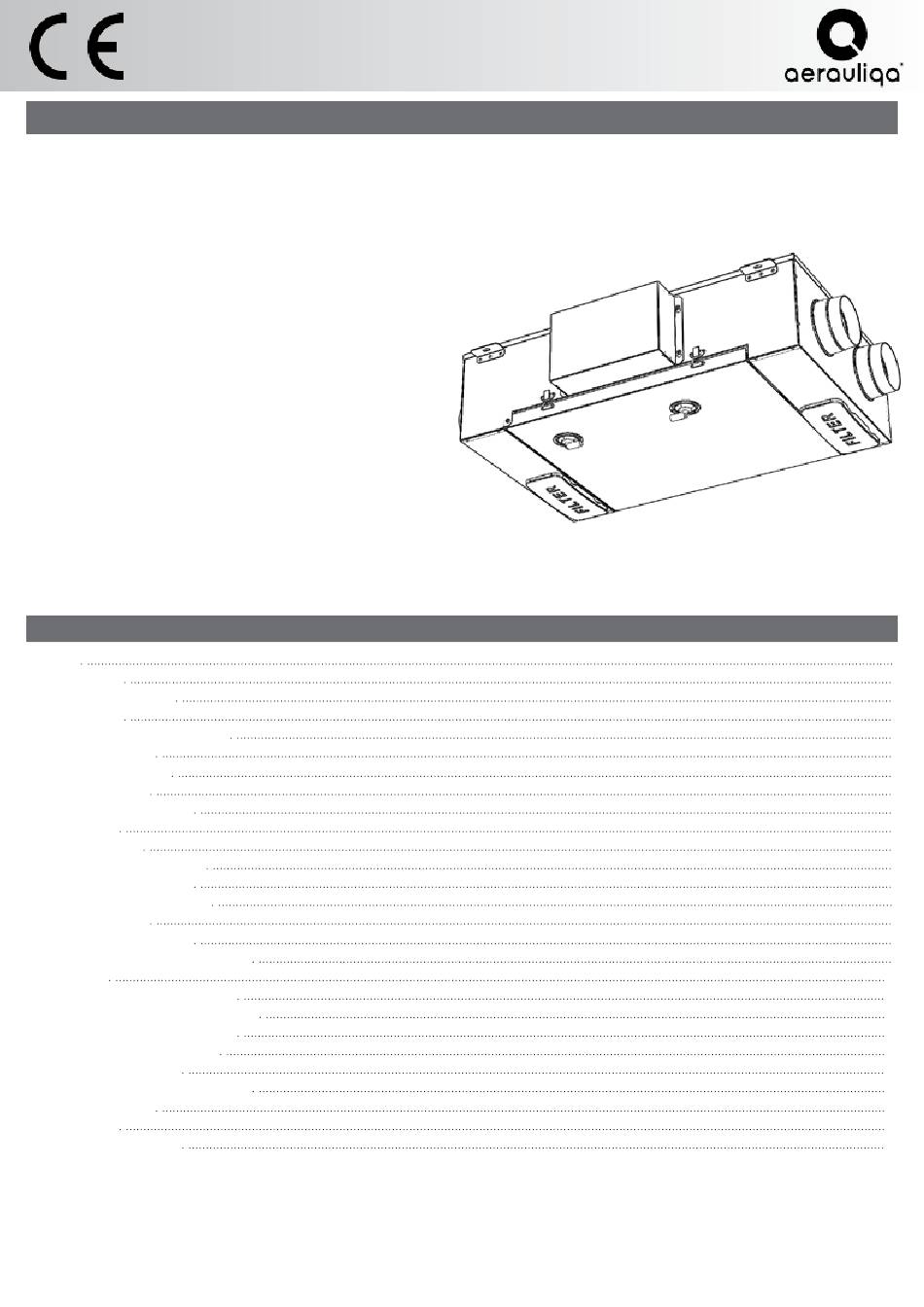

Installation Manual (installer & user)
QR180ABP - Heat Recovery Ventilation Unit
Read this manual carefully before using the product and
keep it in a safe place for reference as necessary.
This product was constructed up to standard and in
compliance with regulations relating to electrical equipment
and must be installed by technically qualified personnel.
The manufacturer assumes no responsibility for damage
to persons or property resulting from failure to observe the
instructions contained in this manual.
1 INDEX
1 Index
6.2 Before Starting the System
7.2 Installer Menu on CTRL-DSP
1
2
2
2
3
3
3
4
4
4
4
4
5
6
7
7
8
9
10
11
15
15
15
16
16
17
18
1
