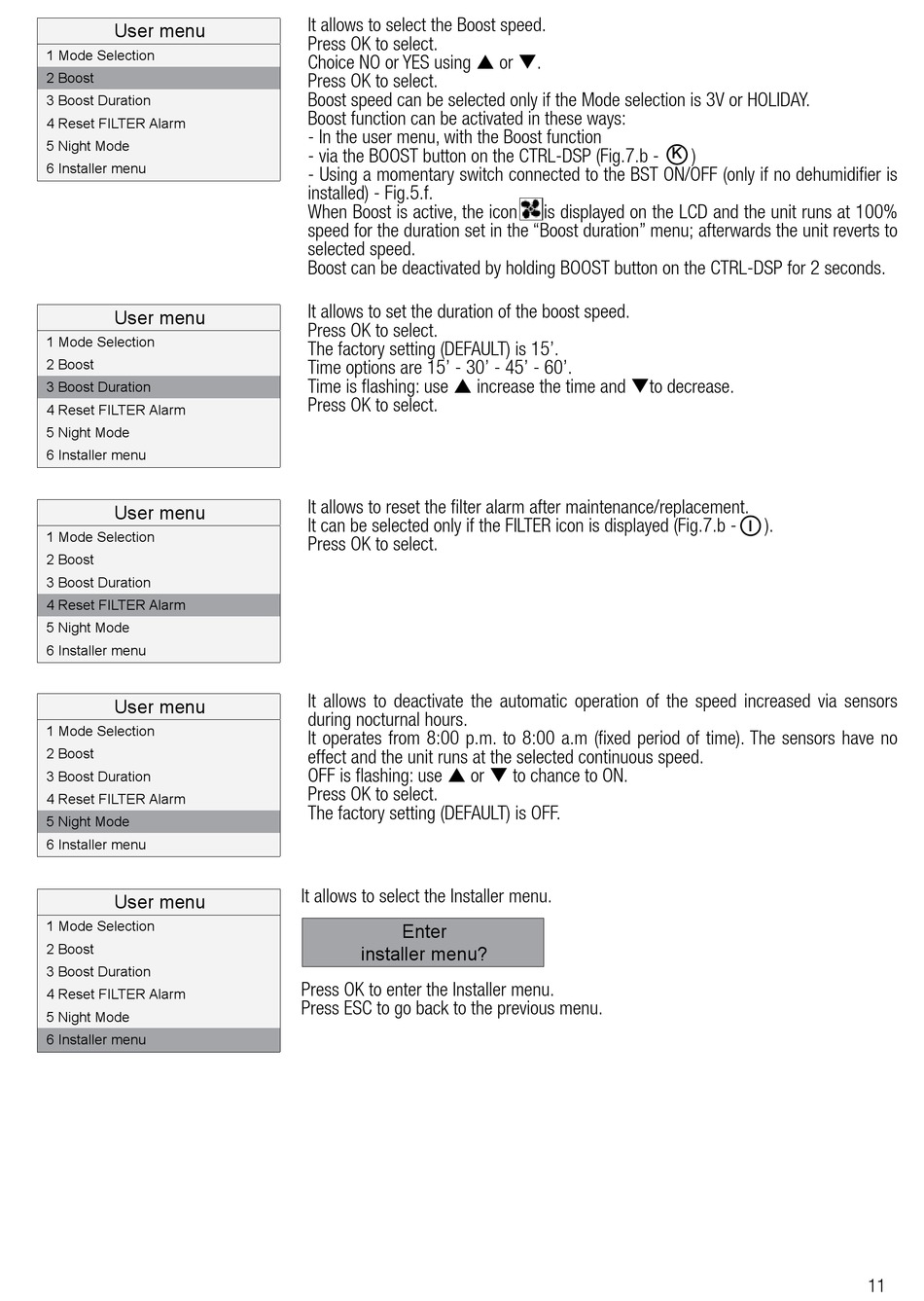

aerauliqa QR180ABP Installation Manual page 11

User menu
1 Mode Selection
2 Boost
3 Boost Duration
4 Reset FILTER Alarm
5 Night Mode
6 Installer menu
User menu
1 Mode Selection
2 Boost
3 Boost Duration
4 Reset FILTER Alarm
5 Night Mode
6 Installer menu
User menu
1 Mode Selection
2 Boost
3 Boost Duration
4 Reset FILTER Alarm
5 Night Mode
6 Installer menu
User menu
1 Mode Selection
2 Boost
3 Boost Duration
4 Reset FILTER Alarm
5 Night Mode
6 Installer menu
User menu
1 Mode Selection
2 Boost
3 Boost Duration
4 Reset FILTER Alarm
5 Night Mode
6 Installer menu
It allows to select the Boost speed.
Press OK to select.
Choice NO or YES using  or .
Press OK to select.
Boost speed can be selected only if the Mode selection is 3V or HOLIDAY.
Boost function can be activated in these ways:
- In the user menu, with the Boost function
- via the BOOST button on the CTRL-DSP (Fig.7.b - )
- Using a momentary switch connected to the BST ON/OFF (only if no dehumidifier is
installed) - Fig.5.f.
When Boost is active, the icon
speed for the duration set in the "Boost duration" menu; afterwards the unit reverts to
selected speed.
Boost can be deactivated by holding BOOST button on the CTRL-DSP for 2 seconds.
It allows to set the duration of the boost speed.
Press OK to select.
The factory setting (DEFAULT) is 15'.
Time options are 15' - 30' - 45' - 60'.
Time is flashing: use  increase the time and to decrease.
Press OK to select.
It allows to reset the filter alarm after maintenance/replacement.
It can be selected only if the FILTER icon is displayed (Fig.7.b - ).
Press OK to select.
It allows to deactivate the automatic operation of the speed increased via sensors
during nocturnal hours.
It operates from 8:00 p.m. to 8:00 a.m (fixed period of time). The sensors have no
effect and the unit runs at the selected continuous speed.
OFF is flashing: use  or  to chance to ON.
Press OK to select.
The factory setting (DEFAULT) is OFF.
It allows to select the Installer menu.
Enter
installer menu?
Press OK to enter the Installer menu.
Press ESC to go back to the previous menu.
K
is displayed on the LCD and the unit runs at 100%
I
11
