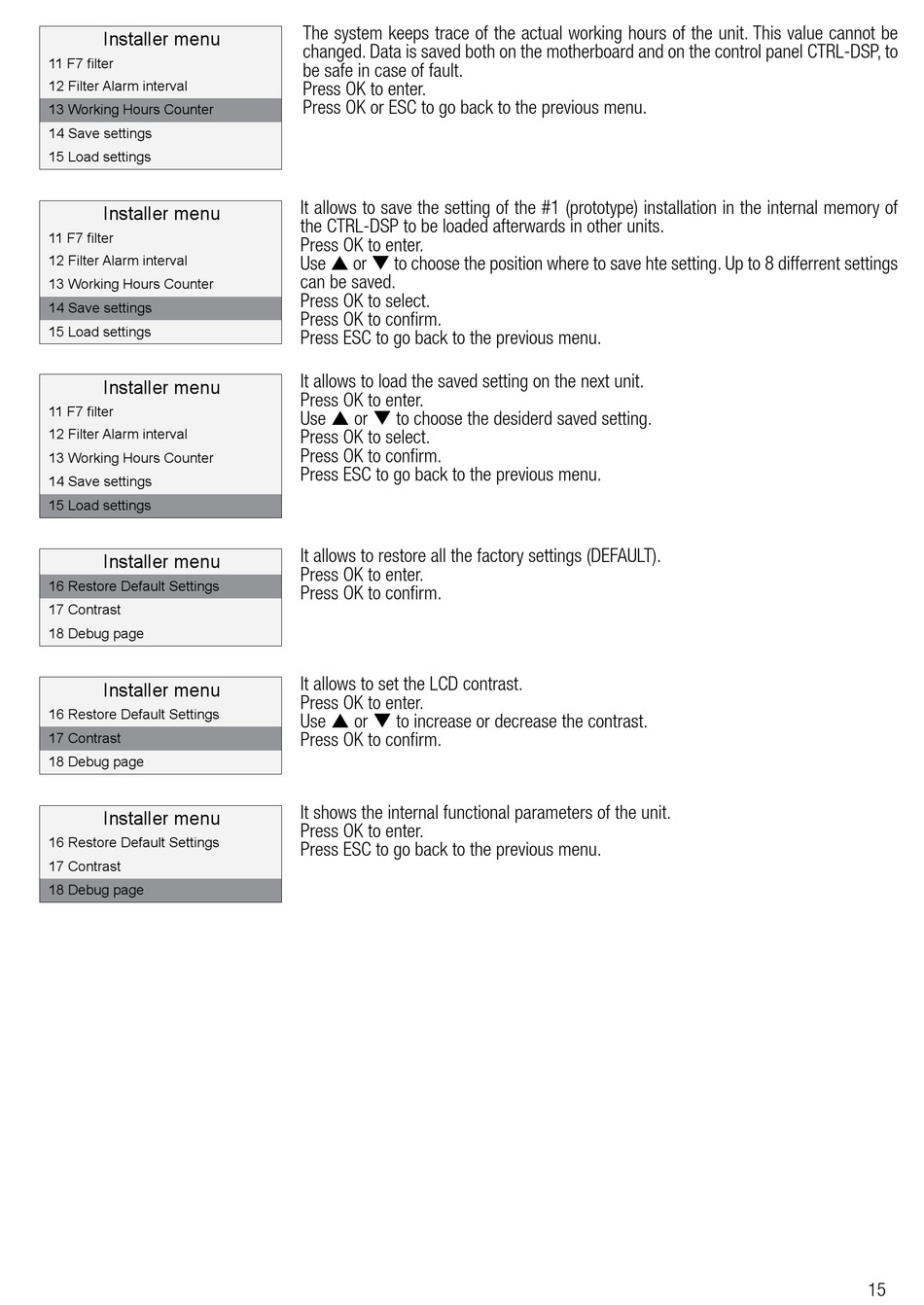

aerauliqa QR180ABP Installation Manual page 15

Installer menu
11 F7 filter
12 Filter Alarm interval
13 Working Hours Counter
14 Save settings
15 Load settings
Installer menu
11 F7 filter
12 Filter Alarm interval
13 Working Hours Counter
14 Save settings
15 Load settings
Installer menu
11 F7 filter
12 Filter Alarm interval
13 Working Hours Counter
14 Save settings
15 Load settings
Installer menu
16 Restore Default Settings
17 Contrast
18 Debug page
Installer menu
16 Restore Default Settings
17 Contrast
18 Debug page
Installer menu
16 Restore Default Settings
17 Contrast
18 Debug page
The system keeps trace of the actual working hours of the unit. This value cannot be
changed. Data is saved both on the motherboard and on the control panel CTRL-DSP, to
be safe in case of fault.
Press OK to enter.
Press OK or ESC to go back to the previous menu.
It allows to save the setting of the #1 (prototype) installation in the internal memory of
the CTRL-DSP to be loaded afterwards in other units.
Press OK to enter.
Use  or  to choose the position where to save hte setting. Up to 8 differrent settings
can be saved.
Press OK to select.
Press OK to confirm.
Press ESC to go back to the previous menu.
It allows to load the saved setting on the next unit.
Press OK to enter.
Use  or  to choose the desiderd saved setting.
Press OK to select.
Press OK to confirm.
Press ESC to go back to the previous menu.
It allows to restore all the factory settings (DEFAULT).
Press OK to enter.
Press OK to confirm.
It allows to set the LCD contrast.
Press OK to enter.
Use  or  to increase or decrease the contrast.
Press OK to confirm.
It shows the internal functional parameters of the unit.
Press OK to enter.
Press ESC to go back to the previous menu.
15
