G
Installation Manual (installer & user)

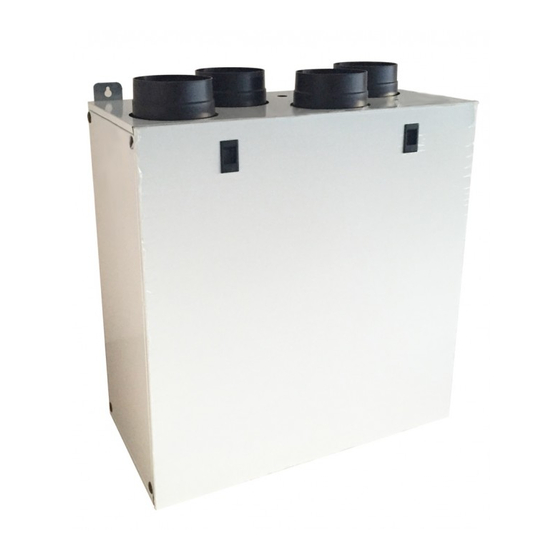

QR350ABP - Heat Recovery Ventilation Unit
Read this manual carefully before using the product and keep it in a safe
place for reference as necessary.
This product was constructed up to standard and in compliance with egulations
relating to electrical equipment and must be installed by technically qualified
personnel.
The manufacturer assumes no responsibility for damage to persons or
property resulting from failure to observe the instructions contained in this
manual.
1 INDEX
1
2
2
2
3
3
4
4
4
4
4
4
5
7
8
8
9
10
11
13
16
17
17
17
18
19
20
21
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for aerauliqa QR350ABP
Summary of Contents for aerauliqa QR350ABP
-
Page 1: Table Of Contents
Installation Manual (installer & user) QR350ABP - Heat Recovery Ventilation Unit Read this manual carefully before using the product and keep it in a safe place for reference as necessary. This product was constructed up to standard and in compliance with egulations relating to electrical equipment and must be installed by technically qualified personnel. -
Page 2: Precautions
The key to proper, safe and smooth operation of the unit is to read this manual thoroughly, use the unit according to given guidelines and follow all safety requirements. The QR350ABP is supplied with its CTRL-DSP remote multifunction control panel as standard. The package also includes 2 condensation elbows and 2 plugs for the water drainage. -
Page 3: Dimensions And Weight
3.2 Dimensions (mm) and Weight Weight Kg 3.3 Connections LEFT Connections from and to outside are set on the left side of the unit front view DEFAULT RIGHT Connections from and to outside are set on the right side of the unit front view The factory setting is LEFT. -
Page 4: Space Required
Fig. 3.b Connections in RIGHT orientation Intake air from outside Exhaust air to outside Supply air to inside Extract air from inside Winter condensation drainage Summer condensation drainage To set the RIGHT orientation of the machine: • Modify the orientation on the CTRL-DSP (point 7.2 - Installer menu: 3 Machine Orientation). • Replace the ducting connection label on the top of the casing and the water drainage label on the bottom of the casing with those supplied with this installation manual. 3.4 Space required Make sure that enough space is left around the unit to allow easy maintenance (access to filters, terminal box and removal of the side and front inspection panels). -
Page 5: Installation
• When choosing the location it should be kept in mind that the unit requires maintenance regularly and that the inspection doors should be easily accessible. • Leave free space for opening the removable panels and for removal of the main components (see 3.4). • The outdoor air grilles if possible be put in the northern or eastern side of the building and away from other exhaust outlets like kitchen fan exhausts or laundry room outlets. - Page 6 Ø125mm Ø125mm Fig. 5.h Fig. 5.i 5.a Prepare the surface where the unit is to be mounted. Make sure that the surface is flat, leveled and that it supports the weight of the unit. Perform the installation in accordance with local rules and regulations. 5.b Drill the holes in the wall. 5.d.e Hang the unit to the wall by means of the fixing brackets and screw safely (screws and wall plugs not supplied). 5.f Make sure that the unit is at spirit level. 5.g Connect the supplied condensation elbow(s) to the drainage hole(s) in the opening at the bottom of the unit: in case close and seal the non-used hole with the 2 supplied plugs (one each side of the hole). Make sure of water and air tightness of all connections. It is necessary to use a U-bend (or similar) in the condensation drainage pipe. The water drainage connections can be made either through the holes at the bottom side of the casing or through the opening at the rear side of the casing.
-
Page 7: Electric Connections
The installation and service of the unit and complete ventilation system must be performed by an authorized installer and in accordance with local rules and regulations. The unit must be earthed. The QR350ABP is wired internally from factory. To connect the the CTRL-DSP to the mother board use a 4pole twisted-pair cable: max length 30m. Figures below show the wiring diagram. -
Page 8: Commissioning
6 commIssIoNINg 6.1 Setting Fan speed The speed of the unit can be adjusted during installation according to required ventilation rate. Figure 6.a below shows performance curves (for supply air and extract air) at different settings of the 0-10V signal to the motors. Consumption refers to the 2 motors. Table 6.b indicates the efficiency of the heat exchanger and of the condensation produced in different climatic conditions, to help the installer or the designer of the ventilation system to decide if to connect one or both condensation drainages. High production of condensation is the direct consequence of a high efficiency level as well as of the humidity rate. -
Page 9: Before Starting The System
Lw dB - SOUND POWER OCTAVE BAND Lp dB(A) 100% Intake Supply Extract Exhaust Breakout Lw dB - SOUND POWER OCTAVE BAND Lp dB(A) Intake Supply Extract Exhaust Breakout Lp dB(A) Lw dB - SOUND POWER OCTAVE BAND Intake Supply Extract Exhaust Breakout... -
Page 10: Operation
7 oPEratIoN WARNING Make sure that specific warnings and cautions in Chapter 2 “Precautions” are carefully read, understood and applied! Fig. 7.a Temperature probes in LEFT orientation Intake air from outside Exhaust air to outside Supply air to inside Extract air from inside In case of RIGHT orientation, follows instructions as per point 3.3 - Fig. -
Page 11: User Menu On Ctrl-Dsp
When powered on, the CTRL-DSP displays as follows: Fig. 7.c CTRL-DSP operation screen 7.1 User Menu on CTRL-DSP To enter the user menu press OK or ESC. To exit the user menu press ESC or wait for about 60 seconds. Use or to select the menu. User menu Press OK to enter. - Page 12 It allows to select the Boost speed. User menu Press OK to select. 1 Mode Selection Choice NO or YES using or . 2 Boost Press OK to select. Boost speed can be selected only if the Mode selection is 3V or HOLIDAY. 3 Boost Duration Boost function can be activated in these ways: 4 Reset FILTER Alarm...
-
Page 13: Installer Menu On Ctrl-Dsp
7.2 Installer Menu on CTRL-DSP The Installer menu can be selected either by selecting point 6) in the User menu or by holding OK+ESC for about 7 seconds. To exit the installer menu press ESC or wait for about 60 seconds. Use or to select the menu. Installer menu NOTE: 1 Language Menu 6 “Heating Threshold” displays only if Menu 5 “Heating” is set on PRE or POST. 2 Date/Time 3 Machine orientation 4 Bypass settings... - Page 14 It allows to set the Bypass operation parameters Installer menu Press OK to enter. 1 Language Use or to choose “Desired Temperature”, “Tmax Free Heating”, “Tmin Free 2 Date/Time Cooling” For definitions see “Bypass” (paragraph 7.3) 3 Machine orientation Press OK to select. 4 Bypass settings 5 Heating The setting ranges are:...
- Page 15 It allows to adjust the various speeds. Installer menu Press OK to enter. 6 Heating Threshold Use or to choose speed 1, speed 2, speed 3 or Holiday. 7 Dehumidification Press OK to select. 8 Speed Setting The setting ranges are: 9 Airflow Balancing speed 1: 10% ÷ 80% 10 F7 filter speed 2: 20% ÷ 90% speed 3: 60% ÷ 100% Holiday: 10% ÷ 40%...
-
Page 16: Additional Functionalities
BYPASS The QR350ABP is equipped with a physical bypass which allows to mitigate the heat exchange when the indoor and outdoor temperature combinations are such that the heat exchange is not recommended. In this case the Bypass icon is activated on the LCD. -
Page 17: Maintenance And Service
8 maINtENaNcE aND sErvIcE WARNING Make sure that specific warnings and cautions in Chapter 2 “Precautions” are carefully read, understood and applied! Maintenance can be carried out by the user. Service must be performed only by an authorized installer and in accordance with local rules and regulations. Questions regarding installation, use, maintenance and service of the unit should be answered by your installer or place of purchase! 8.1 Components list... -
Page 18: Maintenance
8.3 Maintenance WARNING Make sure that the mains supply to the unit is disconnected before performing any installation, service, maintenance or electrical work! • Keep the unit surface free from dust. • Clean the filters with a vacuum cleaner following the below illustrations (fig.8 b-c-d-e-f-g) when the FILTER signal is displayed on LCD. Their maintenance may differ per situation depending on the internal and external environmental conditions. • Press FILTER button (Fig.7.b - ) to reset the Filter Alarm. -
Page 19: Service
8.4 Service WARNING Make sure that the mains supply to the unit is disconnected before performing any installation, service, maintenance or electrical work! WARNING The installation and service of the unit and complete ventilation system must be performed by an authorized installer and in accordance with local rules and regulations. -
Page 20: Trouble Shooting
Fig. 8.q Fig. 8.r Fig. 8.s Fig. 8.t 8.5 Trouble shooting Fans do not start 1. Check that main supply gets to the unit. 2. Check that all connections are working (all connections in terminal box and fast couplings of intake and exhaust air fans). Reduced airflow 1. Check setting of fan speed on the CTRL-DSP (controller supplied) 2. Check filters. Change of filters required? 3. Check diffusers. Re-setting or cleaning of grilles and diffusers required? 4. -
Page 21: Disposal And Recycling
DIsPosal aND rEcYclINg Information on disposal of units at the end of life. This product complies with EU Directive 2002/96/EC. The symbol of the crossed-out dustbin indicates that this product must be collected separately from other waste at the end of its life. The user must, therefore, dispose of the product in question at suitable electronic and electro-technical waste disposal collection centres, or else send the product back to the retailer when purchasing a new, equivalent type device. - Page 22 ErP Directive - regulations 1253/2014 - 1254/2014 AERAULIQA Mark QR350ABP Model SEC class SEC warm climates kWh/m2.a -7,3 -2,1 SEC average climates kWh/m2.a -36,9 -30,5 -24,7 kWh/m2.a SEC cold climates -74,1 -66,3 -59,6 Energy label Unit typology Residential - bidirectional...
- Page 23 NOTE...
- Page 24 Warehouse-Offices: via Mario Calderara 39/41, 25018 Montichiari (Bs) - Registered office: via Corsica 10, 25125 Brescia C.F. e P.IVA/VAT 03369930981 - REA BS-528635 - Tel: +39 030 674681 - Fax: +39 030 6872149 - www.aerauliqa.com - info@aerauliqa.it AERAULIQA SRL reserves the right to modify/make improvements to products and/or this instruction manual at any time and without prior notice. 001240 - 04 - 0119...
