7.3 Additional functionalities

SLAVE MODE
In case the SLAVE jumper (Fig.5.f - JP2) is short-circuited before powering the unit, the unit works in SLAVE MODE; the operating
speed is determined by the 1-10V signal received at the SLAVE input. All the operating logics described in the Mode selection
are ignored (paragraph 7.1).
FREE COOLING
The parameters "Desired Temperature", "Tmax Free Heating", "Tmin Free Cooling" (Menu 4 Bypass settings) are to be meant as
follows:
"Desired Temperature" is the ambient temperature desired by the user
"Tmax Free Heating" is the maximum outside temperature allowed for free heating operation
"Tmin Free Cooling" is the minimum outside temperature allowed for free cooling operation.
FAULT HANDLING
Code error description (Fig.7.b - )
E000 no RS485 connection
E001 no rotation of the exhaust air fan (Fig.8.a - )
E002 no rotation of the intake air fan (Fig.8.a - )
E003 thermistor T11 broken/disconnected (Fig.7.a)
E004 thermistor T12 broken/disconnected (Fig.7.a)
E005 thermistor T21 broken/disconnected (Fig.7.a)
E006 thermistor T22 broken/disconnected (Fig.7.a)
E007 dehumidifier alarm (BST INPUT)
E008 CTRL-DSP internal error
NOTE: the controller board verifies the presence of CTRL-DSP periodically; if CTRL-DSP is absent (or faulty), the unit works in 3V
mode at speed 1 (DEFAULT condition).
ANTI-FROST
Intake Fan speed is reduced during very cold weather in order to prevent ice inside the unit which could damage the heat
exchanger.
In this case the ANTI-FROST icon

8 maINtENaNcE aND sErvIcE

Make sure that specific warnings and cautions in Chapter 2 "Precautions" are carefully read, understood and applied!
Maintenance can be carried out by the user.
Service must be performed only by an authorized installer and in accordance with local rules and regulations.
Questions regarding installation, use, maintenance and service of the unit should be answered by your installer or place of
purchase!

8.1 Components list

2
8
4
7

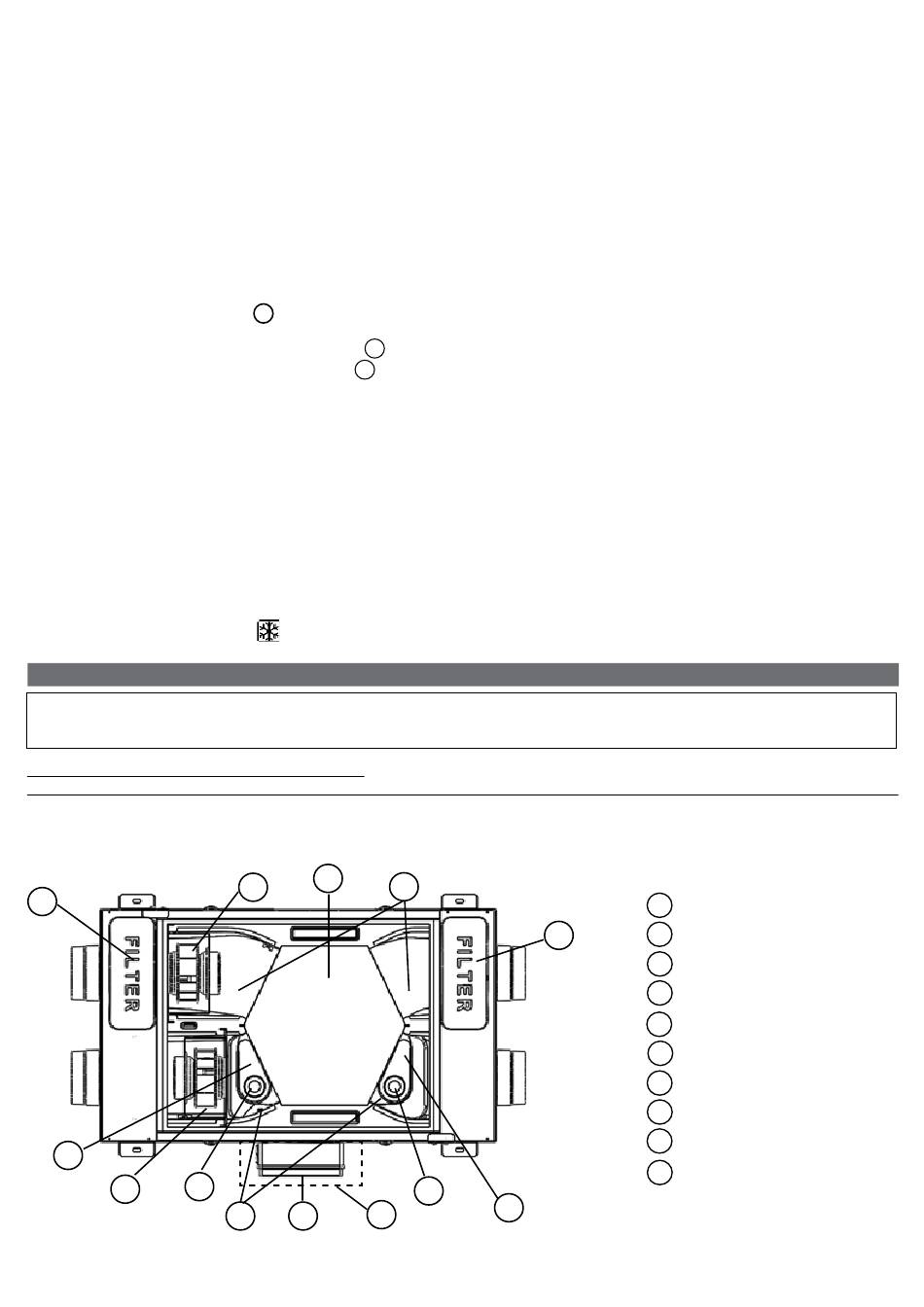

Fig. 8.a Internal components
16
R
7
6
is activated on the LCD.
3
5
6
5 9 10
WARNING
1
4
8
FILTER G4, ExTRACT AIR
1
2 FILTER G4, INTAKE AIR
3 HEAT ExCHANGER
4
CONDENSATION DRAINS
5 THERMISTOR
6
FAN, INTAKE AIR
7
FAN, ExHAUST AIR
8
CONDENSATION TRAY
9
TERMINAL BOx
10
TERMINAL BOx COVER
