Code 3 PSELEDF12 Quick Start Manual page 4

1. To program the regular operation flash pattern, depress and release the momentary switch connected to
the Yellow wire to select a different flash pattern. Repeat until the desired pattern is selected.
2. To program the Interclear flash pattern, repeat No.1 using the momentary switch connected to the orange
wire. Note: The White wire (Interclear
R
the Interclear pattern.
18 AWG GREEN
Mode
Control
18 AWG ORANGE
Interclear
Pattern
PGM
18 AWG RED
18 AWG YELLOW
Flash-Pattern
PGM
18 AWG RED
16 AWG RED
Power-In
16 AWG BLACK
18 AWG BLACK
Photocell
Input
18 AWG BROWN
NOTES:
Flash - Pattern Programming
R
R
Enable) should be connected to +12V when programming
4"
18 AWG BLUE
4"
18 AWG WHITE
4"
4"
2.25"

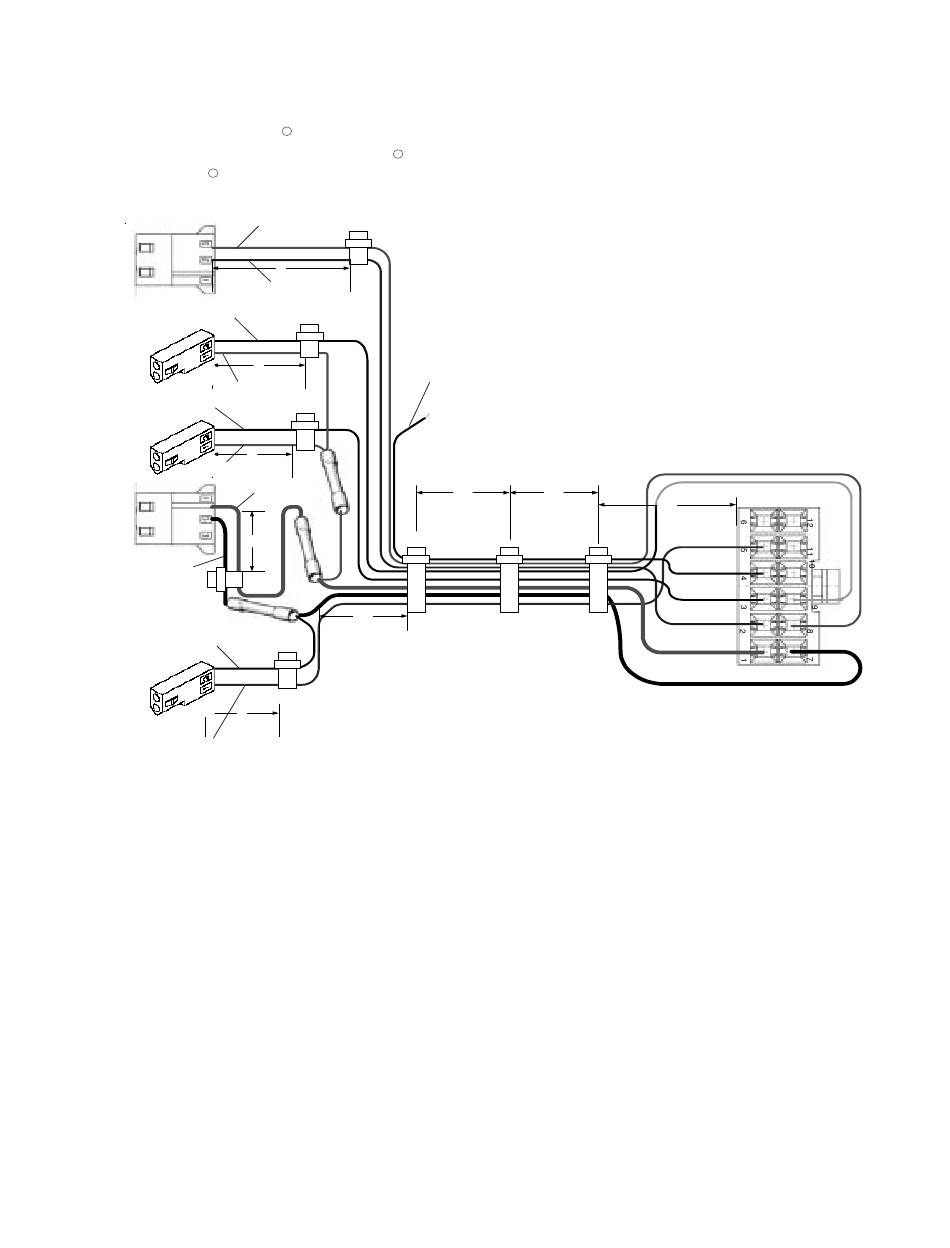

POWER / CONTROL HARNESS
4"
2.25" 2.25"
Figure5
4
2.25"
