CONNECTOR SPECIFICATION

Output
Pin Location (Output)
Pin Location (Power / Control)

INSTALLATION

1. First, install the Flasher in a protected location using
the flasher itself as a template. Make sure all
WARNING! WARNING!
WARNING! WARNING! WARNING!
connectors are easily accessible.

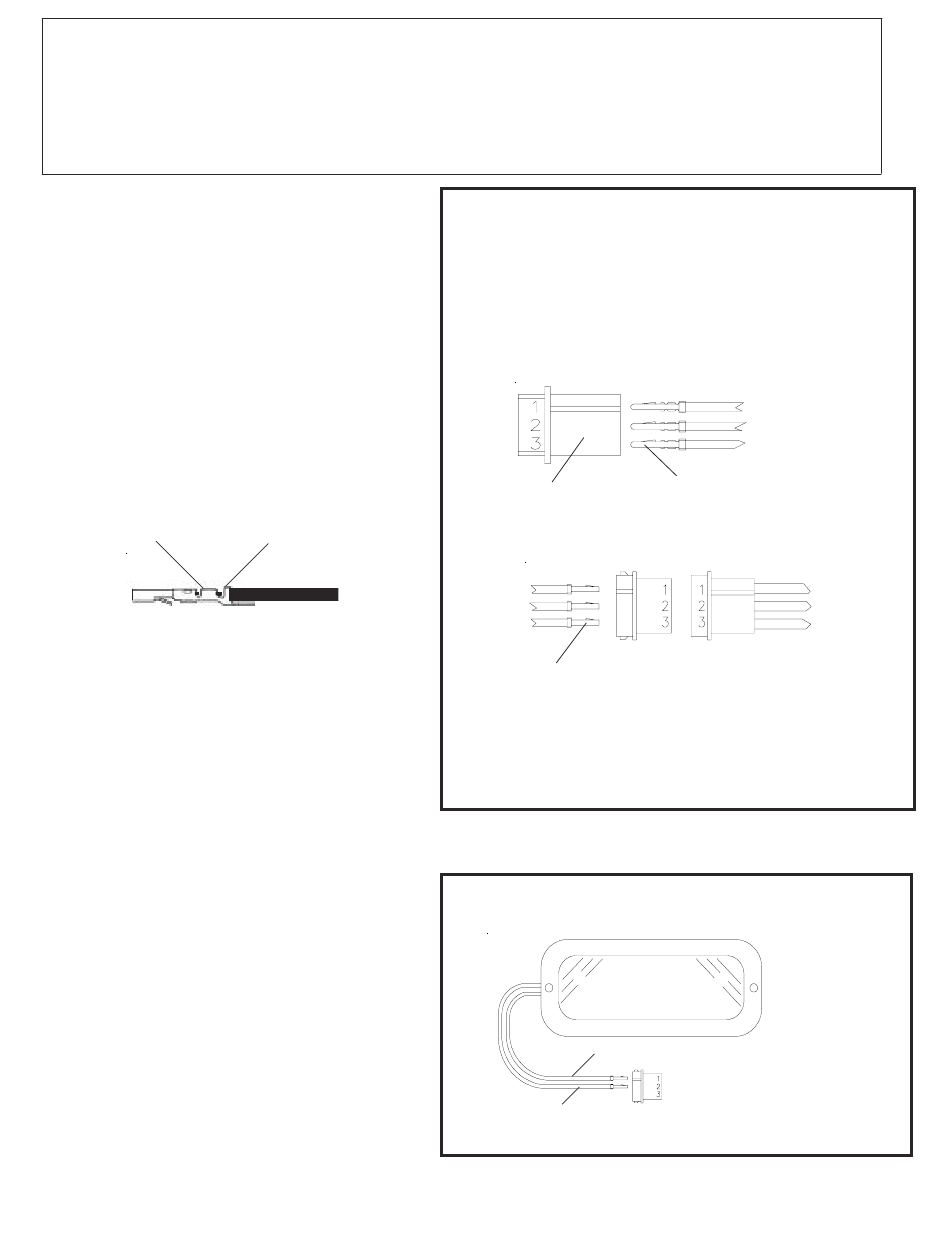

2. CODE 3 LED-EX Lighthead Termination Instructions:
a) Strip coating back from wire 1/8".
b) Crimp wire into terminal at position 'A' and
crimp wire coating at position 'B' of AMP
socket P/N 61117-4.
c) Pull on wire to ensure a quality crimp
(soldering is recommended to ensure good
connection).
d) Insert pins into AMP connector # 1-480303-0
as shown in figure 4.
A
IMPORTANT
For continued reliability, RTV or waterproofing grease
must be used on all terminals to prevent corrosion and
premature failure of the connections.
3. Install the LED light heads in the preferred locations.
4. String the 3 conductor cable between each individual
light and the Flasher. Make sure the cable is secure
along the chosen routing inside the vehicle to prevent
it from damage by chafing or binding. Be sure to keep
the cable away from engine hot spots.
5. Insert the AMP Mate & Lock pin contacts P/N 61118-4
on each end of the extension cables into the AMP
connectors P/N 1-480305-0. Each end of these cables
has a factory crimped terminal on each of the three
wires, see Figure 3.
Amp Commercial Mate-N-Lock Series
1-Red (+V), 2-Black (Ground), 3-White (Not Connected)
#1 1-Red, 2-Blue, 3-Yellow, 4-White, 5-Brown, 6-Wht/Red
7-Black, 8-Green, 9-Orange
This Product contains high intensity LED devices. To prevent eye damage,
DO NOT stare into light beam at close range.
B
EXTENSION CABLE WIRING
MALE AMP CONNECTOR
(to terminate the LED-EX
Lighthead harness)
AMP-p/n 1-480305-0
FEMALE AMP CONNECTOR
AMP-p/n 1-480303-0
from LED
Lighthead
AMP-p/n 61117-4
Insert wires with female pins into
the proper locations in the female
AMP connector:
POWER WIRE - HOLE #1
GROUND WIRE - HOLE#2
CONTROL WIRE - HOLE #3(not connected)
Remote LED Lightheads (2 wire installation)
RED
BLACK
Self Contained LED-EX Lighthead in Steady-Burn Mode
2
Insert wires with male pins into
the proper locations in the male
AMP connector:
POWER WIRE - HOLE #1
GROUND WIRE - HOLE#2
CONTROL WIRE - NOT USED
(if applicable)
Extension
Cable
AMP-p/n 61118-4
Extension
Figure3
Code 3
LED-EX
Lighthead
POWER WIRE - POSITION 1
GROUND WIRE - POSITION 2
Figure4
Cable
