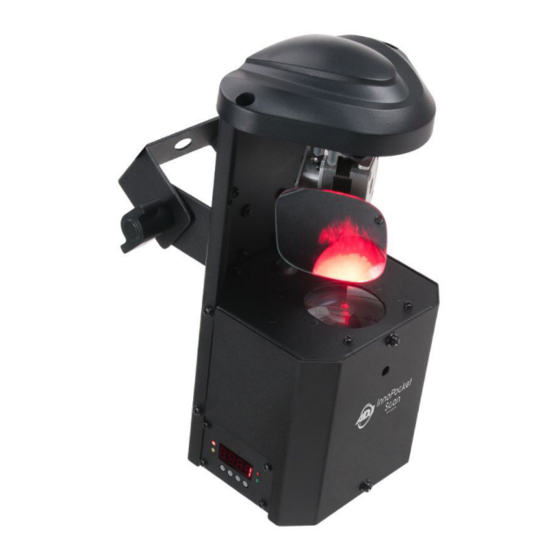

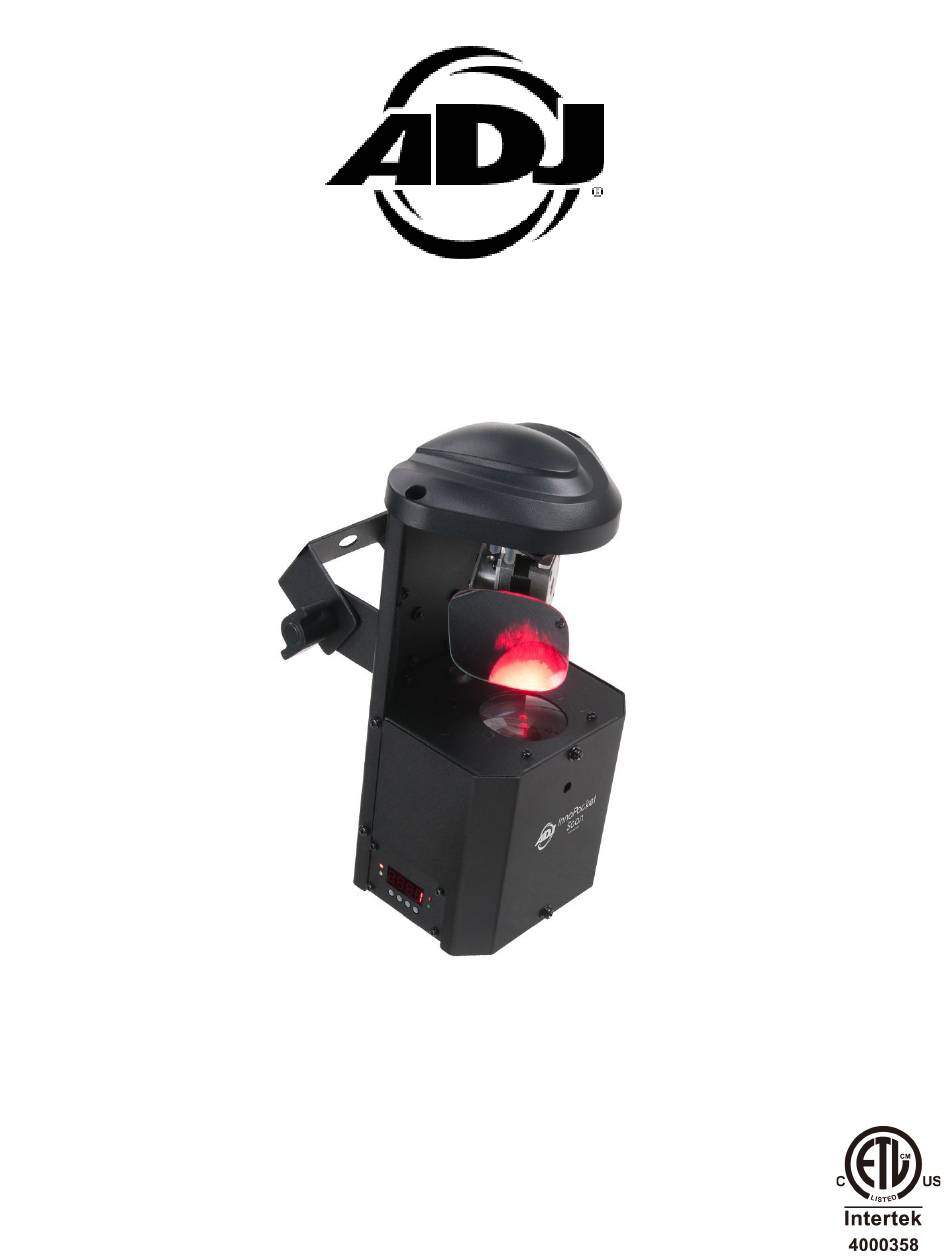

  • Page 1 INNO POCKET SCAN User Manual Rev. 02/2021...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: General Information

    6 DMX channels. The Inno Pocket Scan has three operating modes: sound active mode, show mode, and DMX control. The Inno Pocket Scan can operate as a stand alone fixture or in a Primar/Secondary configuration. For best results use fog or special effects smoke to enhance the projections.

  • Page 4: General Instructions

    Inno Pocket Scan Warranty Registration The Inno Pocket Scan carries a 2 year (730 days) limited warranty. Please fill out the enclosed war- ranty card to validate your purchase and warranty. You may also register your product online at www.adj.com. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number.

  • Page 5: Safety Precautions

    B. The appliance has been exposed to rain or water. C. The appliance does not appear to operate normally or exhibits a marked change in perfor- mance. ADJ Products, LLC - www.adj.com - Inno Pocket Scan User Manual Page 5...
  • Page 6 Data Cable (DMX Cable) Requirements (For DMX and Primary/Secondary Operation): The Inno Pocket Scan can be controlled via DMX-512 protocol. The Inno Pocket Scan is a 6 channel DMX unit. The DMX address is set electronically using the controls on the side panel of the unit. Your unit and your DMX controller require a approved DMX-512 110 Ohm Data cable for data input and data output (Figure 1).
  • Page 7 5-pin data cables in to a 3-pin line a cable adaptor must be used. These adaptors are readily available at most electronics stores. The chart below details a proper cable conversion. ADJ Products, LLC - www.adj.com - Inno Pocket Scan User Manual Page 7...
  • Page 8 Inno Pocket Scan System Menu ADJ Products, LLC - www.adj.com - Inno Pocket Scan User Manual Page 8...

  • Page 9: System Menu

    3. Press the UP or DOWN buttons to find your desired dimmer curve and press ENTER to confirm. See the Dimmer Curve Chart section of this manual for more information. ADJ Products, LLC - www.adj.com - Inno Pocket Scan User Manual Page 9...
  • Page 10 1. Press the MENU button until “FHRS” is displayed, and press ENTER. 2. The running time of the fixture will now be displayed. Press MENU to exit. ADJ Products, LLC - www.adj.com - Inno Pocket Scan User Manual Page 10...
  • Page 11 RSET - Use this function to reset the unit. 1. Press the MENU button until “RSET” is displayed, and press ENTER. 2. The fixture will now reset. ADJ Products, LLC - www.adj.com - Inno Pocket Scan User Manual Page 11...
  • Page 12 2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm. 3. Press the MENU button for one second to exit. ADJ Products, LLC - www.adj.com - Inno Pocket Scan User Manual Page 12...

  • Page 13: Operation

    A DMX controller allows you to create unique pro- grams tailored to your individual needs. The Inno Pocket Scan has 6 DMX Channels. See the DMX Traits and Values section of this •...

  • Page 14: Primary-Secondary Set Up

    Once this number has been reached, a new power outlet must be used in order to accommo- date any additional fixtures. All linked fixtures must be of the same make and model type. DO NOT mix fixtures. ADJ Products, LLC - www.adj.com - Inno Pocket Scan User Manual Page 14...
  • Page 15 Inno Pocket Scan DMX Traits and Values ADJ Products, LLC - www.adj.com - Inno Pocket Scan User Manual Page 15...
  • Page 16 SOUND ON & OFF - These buttons activate and deactivate the sound active mode. SHOW - This activates the show mode. Use buttons 1-9 to select your desired show. ADJ Products, LLC - www.adj.com - Inno Pocket Scan User Manual Page 16...
  • Page 17 Inno Pocket Scan Photometric Chart Inno Pocket Scan Dimmer Curve Chart ADJ Products, LLC - www.adj.com - Inno Pocket Scan User Manual Page 17...

  • Page 18: Fuse Replacement

    Low frequencies (bass) should cause the unit to react to sound. Quiet or high pitched sounds, such as tapping on the microphone, may not activate the unit. ADJ Products, LLC - www.adj.com - Inno Pocket Scan User Manual Page 18...

  • Page 19: Warranty

    ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.

  • Page 20: Specifications

    Web: www.adj.com / E-mail: info@americandj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade Netherlands service@adjgroup.eu / www.adj.eu Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99 ADJ Products, LLC - www.adj.com - Inno Pocket Scan User Manual Page 20...
  • Page 21 ADJ Products, LLC - www.adj.com - Inno Pocket Scan User Manual Page 21...
