Summary of Contents for ADJ INNO POCKET SCAN

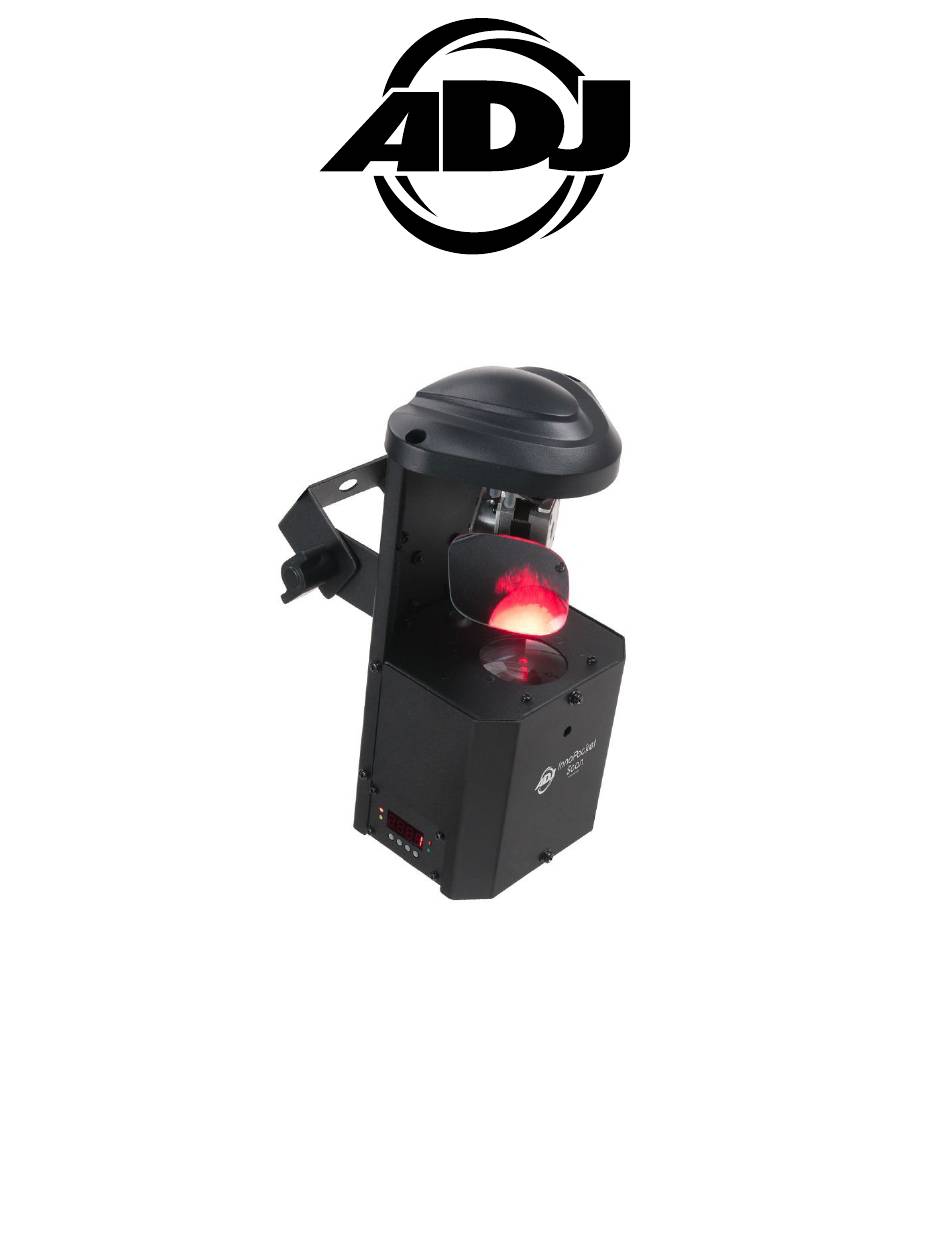

  • Page 1 INNO POCKET SCAN User Manual...
  • Page 2 ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
  • Page 3: Table Of Contents

    C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Guidelines System Menu Offset Adjustment Menu Operation Primary-Secondary Setup | Power Corde Daisy Chain Infrared Remote Control: UC IR Photometric Chart | Dimmer Modes and Curves DMX Setup DMX Traits Gobos: 1-8...
  • Page 4: Introduction

    Please do not discard the shipping carton in the trash. Please recycle whenever possible. FOR SOFTWARE SUPPORT, CONTACT ADJ CUSTOMER SUPPORT. CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions.
  • Page 5: Limited Warranty (Usa Only)

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.
  • Page 6: Warranty Registration | Features

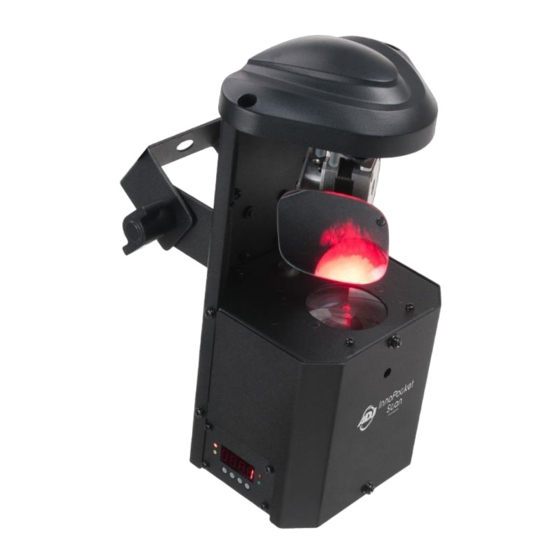

    FEATURES With it’s compact size and light weight, the ADJ Inno Pocket Scan is an ideal lighting effect for any mobile entertainer, small nightclub, bar or lounge and for Bowling and entertainment centers. This fixture features a bright 12-Watt LED engine and 12 exciting built-in light shows in a very compact, mobile case.
  • Page 7: Safety Guidelines

    S A F E T Y G U I D E L I N E S For Your Own Personal Safety, Please Read and Understand This Manual In Its Entirety Before You Attempt To Install Or Operate This Unit! • To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture •...
  • Page 8: System Menu

    S Y S T E M M E N U...
  • Page 9 S Y S T E M M E N U ADDR - DMX Address Setting. 1. Press the MENU button until “ADDR” is displayed, and press ENTER. 2. The current address will now be displayed and flashing. Press the UP or DOWN buttons to find your desired address.
  • Page 10 S Y S T E M M E N U LED - With this function you can have the LED display turn off after 10 seconds. 1. Press the MENU button until “LED” is displayed, and press ENTER. 2. The display will show either “ON” or “OFF”. Press the UP or DOWN buttons to select “ON” to keep the LED display on at all times, or “OFF”...
  • Page 11: Offset Adjustment Menu

    O F F S E T A D J U S T M E N T M E N U To enter the offset adjustment submenu, press the ENTER button for at least 5 seconds. In this submenu you are able to adjust the pan and tilt home positions and gobo wheel home position. PAN - Adjustment of the pan position.
  • Page 12: Operation

    A DMX controller allows you to create unique programs tailored to your individual needs. • The Inno Pocket Scan has 6 DMX Channels. See the DMX Traits and Values section of this manual for a detailed description of the DMX values and traits. •...
  • Page 13: Primary-Secondary Setup | Power Corde Daisy Chain

    P R I M A R Y- S E C O N D A R Y S E T U P This function will allow you to link up to 16 units together and operate them without a controller. The units will be sound activated.
  • Page 14: Infrared Remote Control: Uc Ir

    I N F R A R E D R E M O T E C O N T R O L : U C I R The UC-IR infrared remote gives you control of various functions. To control the fixture you must aim the remote at the front of the fixture.
  • Page 15: Photometric Chart | Dimmer Modes And Curves

    P H O T O M E T R I C C H A R T D I M M E R M O D E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect...
  • Page 16: Dmx Setup

    D M X S E T U P Power Supply: The ADJ Inno Pocket Scan contains an automatic voltage switch, which will automatically sense the voltage when it is plugged into a power source. With this switch there is no need to worry about the correct power voltage, and this unit can be plugged in anywhere. DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication between intelligent fixtures and controllers.
  • Page 17 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior. A DMX512 terminator reduces signal errors, avoiding most signal reflection interference.
  • Page 18: Dmx Traits

    D M X T R A I T S CHANNEL DMX VALUES FUNCTION 0-255 TILT 0-255 STROBE BLACKOUT 8-15 OPEN 16-131 STROBING SLOW - FAST 132-139 OPEN 140-181 SLOW OPEN - FAST CLOSE 182-189 OPEN 190-231 FAST OPEN - SLOW CLOSE 232-239 OPEN 240-247...
  • Page 19: Gobos

    G O B O S : 1 - 8 GOBOS GOBO 1 GOBO 2 GOBO 3 GOBO 4 GOBO 5 GOBO 6 GOBO 7 GOBO 8...
  • Page 20: Cleaning And Maintenance

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.
  • Page 21: Specifications

    Display Inversion Mode • With Wired Digital Communication Network • IEC AC IN/OUT on rear to daisy chain power (up to 19 Inno Pocket Scan’s @ 120V and 35 Inno Pocket Scan’s @ 230V ) • Hanging Yoke + safety hook included •...
