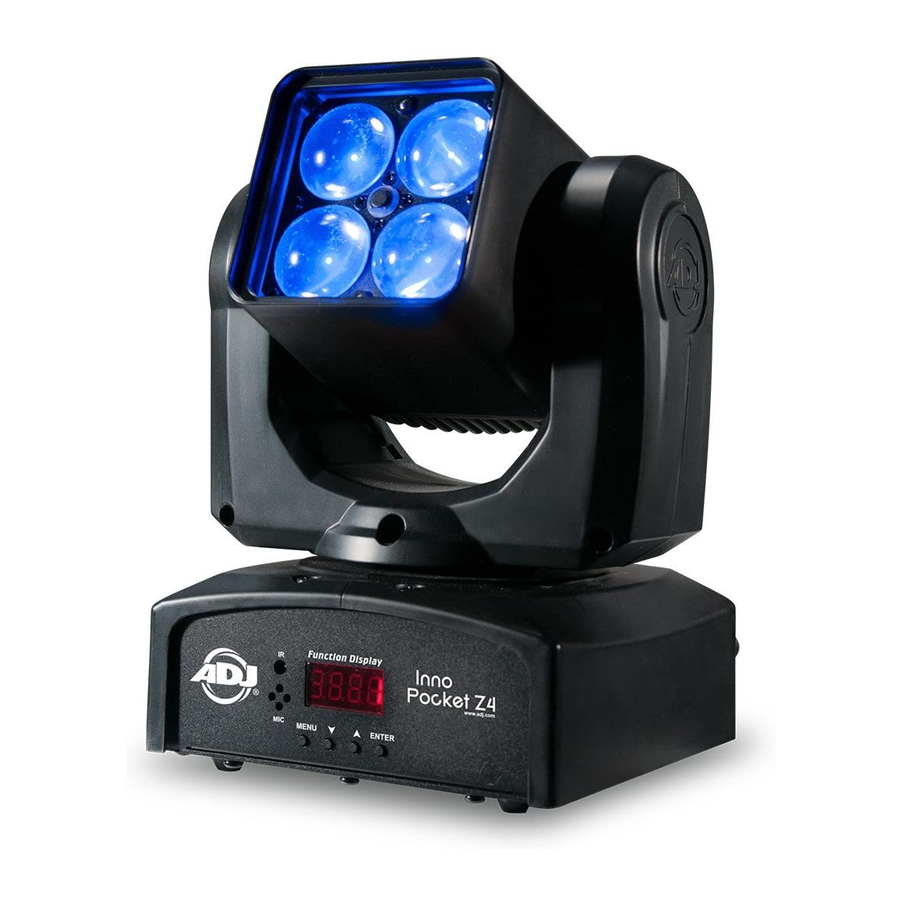

INNO POCKET Z4
User Manual
Revised 05/20/2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the INNO POCKET Z4 and is the answer not in the manual?

Questions and answers

Related Manuals for ADJ INNO POCKET Z4

Summary of Contents for ADJ INNO POCKET Z4

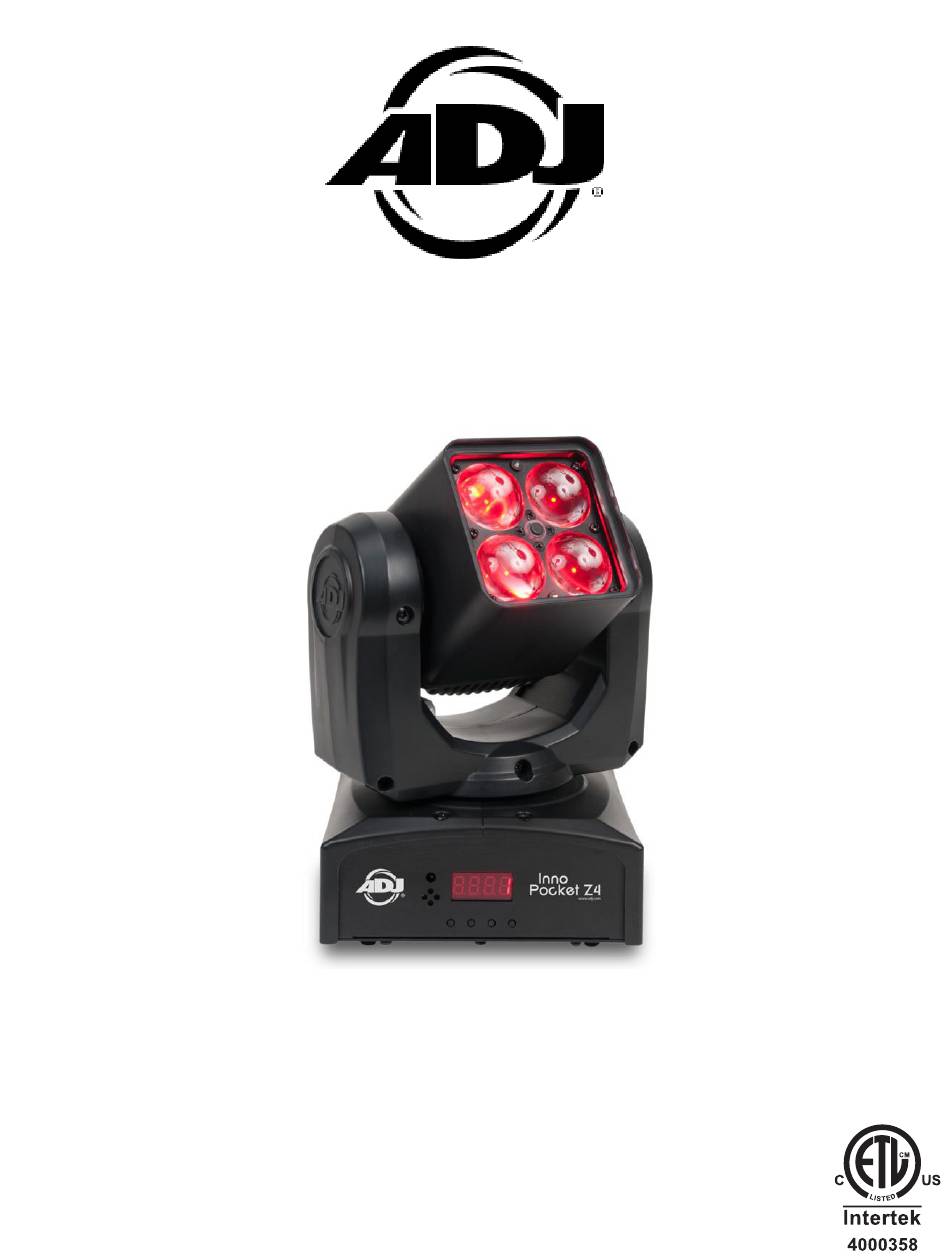

  • Page 1 INNO POCKET Z4 User Manual Revised 05/20/2022...

  • Page 2: Document Version

    ©2022 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
  • Page 3 G E N E R A L I N F O R M A T I O N Unpacking: Thank you for purchasing the Inno Pocket Z4 by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the ship- ping carton for damage that may have occurred during shipping.
  • Page 4 The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.
  • Page 5 During operation, the housing may become extremely hot. Avoid touching the unit with bare hands while in use. ADJ Products, LLC will not accept any liability for any resulting damages caused by the non-obser- vance of this manual or any unauthorized modification to this unit.
  • Page 6 S A F E T Y P R E C A U T I O N S For your own personal safety, please read and understand this manual completely before attempting to install or operate this device! • To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture. •...
  • Page 7 M O U N T I N G When installing the unit, the trussing or area of installation must be capable of supporting at least 10 times the weight of the unit without any deformation. The unit must be secured with a secondary safety attachment, e.g.
  • Page 8 M O U N T I N G NOTICE: The suitable environmental temperature range for this lighting fixture is from -25˚ C to 45˚ C. Do not place or operate this lighting fixture in an environment where the temperatures are outside of this range.
  • Page 9 D M X S E T U P Power Supply: This device features an automatic voltage switch, which will automatically sense the voltage when it is plugged into the power source. With this switch there is no need to worry about the correct power voltage, and this unit can be plugged in anywhere.
  • Page 10 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior. Figure 4 (DMX-) 5-Pin XLR DMX Connectors.

  • Page 11: Continued On Next Page

    S Y S T E M M E N U Addr 001 - 512 Set DMX address 16Ch Chnd 19Ch Select DMX channel mode 22Ch Primary mode Sec1 Secondary mode (standard) Scnd Secondary mode (contrasting Sec2 movement) Sh 1 Sh 2 Shnd Select show mode Sh 3...
  • Page 12 S Y S T E M M E N U Red2 000 - 255 Manually adjust Red2 Gre2 000 - 255 Manually adjust Green2 Blu2 000 - 255 Manually adjust Blue2 Nanu Whi2 000 - 255 Manually adjust White2 (continued) Zoon 000 - 255 Manually adjust zoom...
  • Page 13 S Y S T E M M E N U System Menu: When making adjustments press ENTER to confirm your setup, then press and hold the MENU button for at least 3 seconds. To exit without making any adjustments press the MENU button.
  • Page 14 S Y S T E M M E N U DNST - Select how the device will respond in the event that the DMX signal or power is lost or interrupted, and the mode that the device will default to when power is first applied. 1.
  • Page 15 S Y S T E M M E N U MANU - In this submenu you are able to test the different functions; pan, tilt, LEDs, zoom, dim- mer, and strobe. 1. Press the MENU button until “MANU” is displayed, then press ENTER. 2.
  • Page 16 S Y S T E M M E N U To enter the home position adjustment menu, unlock the display by pressing the MODE button for at least 3 seconds. Then press the ENTER button for at least 3 seconds to enter the home adjustment menu.
  • Page 17 P R I M A R Y - S E C O N D A R Y O P E R A T I O N This function will allow you to link up to 16 units together and operate without a controller. The units will be sound activated.
  • Page 18 A D J U C I R C O N T R O L The UC IR (sold separately) infrared remote gives you control of various functions. To control the fix- ture, you must aim the remote at the front of the fixture and be within the maximum range of 30 feet. Please note that the UC IR Remote can only be used when the device is in Primary mode.

  • Page 19: Dmx Values Function

    D M X T R A I T S CHANNEL DMX VALUES FUNCTION 16CH 19CH 22CH 000 - 255 Pan Movement, 0° - 540° Pan Fine 000 - 255 000 - 255 Tilt Movement, 0° - 180° Tilt Fine 000 - 255 Red 1, 0% - 100% 000 - 255 Green 1, 0% - 100%...
  • Page 20 D M X T R A I T S CHANNEL DMX VALUES FUNCTION 16CH 19CH 22CH Color Macros (continued) 094 - 097 Color Macro 24 098 - 101 Color Macro 25 102 - 104 Color Macro 26 105 - 108 Color Macro 27 109 - 112 Color Macro 28...
  • Page 21 D M X T R A I T S CHANNEL DMX VALUES FUNCTION 16CH 19CH 22CH Shutter / Strobe (continued) 232 - 239 Open 240 - 247 Random Strobing 248 - 255 Open Primary Dimmer, 0% - 100% 000 - 255 Pan/Tilt Movement Speed, fast to slow 000 - 255 Special Functions...
  • Page 22 P H O T O M E T R I C C H A R T 3510 9065 2365 1051 9378 2445 1077 RGBW 5731 2581 1431 21210 RGBW 1885 Distance(m) D I M M E R C U R V E C H A R T (Fade Time) Ramp Effect Standard...
  • Page 23 F U S E R E P L A C E M E N T Locate and remove the unit’s power cord, then find the fuse holder inside the power socket. Insert a flat-head screw driver into the power socket and gently pry out the fuse holder. Remove the bad fuse and replace with a new fuse of the same rating.
  • Page 24 D I M E N S I O N A L D R A W I N G S...
  • Page 25 ADJ Products, LLC 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-2650 / Fax: 323-725-6100 Web: www.adj.com / E-mail: info@adj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade Netherlands service@adjgroup.eu / www.adj.eu...
