User Instructions
Rev. 6/12
Inno Scan LED
Unpacking:
Thank you for purchasing the Inno Scan LED by Ameri-
can DJ
. Every Inno Scan LED has been thoroughly tested and has
®
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Please do not return this unit to your dealer without con-
tacting customer support first.
Introduction:

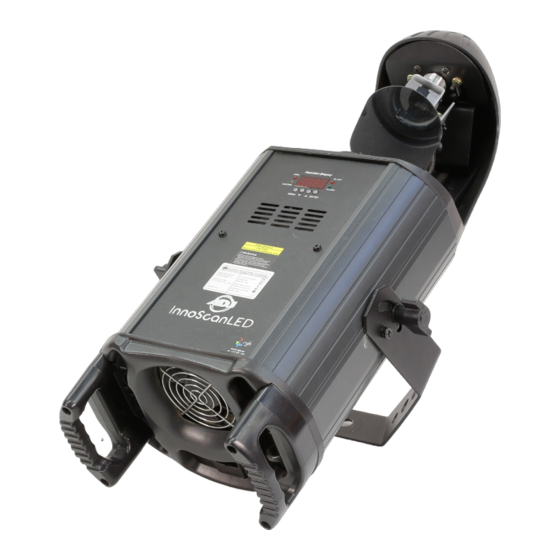

The Inno Scan LED is a DMX intelligent LED scanner.
The Inno Scan LED has 2 DMX channel modes; a 8 channel mode &
11 channel mode. The Inno Scan LED has three operating modes; a
sound active, show mode, DMX controlled. The Inno Scan LED can
operate as a stand alone fixture or in a Master/Slave configuration. For
best results use fog or special effects smoke to enhance the beams
projections.
Customer Support:
American DJ
support line, to provide help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacific Standard Time.
Voice:
(800) 322-6337
Fax:
(323) 582-2941
E-mail:
support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Warning!
This may cause severe eye damage. Avoid looking directly
into the light source at all times!
American DJ
- www.americandj.com - Inno Scan LED Instruction Manual Page 2
®
General Information
provides a toll free customer
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the InnoScanLED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ InnoScanLED

Summary of Contents for ADJ InnoScanLED

  • Page 1 Inno Scan LED General Information Unpacking: Thank you for purchasing the Inno Scan LED by Ameri- can DJ . Every Inno Scan LED has been thoroughly tested and has ® been shipped in perfect operating condition. Carefully check the ship- ping carton for damage that may have occurred during shipping.

  • Page 2: General Instructions

    Inno Scan LED Safety Precautions Inno Scan LED General Instructions To optimize the performance of this product, please read these For Your Own Personal Safety, Please Read and Understand This operating instructions carefully to familiarize yourself with the basic Manual Completely Before You Attempt To Install Or Operate operations of this unit.
  • Page 3 Using a cable terminator Operation): The Inno Scan LED can be controlled via DMX-512 proto- (ADJ part number Z-DMX/T) will decrease the possibilities of erratic col. The Inno Scan LED can be either be a 8 or 11 channel DMX unit.

  • Page 4: System Menu

    Inno Scan LED Set Up Inno Scan LED System Menu 5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX- 512 data cables for DATA transmission in place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When inserting stan- dard 5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily available at most electric stores.
  • Page 5 Inno Scan LED System Menu Inno Scan LED System Menu ADDR - 1. Press the MENU button until “SHND” is displayed, press ENTER. DMX Address Setting. 2. “Sh X” will now be displayed, “X” representing a number 1. Press the MENU button until “ADDR” is displayed, press between 0-12.
  • Page 6 Inno Scan LED System Menu Inno Scan LED System Menu SOUN - 2. The display will show either “ON” or “OFF”. Press the UP or Sound Active mode. DOWN buttons to select “ON” to keep the LED display on at 1.
  • Page 7 Inno Scan LED System Menu Inno Scan LED System Menu 1. Press the MENU button until “TEST” is displayed, press DOWN buttons to select “YES” to reset back to PRO default ENTER. settings, or “NO” to not reset to PRO defaults. 2.

  • Page 8: Operation

    Inno Scan LED Operation Inno Scan LED Operation Operating Modes: The Inno Scan LED can operate in three dif- 2. To control your fixture in DMX mode, follow the set-up procedures on pages 5-7 as well as the set-up specifications that are includ- ferent modes.
  • Page 9 Inno Scan LED 8 Channel Mode Inno Scan LED 8 Channel Mode Channel Value Function Channel Value Function 0 - 255 PAN 0° - 540° GOBO WHEEL 0 - 255 TILT 0° - 270° 0 - 9 OPEN STROBE 10 - 18 GOBO 1 0 - 7 BLACKOUT...
  • Page 10 Inno Scan LED 11 Channel Mode Inno Scan LED 11 Channel Mode Channel Value Function Channel Value Function 0 - 255 PAN 0° - 180° GOBO WHEEL 0 - 255 PAN FINE 0 - 9 OPEN 0 - 255 TILT 0° - 70 10 - 18 GOBO 1 0 - 255...

  • Page 11: Troubleshooting

    Inno Scan LED Gobo Replacement Inno Scan LED Fuse Replacement This unit comes with interchangable gobos. When changing Locate and remove the unit’s power cord. Once the cord has been removed located the fuse holder located inside the power socket. the gobos please be very careful.

  • Page 12: Warranty

    Inno Scan LED Warranty Inno Scan LED Specifications Model: Inno Scan LED MANUFACTURER’S LIMITED WARRANTY American DJ, Inc. hereby warrants, to the original purchaser, American DJ and American Voltage: 100V ~ 240V/50~60Hz Audio products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse).
