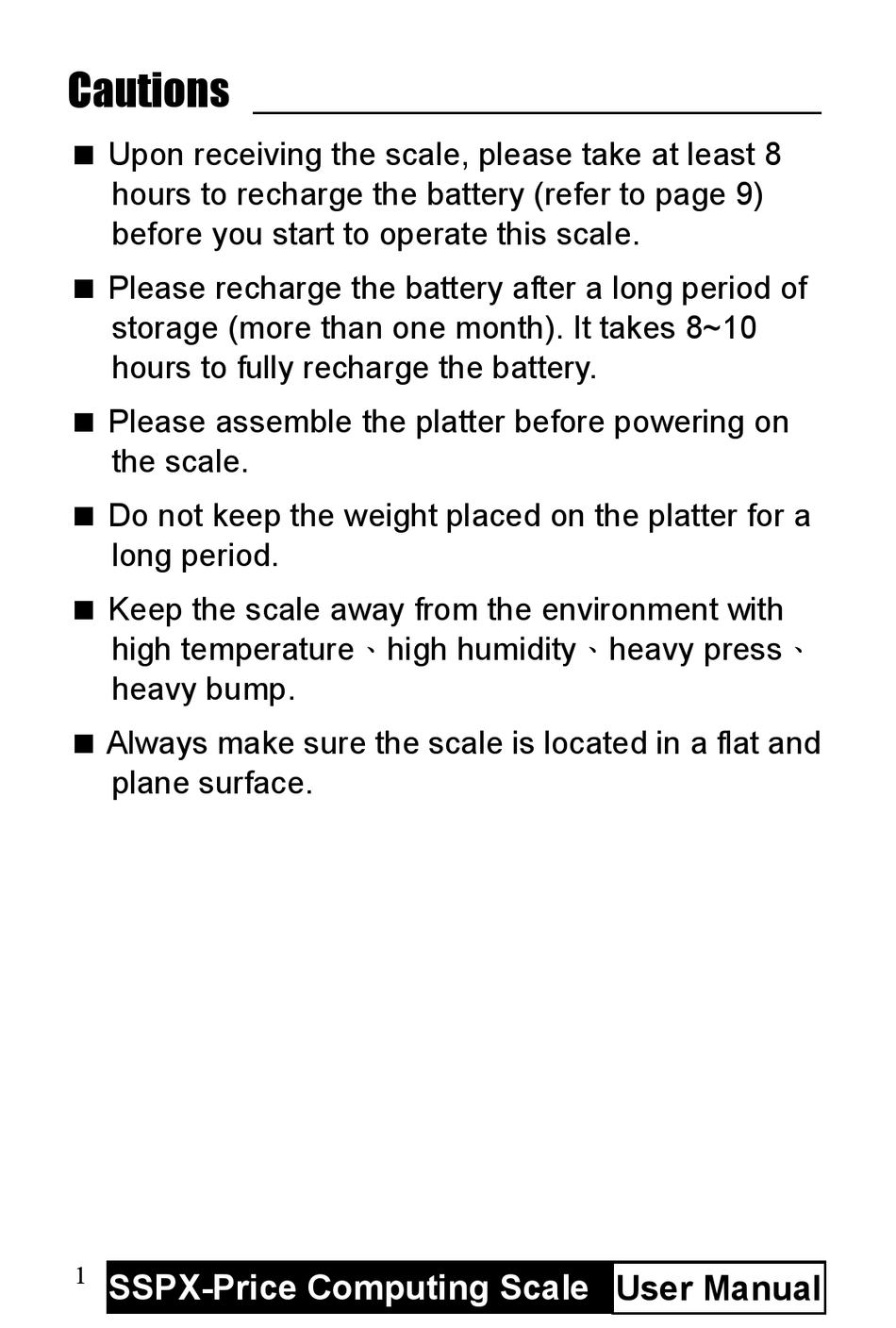

Cautions
Upon receiving the scale, please take at least 8
hours to recharge the battery (refer to page 9)
before you start to operate this scale.
Please recharge the battery after a long period of
storage (more than one month). It takes 8~10
hours to fully recharge the battery.
Please assemble the platter before powering on
the scale.
Do not keep the weight placed on the platter for a
long period.
Keep the scale away from the environment with
high temperature、high humidity、heavy press、
heavy bump.
Always make sure the scale is located in a flat and
plane surface.
1

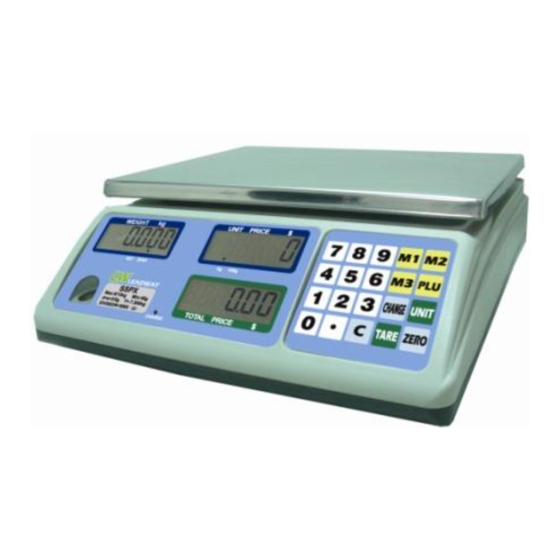

SSPX-Price Computing Scale
User Manual
Advertisement
Table of Contents
Related Manuals for Hocom SSPX
Summary of Contents for Hocom SSPX
- Page 1 Do not keep the weight placed on the platter for a long period. Keep the scale away from the environment with high temperature、high humidity、heavy press、 heavy bump. Always make sure the scale is located in a flat and plane surface. SSPX-Price Computing Scale User Manual...
- Page 2 Dimensions SSPX Tabletop Scale: SSPX-Price Computing Scale User Manual...
-
Page 3: Symbols On Lcd
Battery Symbol - appears on the bottom edge of WEIGHT LCD, - and indicates the battery is running in low-voltage status. This is for reminding the user to recharge the battery. SSPX-Price Computing Scale User Manual... - Page 4 Please recharge the battery as soon as possible. Pressing [C] key could go back to normal operating-mode. Press and hold [ ] key till the scale sounds beep to enable or disable optional Backlight. SSPX-Price Computing Scale User Manual...
- Page 5 (printed on the display-overlay). CHANGE : Press this key to operate money-change function. Example: When TOTAL LCD shows $17.15, and the customer gives $20.00. Press [CHANGE] key once, and then key in 20. LCDs will show: SSPX-Price Computing Scale User Manual...
-
Page 6: Unit Price
→ Finish setting, users can press [PLU] → [2] → [5] to recall 8.80 showed on UNIT PRICE LCD. For modifying the setting figures, please key in a new unit price and follow directly step 2 and step 3 as above. SSPX-Price Computing Scale User Manual... - Page 7 Press this key once, WEGIHT LCD will indicate ch9 -, and then press [1] or [2] key to select the weighing mode: Press [1] key to select kg mode. Press [2] key to select 100g mode. SSPX-Price Computing Scale User Manual...
- Page 8 <optional device> SCALE 5 4 3 2 1 5 4 3 2 1 9 8 7 6 9 8 7 6 DATA OUT RS232 Wiring Configuration: Baurate: 9600 Parity: None Stop Bit: 1 Data Bit: 8 SSPX-Price Computing Scale User Manual...
-
Page 9: Recharge The Battery
CHARGE LED: Color of LED Status of the battery Initial Connection ORANGE Charging GREEN Fully-charged Power Supply AC: 220V ±10% 50/60 Hz 6V DC / 25mA Rechargeable battery; DC: P=0.2W(max) SSPX-Price Computing Scale User Manual... - Page 10 NOTE ： SSPX-Price Computing Scale User Manual...
