B-Tech BT4003 Installation Manual & Parts List

Community Design No.
001713280-0019
Installation Safety Notes.....................................................................................................................2
Parts List............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Optional Accessories..............................................................................................................................9
Typical Installations...............................................................................................................................10
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
BT4005 / BT4011 / BT4015 /
BT4020 Ø60mm pole
(Sold Separately)
B-TECH AUDIO VIDEO MOUNTS

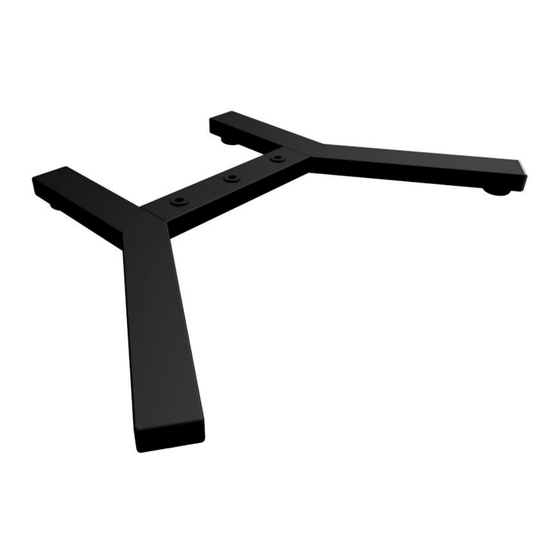

BT4003
LARGE FLOOR / TROLLEY BASE
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Floor / Trolley Base
PLEASE KEEP THIS FOR FUTURE REFERENCE
Actual screen size & weight limit
dependant on column length and feet type
CONTENTS
DESIGNED FOR USE WITH;
BT8009
(Sold Separately)
www.btechavmounts.com
FEATURES
● Designed for flat screens up to 50" (153cm) / 70kg (154lbs)
● Suitable for 1 or 2 column support installations
● Supplied with levelling feet
● Overall dimensions (with feet);
1046mm (41.2") x 711mm (28") x 60mm (2.4")
* BTW100-4 wheels sold separately
* Support columns and screen mounting plate are sold separately
BT7507 / BT8600 / BT8500 /
BT8501 (Sold Separately)
BT8431 / BT8432
(Sold Separately)
