INSTALLATION & USER INSTRUCTIONS

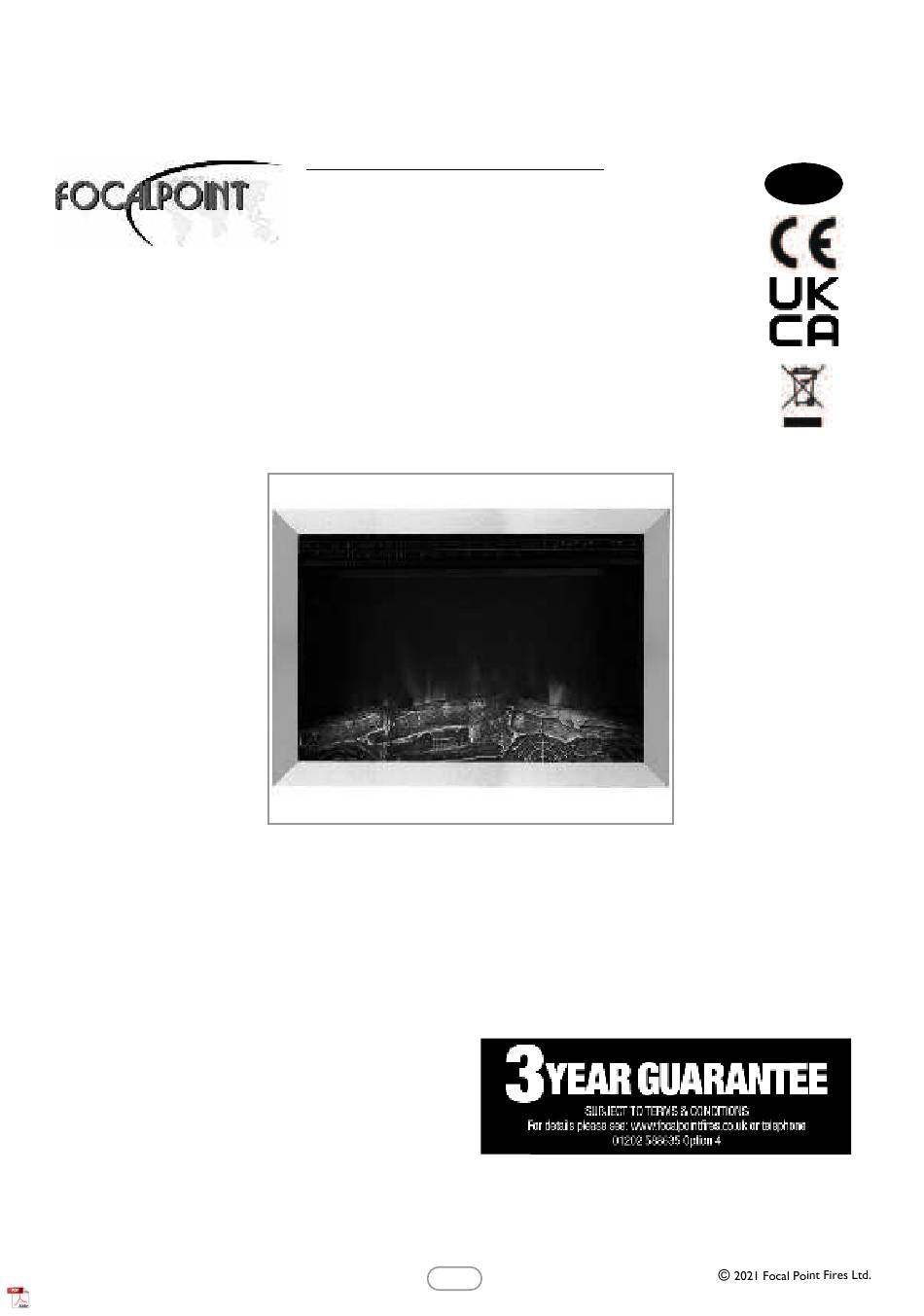

LED WALL INSET ELECTRIC FIRE
Focal Point Fires Ltd
Fo
Christchurch, Dorset BH23 2BT
Tel: 01202 49933499330
Fax: 01202 499326
www.focalpointfires.co.uk
e : sales@focalpointfires.co.uk
Focal Point Fires Ltd
RBK House, Irishtown, Athlone,
Co. Westmeath, N37 XP52,
Ireland Tel: 01202 499330
Fax: 01202 499326
www.focalpointfires.co.uk
e: sales@focalpointfires.co.uk
This product is only suitable for well insulated spaces or occasional use.
Please note : Except where otherwise stated, all
rights, including copyright in the text, images
and layout of this booklet is owned by Focal
Point Fires Ltd. You are not permitted to copy
or adapt any of the content without the prior
written permission of Focal Point Fires Ltd.
MODELS COVERED BY THESE INSTRUCTIONS
EF461L-E
MEDFORD LED WALL INSET ELECTRIC FIRE
FRAME OPTIONS AVAILABLE
MODEL SHOWN: MEDFORD LED WALL INSET ELECTRIC FIRE
Image used for illustration purposes only
All instructions must be handed to the user
for safekeeping.
1
GB IE
Revision D - 04/21
