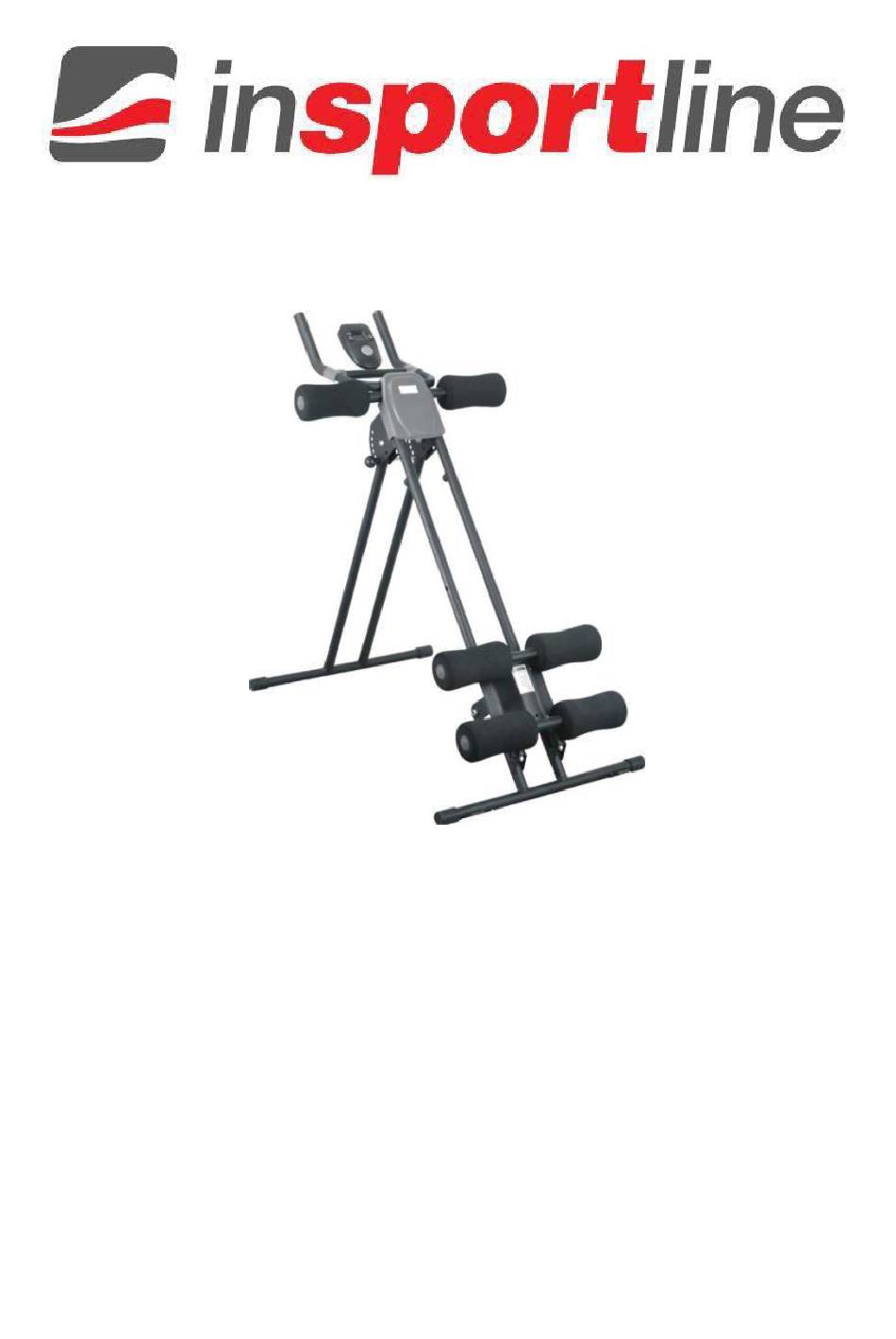

- Page 1 USER MANUAL – EN IN 10505 Abdominal Trainer inSPORTline AB Lifter Easy IMPORTANT! Please read all instructions carefully before using this product. Retain this manual for future reference.
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY NOTICE .......................... 3 ASSEMBLY ................................4 RESISTANCE ................................ 6 STORAGE ................................6 EXPLODED DIAGRAM ............................7 PARTS LIST ................................8 MONITOR INSTRUCTIONS ..........................9 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ............9 Dear Customer, the manufacturer is constantly improving all types and models. Please understand that changes to the delivered product in terms of form, features and technology are thus possible at any time. -
Page 3: Important Safety Notice
IMPORTANT SAFETY NOTICE Note the following precautions before assembling or operating the machine. 1. THE MAXIMUM WEIGHT CAPACITY OF THE MACHINE IS 100 KGS. Persons whose body weight exceeds this limit should NOT use this machine. 2. Keep children and pets away from the machine all times. DO NOT leave unattended children in the same room with the machine. -
Page 4: Assembly
ASSEMBLY BEFORE YOU BEGIN 1. Locate a comfortable work site. Assemble your machine in an open space with adequate ventilation and lighting. Because the machine is portable, to some extent, you need not assemble it exactly where it is to be used. For your convenience, however, you should avoid hauling the machine across excessive distances, through narrow passage ways or over staircases once its assembly is complete. - Page 5 ASSEMBLY STEPS STEP 1: INSTALL THE HANDLEBAR Attach Handlebar (3) onto the Sliding tube frame (1) with Bolts (17) and Arc washers (22). Attach the Foam grips (6) to the cross-bar of Sliding tube frame (1). STEP 2: ATTACH FOAM GRIPS Attach the Foam grips (7) onto the Knee frame (4).
-
Page 6: Resistance
RESISTANCE Based on the traditional Sun Salutation in the yoga the plank pose has time tested benefits including power, flexibility and balance all working together in perfect harmony. The machine is the only workout that gives you the perfect plank positioning. Use any of the 4 resistance levels. Start from D-EASY if you are a beginner or if you just want to do more reps. -
Page 7: Exploded Diagram
EXPLODED DIAGRAM... -
Page 8: Parts List
PARTS LIST DESCRIPTION REMARK Sliding tube frame Front post Handlebar ⌀4x15 Knee frame ⌀23x80xL160 Screw ⌀23x67xL160 Foam grip Foam grip End cap End cap ⌀20x30xL205 End cap Handlebar grip Monitor Cushion Cushion Foot pad Bolt M8xL45 Bolt M8xL10 ⌀12x⌀8.2x9 Bolt Dl0xl.5 Big spacer Nylon nut... -
Page 9: Monitor Instructions
MONITOR INSTRUCTIONS SPECIFICATIONS TIME 00:00-99:59 MIN:SEC COUNT 0-9999 TIMES CALORIES (CAL) 0-9999 KCAL STRIDES/MIN (REPS/MIN) 0.9999 TIMES/MIN OPERATING KEYS MODE: This key lets you select and lock on to a particular function you want. OPERATION PROCEDURES AUTO ON/OFF: The system turns on when any key is pressed or when it receives a signal input from the speed sensor. ... - Page 10 The seller is SEVEN SPORT s.r.o. with its registered office in Borivojova Street 35/878, Prague 13000, Company Registration Number: 26847264, registered in the Trade Register at Regional Court in Prague, Section C, Insert No. 116888. According to valid legal regulations it depends whether the Buyer is the End Customer or not. “The Buyer who is the End Customer”...
- Page 11 In case such agreement is not made, the Seller is obliged to provide the Buyer with a financial compensation in the form of a refund. Русе, ул."ТЕЦ Изток" 20 Oficiu: Telefon: 070080020 / 09897612190 E-mail: office@yako.bg Web: www.insportline.bg...
