  • Page 2 Operating manual viper a Look Solutions product...
  • Page 3 Set of Equipment supplied – 1 Viper nt – 1 tank lid with Quick Connector – 1 manual Please check whether all the products you ordered are supplied. Original operation manual, version 05/2018...

  • Page 4: Table Of Contents

    2. Safety instructions 3. Description of the parts 4. Fluid 4.1 General Notes 4.2 Changing the fluid container 5. Operating the Viper nt 5.1 Selecting the location 5.2 Putting into operation 5.3 Switching the device off 5.4 Control choices 5.4.1 Control via DMX 512 5.4.1.1 Adjusting the DMX start address...

  • Page 5: Introduction

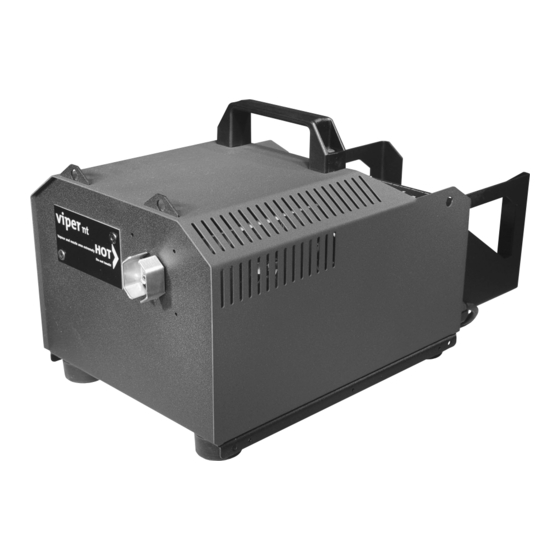

    1. Introduction The Viper nt originates from the continued development and improvement of the Viper fog machine. It unites the current digital technology with the proven technique and power of its predecessor. New features guarantee a much more simple operation – place and fog, reducing the...

  • Page 6: Safety Instructions

    2. Safety instructions A fog machine is not a toy! • Very hot steam escapes from the nozzle. Danger of getting burnt. • Occasionally very hot droplets of fluid may escape when in operation. Thus never aim at persons directly and keep a minimum distance of 3 m to the nozzle. •...

  • Page 7: Description Of The Parts

    3. Description of the parts Front view CAUTION Hot Surface! Avoid Contact! Lo o k So l ut i o n s 1: · Nozzle Rear view 2: · Fluid tube 3: · Fluid tube inlet 4: · Mains cable...
  • Page 8 230 V~/50 Hz/1300 W 8: · XLR socket for 0-10 V (+) DC Serial no. Made by OTTEC Technology GmbH for Look Solutions. Made in Germany. Bünteweg 33 · DE - 30989 Gehrden. Tank lid · Brass coupling · Brass collar ·...

  • Page 9: Fluid

    4. Fluid 4.1 General Notes The Viper nt has been designed to be used with Look fog fluids. The following Look fog fluids are available: Quick-Fog thick, quick disappearing fog fluid Regular-Fog thick, long lasting fog fluid Slow-Fog thick, extremely long lasting fog fluid If fluids have been used other than Look fog fluids we can‘t grant warranty on parts...

  • Page 10: Putting Into Operation

    (230 V/50 Hz). A „P” and two figures appear on the display. P 2 5 b. After a warm up time of approx. seven minutes the Viper nt is ready to start. The green Ready-Led [22] blinks if the working temperature is reached. As soon as the final temperature is reached, the LED illumates permanently.
  • Page 11 5. Operating the Viper nt Control panel (Standard-Menu) 20: Ready-LED, green 19: Timer-LED, red P 1 5 18: LED display 17: DMX-LED, yellow 16: Enter-button 15: Up/Down-buttons 14: Mode-button Fig. 1: Display shown at adjusting the pump output 2 7 5 Fig.

  • Page 12: Control Choices

    512 this data takes priority over 0-10 V (+) DC and Stand alone operation. 5.4.1 Operating via DMX 512 Connecting the Viper nt to a DMX-desk using the 5pin XLR socket [8] on the back of the machine. As soon as the machine receives a correct DMX signal, the yellow DMX- LED [17] shines.

  • Page 13: Stand Alone Mode

    5. Operating the Viper nt 5.4.3 Stand alone The Viper nt can be used in the Stand alone mode. In this mode the control of the pump must be adjusted at the machine. a) Press and release the Mode-button [14] until a „P” and two figures appear on the display [18].

  • Page 14: Operating With Internal Timer

    If the timer is in operation and you disconnect the machine from the mains cable, the Viper nt will re-start in the Timer-Mode as soon as it‘s reconnected to the mains. To stop this press and hold the Mode-button [14] for more than 2 seconds or switch to...

  • Page 15: Wiring Of The Connectors

    This reduces the changes of the machine clogging up. – If you install the Viper nt make 100% sure that a permanent fog-free air supply for the unit is guaranteed. Cooling air with too high fog concentration (very often in Clubs and Discos) can condense inside the machine and cause moisture damage.

  • Page 16: Troubleshooting

    7. Troubleshooting The fog machine does not fog • Check external control signals • Check mains supply • Check fluid tank (empty?) • Check for correct connections at the fluid bottle • Check for fluid in the fluid tube • Check if fluid filter is clogged •...

  • Page 17: Specifications

    Overheating protection: Heater block/Thermostat Pump/Thermal switch Dimensions (L x W x H): 47 x 23 x 24 cm Weight without tank: 8.6 kg Manufactured for: Look Solutions - Fog machines made in Germany · Bünteweg 33 · DE - 30989 Gehrden...

  • Page 18: Warranty Conditions

    9. Warranty Conditions For the fog machine Viper nt Look‘ guarantee is: 1. Free of charge, subject to the following conditions (No. 2 - 6) we will repair any defect or fault in the unit if it is caused by a proven factory fault and has been advised immediately after appearance and within 24 months of delivery to the end user.
  • Page 19 Timer-Menu Pumpeneinstellung Pxx (1-99%) Pump output Nebeln aus Nebeln an/aus + 1% – 1% Output stop Timer aus Output start/stop Timer stop nein länger als 2 Sek. more than 2 sec. Timer-Menu Pausenzeit P.xx (0.1-99) Pause Timer start/stop + 0.1 –...
  • Page 21 Look Solutions product...
