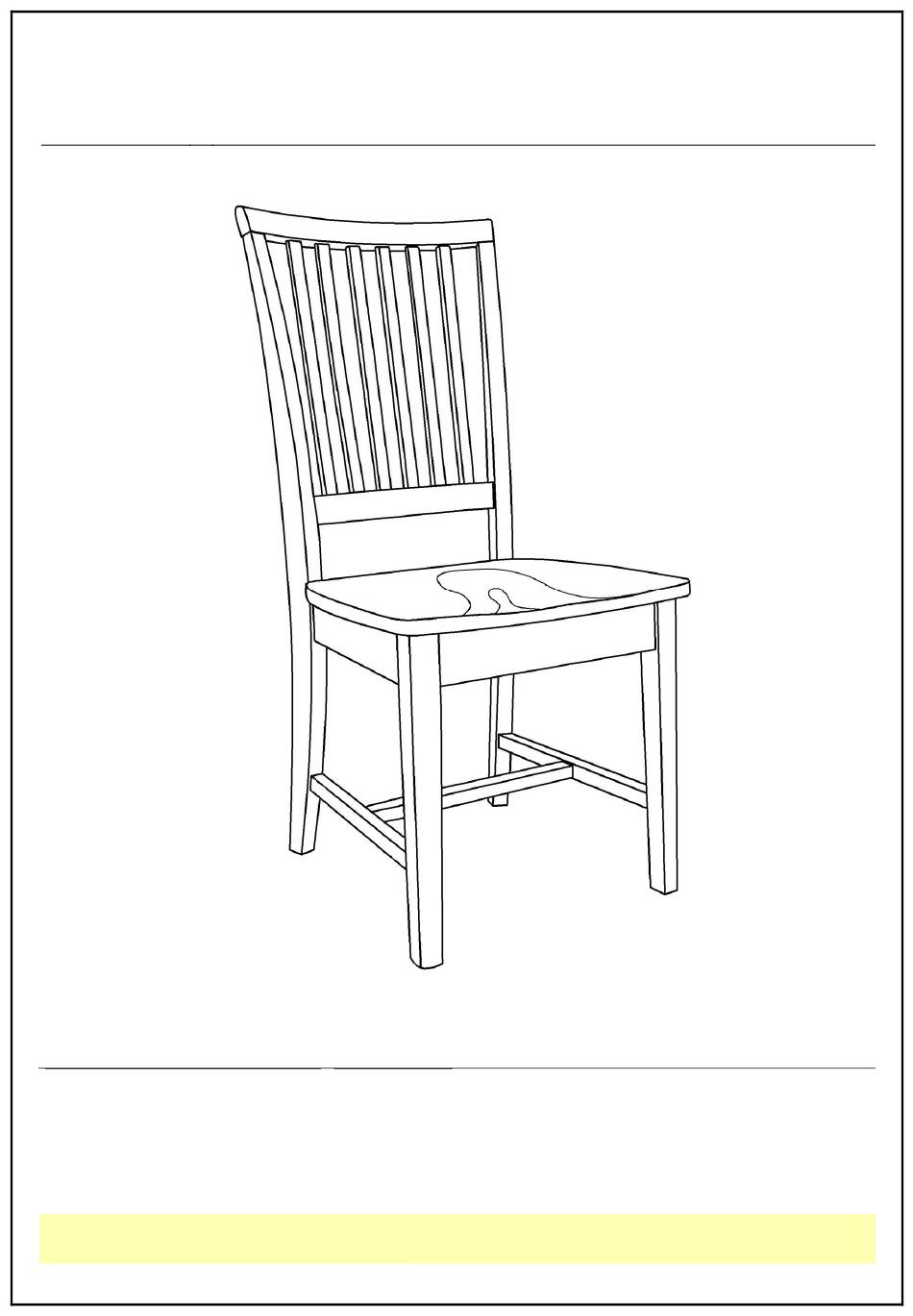

- Page 1 ASSEMBLY INSTRUCTIONS : MISSION CHAIR Description : 265 Item No. ITEM NO.: 265 Printed in Vietnam REVISED JUL 2, 2012 - 1 -...
-
Page 2: Before Assembly
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Chair back Seat Frame Middle Side Stretcher stretcher (L-R) Front Leg Seat (L-R) ITEM NO.: 265 Printed in Vietnam REVISED JUL 2, 2012 - 2 -... -
Page 3: Hardware List
Note: DO NOT tighten any of the bolts, until the chair is fully assembled. Put the chair on a flat level surface, make sure the chair is level and tighten with allen key (7) as shown below. ITEM NO.: 265 Printed in Vietnam... - Page 4 Attach front legs (E) to the seat frame with bolts (2) and washers (4) and (8) .Tighten with allen key (7). Place side stretchers (D) between front and back legs, use the screwdriver to tighten the screws (6) as shown below. ITEM NO.: 265 Printed in Vietnam REVISED JUL 2, 2012 - 4 -...
- Page 5 STEP 4 Attach seat (F) to top of the seat frame (B) by using screws (6). Tighten with a screwdriver. ITEM NO.: 265 Printed in Vietnam REVISED JUL 2, 2012 - 5 -...
