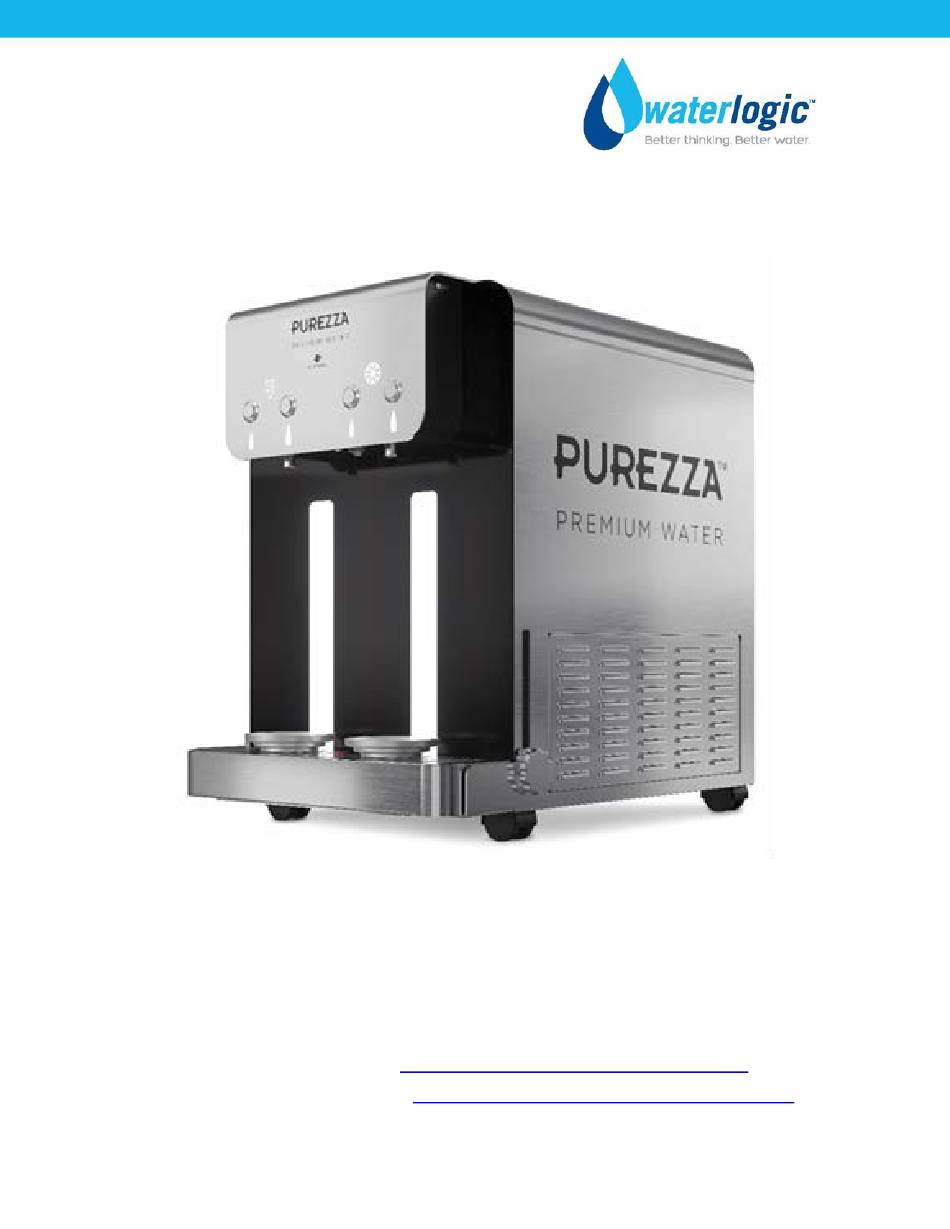

- Page 1 P2 Classe MANUAL Waterlogic Commercial Products, LLC 3175 Bass Pro Drive Grapevine, TX 76051 (800) 288-1891 www.waterlogicdealers.com Tech Portal Website: canteen-portal.waterlogic.com Waterlogic International, LTD – Global Headquarters Grenfell Road, Maidenhead, Berkshire, SL6 1HN, United Kingdom...
- Page 2 P2 CLASSE MANUAL Congratulations on your choice of the Waterlogic P2 Classe Sparkling and Still Water Dispenser. The P2 Classe model dispenses cold still water and cold sparkling water. Every P2 Classe includes: Bio-Cote Anti-Microbial Protection Firewall Advanced Purification External Filter configuration can be optimized for all water conditions The P2 Classe provides exceptional quality and great tasting water with every use.
-
Page 3: Table Of Contents
• Flow Diagram ................. 30 • Electrical Schematic ............... 31 INSTALLATION GUIDE • Pre-Installation Procedures ........... 32 • Installation and Flushing Instructions ........33 • Draining Procedure ..............36 • Adjusting the Gas Blend ............37 P2 Classe Manual Page 3 – Revision: 3-2-2021... -
Page 4: Safety Alert Symbols
(RCD) having a rated residual operating current not exceeding 30mA. Use only Waterlogic supplied power cord. Never use extension cords or power strips to connect unit. Do not use if the power supply cord is damaged. Always unplug from power supply prior to servicing. - Page 5 WARNING! DO NOT OPERATE IF DAMAGED. Unplug and isolate water supply if abnormal conditions exist. Contact Waterlogic or authorized dealer for repair, service, and installation to avoid hazards. WARNING! CONNECT TO POTABLE WATER SUPPLY. This system is to be used for water only and is not intended for use where water is microbiologically unsafe or with water of unknown quality without adequate disinfection before or after the system.
-
Page 6: Features And Benefits
Ice Bath Drain Port The P2 Classe is equipped with a drain port to the ice bath. This makes for easier maintenance as well to ease transport if needed. Energy Saver The P2 Classe comes from the factory with Energy Saver active. -
Page 7: Certifications
Water Coolers. CSA C22.2 No. 120 CSA Standard for Refrigeration BPA Free - Waterlogic tests for BPA and declares that all of its products are Bisphenol-A FREE and contain no harmful BPA plastics. NSF/ANSI-55 Class A – Ultraviolet Microbiological Water Treatment System NSF / ANSI 372 –... -
Page 8: Model Designations And General Specifications
MODEL/PART DESIGNATIONS MODEL - BRAND NAME DESCRIPTION PART NUMBER P2 Classe – Cold, Cold Sparkling P2 Classe F-P2FX-M-CS-IB-SB-WLU CLASSE P2 Serial Number: TP2C425SBXXX SPECIFICATIONS ITEM P2 CLASSE Water Connection 1/4” Quick Connect Cold Water Temperature Cold Water Temperature – Factory Set Point 5°C (41°F) -
Page 9: Electrical And Shipping Specifications
ELECTRICAL SUPPLY 120V/60Hz 15 Amp Service COMPONENT POWER (approximate) AMP DRAW (approximate) Pump 267w 0.5A Mixing Motor 0.3A Control Power 0.2A Compressor 220w UV Lamp System 0.6A P2 Classe TOTAL 617w 5.6A P2 Classe Manual Page 9 – Revision: 3-2-2021... -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS The P2 Classe utilizes a very simple user interface. 4 main buttons across the front user panel. The first two buttons (red/yellow) can be used to dispense cold Sparkling water and the last two (green/blue) are used to dispense cold Still water. Each of the buttons are programmed to dispense a preset volume of water and can be reprogrammed if desired. -
Page 11: Volumetric Dispense Programming
5 seconds and the LEDs will return to solid light. (Maximum dispensing is 3liters.) NOTE: Factory presets for the small and large dispense buttons are 750ml and 1000ml respectively. P2 Classe Manual Page 11 – Revision: 3-2-2021... -
Page 12: Warranty
(48) months from the date of manufacture. Waterlogic Commercial Products, LLC (“Waterlogic”) based in the U.S.A. and its affiliated companies are not liable for any cost of removal, installation, transportation, or any other charges which may arise in connection with a warranty claim. -
Page 13: Service Requirements
5. Clean and sanitize external surfaces of the P2 Classe. Use soap and water or chemicals that are compatible with ABS plastic and will not damage or degrade the product surfaces. -
Page 14: Replacement Components (Consumables)
12-2350 CAUTION! Use only Waterlogic Replacement parts that can be obtained from Waterlogic or an Authorized Waterlogic Dealer, failure to do so will void the Warranty. See Installation and Service Manual for additional information. Surface Cleaning Clean on a regular basis with damp lint free cloth. Never use harsh chemicals (alcohol or acid based) or abrasive agents on any part of the product to avoid damage. -
Page 15: Drawings And Parts List
P2 CLASSE DRAWING AND PARTS LIST Wetted Drawing P2 Classe Manual Page 15 – Revision: 3-2-2021... - Page 16 Classe Micro Switch Cover ST-0267-L00-00 Classe UI Hinge Stopper PU-0027-L00-00 ODL Compensator PL-0243-L00-00 Classe Front Panel EN-0008-LA1-00 13W/15W 120V/60Hz Electronic FX Ballast HoReCa Firewall ST-0238-L00-00 Classe Front Panel ST-0260-L00-00 Classe LED PCB Bracket P2 Classe Manual Page 16 – Revision: 3-2-2021...
- Page 17 Switch - Power (Red) EL-0021-L00-00 WL Cube Fuse 120V 15A with wire EL-5029 Socket for Plug Connection PU-4028 JG Bulkhead Connector Union 1/4" x 1/4" ST-0333-L00-00 Classe Back Electric Fixing Panel (USA) P2 Classe Manual Page 17 – Revision: 3-2-2021...
- Page 18 Classe Ice Bath Bracket CO-0035-L00-00 Classe Micro Channel Condenser ST-0302-L00-00 Classe Micro Channel Condenser Metal Case EN-0091-L00-00 Fan Motor and Blade 120V- M4Q045 -172/34 EN-0092-L00-00 Classe Main Control PCB ST-0251-L00-00 Classe PCB Case P2 Classe Manual Page 18 – Revision: 3-2-2021...
- Page 19 Brass Vane Pump P201 and Pump Motor 120VAC PU-0024-I00-00 JG Straight Adaptor 8mm x 3/8” BSP PU-4089KR Equal Elbow 5/16" x 5/16" CS-0093-L00-00 Classe Bottom Air Filter CO-0042-L00-00 LG Compressor 120V -CMA062LHCM ST-0248-L00-00 Classe Back Bracket – Right P2 Classe Manual Page 19 – Revision: 3-2-2021...
- Page 20 Classe Bracket for Ice Probe ST-0252-L00-00 Classe Ice Probe Bracket PL-0257-L00-00 Classe Bracket for Ice Probe Down ST-0255-L00-00 Classe Ice Bath Top Bracket PL-0244-L00-00 Classe Separating Plate for Cooling/Water Pipe ST-0268-L00-00 Classe water Float Bracket P2 Classe Manual Page 20 – Revision: 3-2-2021...
- Page 21 Classe Cooling Pipe Fixing Pin PL-0246-L00-00 Classe Ice Bath Box ST-0270-L00-00 Classe Pipe Bottom Metal Separator SEE DIAGRAM CT-0038-I00-00 Classe SUS304 Gas Cooling Pipe SEE DIAGRAM CT-0037-I00-00 Classe SUS304 Water Cooling Pipe P2 Classe Manual Page 21 – Revision: 3-2-2021...
- Page 22 ST-0254-L00-00 Classe Sparkling Tank Bracket SEE DIAGRAM PL-0254-L00-00 Classe Bottle Guide PL-0281-L00-00 Drip Tray Floater Universal ST-0242-L00-00 Classe Drip Tray Grill ST-0243-L00-00 Classe Drip Tray Body ST-0263-L00-00 Classe Drip Tray Body support P2 Classe Manual Page 22 – Revision: 3-2-2021...
- Page 23 CT-2085-LA0-00 15W LTFW XTM UV Lamp – 80 PU-4137 JG 3/8” x 1/4" Reducing Fitting FW-0034-L00-00 HoReCa FW Spiral Quartz Sleeve FW-0044-L00-00 HoReCa FW Housing FU-0011 UVC Sensor Fixing Metal Bracket Brack P2 Classe Manual Page 23 – Revision: 3-2-2021...
- Page 24 JG Equal Tee Connector 1/4" PU-4031 JG LLD PE Tube - Blue O.D. 1/4" PU-0021-I00-00 MS DC Solenoid Valve SWV24-02 Terminal at Inlet PU-4008 JG Equal Elbow Connector 1/4" PU-4011 JG Equal Tee Connector 1/4" P2 Classe Manual Page 24 – Revision: 3-2-2021...
- Page 25 JG LLDPE Tube - Blue 8mm Import PU-4089KR JG Equal Elbow 5/16" x 5/16" PU-4014 JG LLDPE Tube - Blue 8mm Import PU-4089KR JG Equal Elbow 5/16" x 5/16" PU-4014 JG LLDPE Tube - Blue 8mm Import P2 Classe Manual Page 25 – Revision: 3-2-2021...
- Page 26 JG LLD PE Tube - Blue O.D. 1/4" PU-0025-I00-00 JG Straight Adaptor 1/4" x 1/4" EN-0096-L00-00 Gicar Flow Counter FMPL-F-L-G1/4 d.3.7 PU-0025-I00-00 JG Straight Adaptor 1/4" x 1/4” PU-4031 JG LLD PE Tube - Blue O.D. 1/4" P2 Classe Manual Page 26 – Revision: 3-2-2021...
- Page 27 JG Equal Tee Connector 1/4" PU-4031 JG LLD PE Tube - Blue O.D. 1/4" PU-4066 JG Stem Elbow Connector 1/4" x 1/4" PU-4137 JG 3/8" x 1/4" Reducing Fitting FW-0034-L00-00 HORECA FW Sprial Quartz Sleeve P2 Classe Manual Page 27 – Revision: 3-2-2021...
- Page 28 JG Equal Elbow Connector 1/4" PU-4031 JG LLD PE Tube - Blue O.D. 1/4” PU-0025-I00-00 JG Straight Adaptor 1/4" x 1/4" EN-0096-L00-00 Gicar Flow Counter FMPL-F-L-G1/4 d.3.7 PU-0025-I00-00 JG Straight Adaptor 1/4" x 1/4” P2 Classe Manual Page 28 – Revision: 3-2-2021...
- Page 29 MS DC Solenoid Valve SWV24-02 Terminal at Inlet PU-4008 JG Equal Elbow Connector 1/4" PU-4031 JG LLD PE Tube - Blue O.D. 1/4" PU-0028-I00-00 Sparkling Safety Valve Kit CT-0040-I00-00 Classe Sparkling Tank P2 Classe Manual Page 29 – Revision: 3-2-2021...
-
Page 30: Flow Diagram
P2 CLASSE WATER FLOW DIAGRAM P2 Classe Manual Page 30 – Revision: 3-2-2021... -
Page 31: Electrical Schematic
P2 CLASSE ELECTRICAL DIAGRAM DANGER! HIGH VOLTAGE ELECTRICAL HAZARD. PCB (Printed Circuit Board) contains High Voltage. Only trained and qualified technicians should attempt live testing. P2 Classe Manual Page 31 – Revision: 3-2-2021... -
Page 32: Pre-Installation Procedures
Only qualified personnel who have read and understand this entire manual should attempt to install, or service this P2 Classe, failure to do so could result in death or serious injury. DO NOT plug into an electrical supply until specifically instructed. -
Page 33: Installation And Flushing Instructions
WARNING! USE ONLY Waterlogic SUPPLIED POWER CORD. Locate system within 5 feet of power supply. Never use an extension cord or adapter. Do not use a damaged power cord or plug. Keep power cord out of heavy traffic areas and away from heat sources. Do not, under any circumstances, remove ground prong or alter the power cord. - Page 34 Switches have internal LED that illuminates when placed in I=ON position. 4. Connect the power cord to the back of the Waterlogic P2 Classe and to a 120 Volt supply. Turn Red Compressor Switch to the I=ON position to power the unit.
- Page 35 12. This is important to allow proper airflow and heat exchange of refrigeration system. 13. Be sure to lock the adjustable feet of the P2 Classe. Never install on an incline. 14. When the P2 Classe has reached its Cold Temp Set Point Temperature, the compressor will cycle off.
-
Page 36: Draining Procedure
3. Close the valve on the CO bottle. 4. To drain the P2 Classe Ice Bath, remove the 1/4” plug, that is inserted into the drain bulkhead located on the rear of the machine. *Upon removal of the plug, water will begin draining from the ice bath. -
Page 37: Adjusting The Gas Blend
2. Using a wide flathead screwdriver (NOT A PHILLIPS), turn the adjustment point clockwise to dial back the gas or counter-clockwise to increase the gas blend. Adjust until a smooth stream is achieved. P2 Classe Manual Page 37 – Revision: 3-2-2021...
