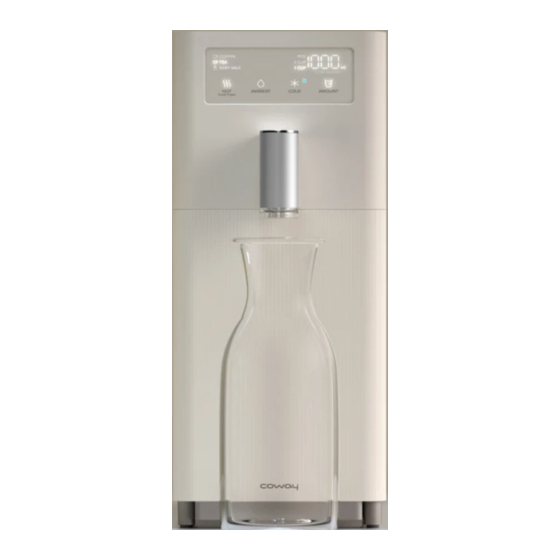

Water Purifier CHP-6200N
• This product cannot be used if the voltage is different from that mentioned in the rating plate.
• For your safety and proper use of the product, please read this User's Manual before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHP-6200N and is the answer not in the manual?

Questions and answers

Related Manuals for Coway CHP-6200N

Summary of Contents for Coway CHP-6200N

  • Page 1 Water Purifier CHP-6200N • This product cannot be used if the voltage is different from that mentioned in the rating plate. • For your safety and proper use of the product, please read this User’s Manual before use.
  • Page 2 FEATURES Direct water purification system Nanotrap™ Filter removes particulates in drinking water, waterborne microorganisms, bacteria and virus. Plus Inno-Sense Filter(D) improves the taste of water by removing pollutants, such as odor-causing substances, soluble contaminant, chlorine and volatile organic compounds (VOC’s). Direct water purification system has been applied for more hygienic use.

  • Page 3: Table Of Contents

    DEAR CUSTOMERS Coway Water Purifier. Thank you for using Please read this User Manual to learn about proper usage and maintenance of the product. When a problem occurs while using the product, it can be solved by referring to the instructions in this manual.

  • Page 4: Safety Information

    SAFETY INFORMATION Be careful to keep this safety information. Please read this information to prevent property loss and ensure your safety. for 220 V - 240 V , 50 Hz use only Danger : Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 5 • Connect the tap water to the cold water tubing. • Please lock the tap water valve and disconnect the power plug and contact the service center if there is water leakage from inside the product or if water is puddling around the product. •...
  • Page 6 SAFETY INFORMATION Warning : Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. • Do not apply excessive force or impact to the product. • Do not install the product on a tilted surface. Do not apply excessive force or impact to the product.
  • Page 7 Caution : Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or damage to the product or other properties. • Use tap water as source water. ① Use tap water that is suitable for drinking as source water. ②...

  • Page 8: Parts Name

    PARTS NAME Front/Rear Control Panel /Indicators Extraction Button Faucet Tray Top Cover Power Cord Radiator Grill Accessories User Manual Fitting Clips Distance Keeping Pole Distance Keeping Guide - Tools for cleaning the product and for filter replacement are not provided along with the product. - Product servicing by specialists is provided to rental and membership customers.

  • Page 9: Water Purification Process

    WATER PURIFICATION PROCESS The essence of the water purification system lies in the filters. Using an uncertified filter; or even using a certified yet expired filter may reduce filter performance. 2-Step Water Purification System (CHP-6200N) : Nanotrap™ Filter Step 1 Nanotrap™...
  • Page 10 CHECK BEFORE USE Please check before use! This product is for 220 V - 240 V~, 50 Hz. Make sure to connect the power plug to a grounded 220 V - 240 V~, 50 Hz outlet. It requires a power supply to operate. Open the tap water supply valve.
  • Page 11 BUTTONS AND INDICATORS Indicators Hot Water Low Water Indicator Indicator Ambient Water Extraction Amount Indicator Indicator Cold Water Hot Water Lock Indicator Indicator Cold Water Temperature Indicator Hot Water Indicator Ambient Water Indicator The indicator lights up when The indicator lights up when hot water is selected.
  • Page 12 BUTTONS AND INDICATORS Buttons Extraction Amount Button Hot Water Ambient Cold Water Button Water Button Button Extraction Button Hot Water Button Ambient Water Button Use when you wish to extract hot water. Press it when you wish to extract Each time you press the button, you can ambient water.
  • Page 13 If you wish to use the fixed amount extraction function  You can touch the fixed amount extraction button in succession to switch between 4 options : 1 cup (250 ml), 2 cups (500 ml), POT (1 000 ml) and Con(Continuous extraction for about 3 minutes).
  • Page 14 BUTTONS AND INDICATORS To use the mute function  5 sec. If you touch the ambient water button and the fixed amount extraction button for more than 5 seconds, the mute function is activated. When the mute function is activated, the alarm does not ring even when you touch the lock/clean/cold/hot extract button or when the extraction is completed or switched to the continuous extraction.
  • Page 15 HOW TO GET THE DESIRED WATER How to Get Hot Water - The fixed amount extraction method Touch the hot water button and select the desired extraction amount with the extraction amount button. Press the extraction button, and hot water is extracted according to the selected quantity. During extraction, if you press the extraction button again, then extraction is stopped (250 ml, 500 ml, 1 000 ml, and continuous extraction can be selected, in that order).
  • Page 16 HOW TO GET THE DESIRED WATER How to Get Ambient Water - Fixed Amount Extraction Method Touch the ambient water button and select the desired extraction amount with the extraction amount button. Press the extraction button, and ambient water is extracted according to the selected quantity. During extraction, if you press the extraction button again, then extraction is stopped (250 ml, 500 ml, 1 000 ml, and continuous extraction can be selected, in that order).

  • Page 17: How To Install

    HOW TO INSTALL Installation Guide Tap Water Supply Valve Only for 220 V - 240 V~, 50 Hz Connect the orange inlet for the tap water supply hose 1 to the tap water pipe. Connect the drain connection 2. (COLD OUT 3) INLET : Tap water supplying hose (Orange) tubing COLD WATER OUTLET : Fitting HOT WATER OUTLET : Drain (Grey) Connection...
  • Page 18 HOW TO INSTALL Installation Guide If the components above are not installed, it may compromise on cooling performance. Tips...
  • Page 19 Caution! Place for Installing Water Purifier I Avoid installing the water purifier in an area with uneven surface, extreme humidity, extreme light exposure, extreme dust exposure, and water exposure, etc. Place for Installing Water Purifier II Keep the radiator grill at the rear of the product at least 10 cm away from the wall and make sure that the installation floor is firm.

  • Page 20: How To Clean

    HOW TO CLEAN How to Clean the Tray 1. How to take out the tray The front of the tray can be easily separated by lifting it up slightly. Separate the tray and wipe the inside and outside with a cloth. 2.
  • Page 21 How to Clean the Faucet 1. Detach the faucet by turning it counter clockwise. 2. Rinse the faucet with water. 3. After rinsing, wipe the faucet with a soft, dry cloth. 4. Attach the faucet back by turning it clockwise.
  • Page 22 HOW TO CLEAN How to Drain the Internal Water Tank 1. Close the connection valve and press the cold water button at the front of the product for about 5 sec to turn off the cold water function. 2. Remove the cold water drain cap at the rear of the product to completely drain the water from the cold water tank.
  • Page 23 How to Clean the Rear Mesh 1. How to remove the rear mesh Put a finger in the upper groove of the mesh and pull it to remove. Clean the mesh with a cloth and water. ▶ 2. How to assemble the rear mesh Insert the mesh into the lower groove of the product and then push the mesh toward the product.

  • Page 24: Filter Replacement

    The filter change cycle may vary within the range of expected replacement cycle depending on the source water quality. The period for filter change is calculated based on 10 L water usage per day for a household of 4 members. Tips CHP-6200N Filter Name Expected Replacement Cycle Nanotrap™ Filter...
  • Page 25 HOW TO REPLACE FILTER Replace the Filter! 1. Detach the faucet by turning it counter clockwise. 2. Remove the filter cover on the front. 3. Shut off the tap water valve (rotate 90 degrees in the direction of CLOSE). 4. Please take out the filter by lifting the filter holder.
  • Page 26 HOW TO REPLACE FILTER 5. Insert the new filter in the appropriate order of the filters. 6. Check that the filter holder comes down for a secure fit. Then, open the tap water valve (Rotate 90 degrees in the direction of OPEN). 7.

  • Page 27: Troubleshooting

    TROUBLESHOOTING The water purifier may operate abnormally because the user is unfamiliar with the product or due to some other reasons and not because of a product malfunction. In such a case, problems can be easily solved without help from the service center by checking the following. If the problem is not solved after checking the following, please call the service center.

  • Page 28: Specifications

    ▶ Product design and specifications are regulated by law and are subject to change without prior notice to improve the product or its quality. MALAYSIA Add: COWAY (M) SDN. BHD Level 20, Ilham Tower, No. 8, Jalan Binjai, 50450 Kuala Lumpur.

  • Page 29: Water Flow Diagram

    WATER FLOW DIAGRAM CHP-6200N FEED Valve Direct Connection Direct Connection Drinking Water Extraction Locker-Filter NOS Valve Cold Water No Hand Elbow Valve Module Instant Hot Water Heater Water Flow Sensor Water Flow Control Valve Instant Hot Water Drain Water Source Input...
  • Page 30 MEMO...
  • Page 31 MEMO...
  • Page 32 9235363 www.coway.com...
