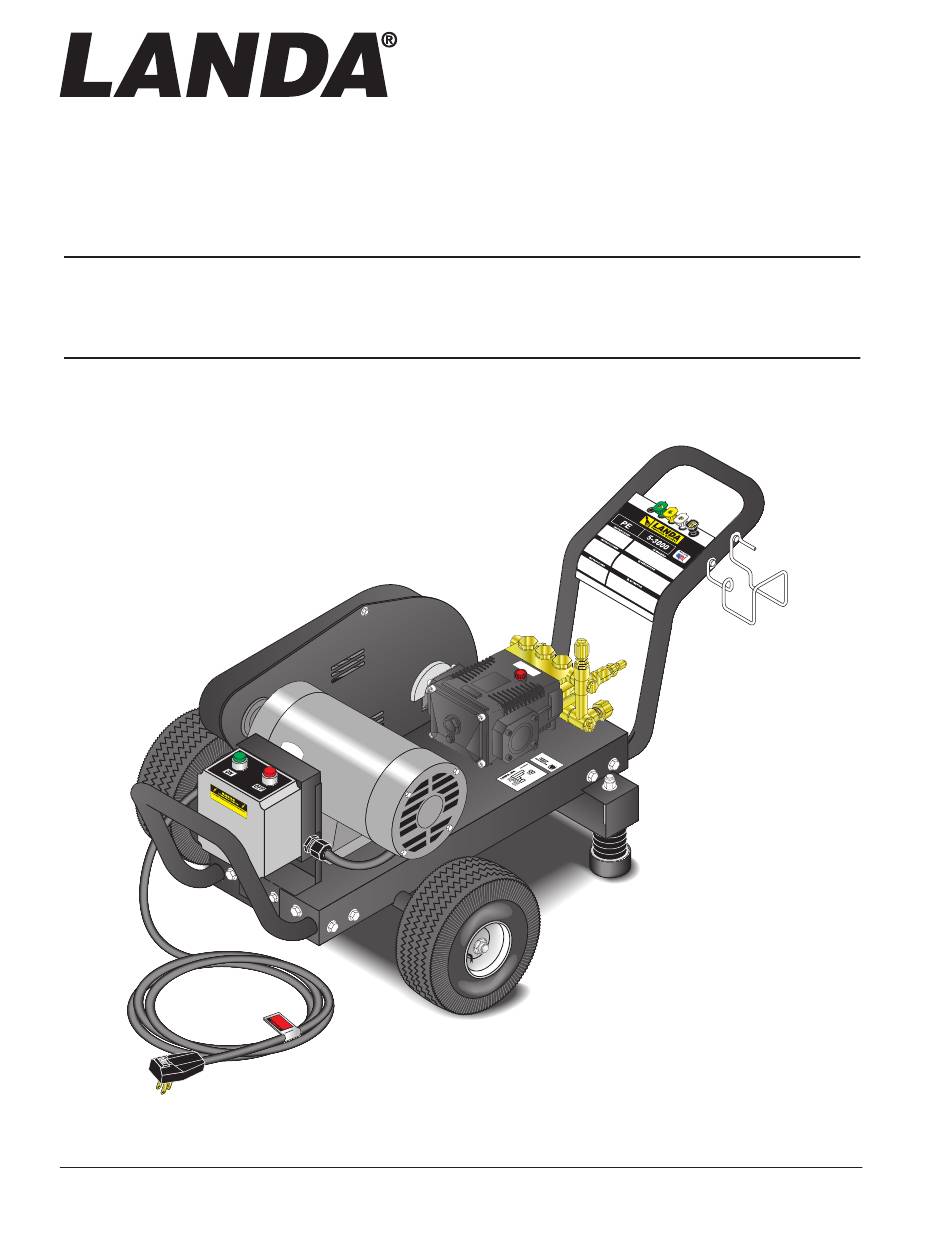

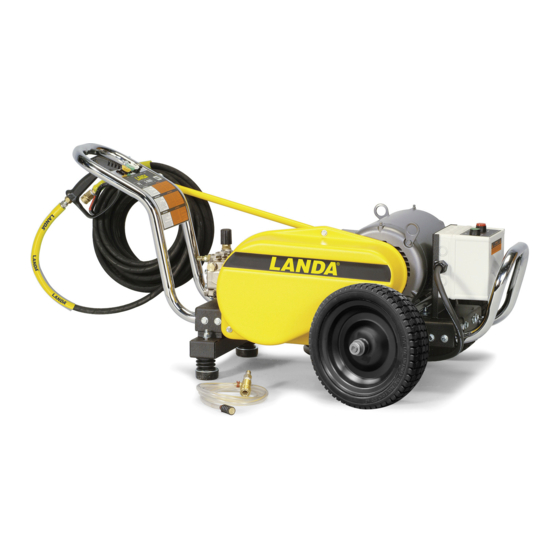

- Page 1 OPERATOR’S MANUAL ■ PE2A-1500 ■ PE3-1100 ■ PE4-2000 ■ PE4-3000 ■ PE5-3000 For technical assistance or the dealer nearest you consult our web page at www.landa.com 8.913-998.0 - B (10/20)
-
Page 2: Table Of Contents
Date of Purchase ____________________________ The model and serial numbers will be found on a decal attached to the pressure washer. You should record both serial number and date of purchase and keep in a safe place for future reference. LANDA PE 8.913-998.0... -
Page 3: Introduction
250 volts or less, single phase will be provided with a ground fault circuit interrupter (GFCI). If rated more than 250 volts, or more than single phase this product should only be connected to a power supply receptacle protected by a GFCI. LANDA PE 8.913-998.0... - Page 4 Failure to protect machine from freezing could PROTECT FROM cause malfunction of the FREEZING machine and result in death, serious bodily injury, and/or property damage. Fol- low storage instructions specified in this manual. LANDA PE 8.913-998.0...
-
Page 5: Component Identification
This system prevents internal pump damage. Pump - Develops high pressure. Pump Protector - Cycles fresh cool water through pump when recirculating water reaches 140°F. LANDA PE 8.913-998.0... -
Page 6: Assembly Instructions
Use 30 wt. (non detergent) oil. Pump Garden Water Inlet Hose STEP 7: Check inlet filters, re- move debris, then connect the garden hose to pump water inlet. CAUTION: Do not run the pump without water or pump damage will result. LANDA PE 8.913-998.0... -
Page 7: Operating Instructions
NOTE: For a more gentle rinse, select the white 40° or green 25° nozzle. To scour the surface, select the yellow 15° nozzle. To apply detergent select the black nozzle. LANDA PE 8.913-998.0... -
Page 8: Detergents And General Operating Techniques
Select and install desired high pres- into a bucket of clean water, then run the pressure sure nozzle. NOTE: You can also stop detergent from washer in low pressure for 1-2 minutes. flowing by removing detergent siphon tube from bottle. LANDA PE 8.913-998.0... -
Page 9: Shut Down And Clean-Up
Squeeze the trigger of the spray gun to drain all water from the wand and hose. 2. Restart pressure washer and let it run briefly (about 5 seconds) until water no longer discharges from the high pressure outlet. LANDA PE 8.913-998.0... -
Page 10: Troubleshooting
Turn machine off if not in use for over over 5 minutes 1-2 minutes. OIL DRIPPING Oil seal worn Check and replace if necessary. EXCESSIVE VIBRATION Irregular functioning of the pump Check and replace if necessary. IN HIGH-PRESSURE valves HOSE LANDA PE 8.913-998.0... - Page 11 Clean bearing cavity and bearing. Repack with correct grease until cavity is approximate- ly 3/4 filled. GROWLING OR Bad bearing Replace bearing. Clean all grease from cavity WHINING and new bearing. Repack with correct grease until cavity is approximately 3/4 filled. LANDA PE 8.913-998.0...
-
Page 12: Preventative Maintenance
Shell Dolium R (Factory installed) or Chevron SRI. OIL CHANGE RECORD Date Oil Changed Estimated Operating Date Oil Changed Estimated Operating Month/Day/Year Hours Since Last Month/Day/Year Hours Since Last Oil Change Oil Change LANDA PE 8.913-998.0... -
Page 13: Exploded View
EXPLODED VIEW 39, 77, 106 Model PE3-11024 PE4-3000A 50 49 62,109 38,39 42,95, 96,104 PE2A-15024 39 106 PE3-11024 39, 106 38,39 LANDA PE 8.913-998.0... - Page 14 EXPLODED VIEW PE2A-15024 PE2A-15024 To Electric PE3-11024D LANDA PE 8.913-998.0...
-
Page 15: Exploded View Parts List
Cord, w/Gfci, 120V/20 Amp, 36' (3-11024D, 2A-15024) 9.802-810.0 Washer, Flat, SAE, 5/8" 9.802-429.0 Cord, Service 12/4 (PE4-3000) (4-20024B,C; 4-30024C; (All Other PE Models) 5-30024C) 15 ft 8.758-460.0 Wheel 12 In. Rim Steel 9.802-430.0 Cord w/GFCI, 240V/30 Amp 8.754-186.0 Qh Wheel Assy, 10"... - Page 16 EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.712-398.0 Nozzle, Brass, Soap ▲Label, PE(Except 2A-15024) 1 8.900-246.0 ▲Label, 3-1100 8.757-203.0 Swivel, 1/2" M-NPTF x 3/4" 8.900-403.0 ▲Label, 4-2000 8.900-409.0 ▲Label, 4-3000 8.900-411.0 9.800-013.0 Label, Indoor Use ▲Label, 5-3000...
- Page 17 Nut, 5/16" Whiz Loc, Flange 2 ▲Strain Relief, Watertite 9.802-518.0 (3-11024D; 4-20024A,B,C; 4-30024B,C; ) ▲Strain Relief, 1" Metal 9.803-279.0 (4-30024A, 5-30024C) 8.716-565.0 Strain Relief, 1" (5-30024B) 1 9.803-280.0 Locknut, 1"(4-30024A; 5-30024B,C) 9.802-521.0 Strain Relief, 3/4 Watertight (4-30024A) LANDA PE 8.913-998.0...
-
Page 18: Specifications
LT6036 8.921-712.0 8.750-299.0 2BK80H 8.715-592.0 25MM 9.802-403.0 7.5HP 230V/3PH 4-30024C LT6036 8.921-712.0 8.750-299.0 2BK80H 8.715-592.0 25MM 9.802-403.0 7.5HP 460V/3PH 5-30024B LT6036 8.921-712.0 8.750-299.0 2BK60H 9.802-387.0 25MM 9.802-403.0 10HP 230V/3PH 5-30024C LT6036 8.921-712.0 8.750-299.0 2BK60H 9.802-387.0 25MM 9.802-403.0 10HP 460V/3PH LANDA PE 8.913-998.0... - Page 19 BX38 (2) 9.802-417.0 8.724-273.0 8.724-304.0 4-30024C 8.755-604.0 2BK40H 9.802-384.0 HX1-3/8" 9.802-401.0 BX38 (2) 9.802-417.0 8.724-271.0 8.724-312.0 5-30024B 8.755-605.0 2BK36H 9.802-383.0 HX1-3/8" 9.802-401.0 BX38 (2) 9.802-417.0 8.724-277.0 8.724-305.0 5-30024C 8.755-605.0 2BK36H 9.802-383.0 HX1-3/8" 9.802-401.0 BX38 (2) 9.802-417.0 8.724-278.0 8.724-312.0 LANDA PE 8.913-998.0...
-
Page 20: Hose & Spray Gun
Hose, 3/8" X 50' 2W 6000PSI SW/SO/CPL (PE4-30 and PE5-30 models) 8.925-130.0 Hose, 3/8" X 50' 1W 4000PSI SW/SO/CPL (PE3-11, PE2A-15024 and PE4-20 models) 8.751-234.0 Gun, Landa, 5000 PSI, 10.4 GPM 8.904-430.0 Wand, Straight, Assy (This assembly contains the items 5,6,10) 8.711-293.0 Wand, VP ZNC1/4 AL 344 W/Cplr W/Soap Nzz (2A-15024) 8.711-279.0... -
Page 21: Lb Pump Exploded View And Parts List
O-ring Ø1.78 X 18.77 9.803-167.0 Key, Crankshaft 9.803-949.0 Valve Plug 8.754-219.0 Oil Dipstick 8.754-851.0 Plug, Brass G1/4 8.933-010.0 Seal, Crankshaft 8.718-973.0 Washer, Copper G1/4 8.754-854.0 Bolt, Manifold M14 X 40 8.754-850.0 Washer, Lock 9.803-380.0 • Rev. 5/15 LANDA PE 8.913-998.0... - Page 22 Kit Description Plunger Oil 16mm 16mm Pluger 16 mm Complete Valve Seals ITEM NUMBERS 4, 6, 8 4, 5, 6, 7, 8 36, 37, 38, 39 12, 13, 14 INCLUDED NUMBER OF CYLINDERS KIT WILL SER- VICE LANDA PE 8.913-998.0...
-
Page 23: Pump Exploded View And Parts List
13* 9.803-193.0 O-Ring 3068 8.752-834.0 Oil Dipstick 9.802-928.0 Valve Plug 9.803-139.0 Crankshaft Seal 8.753-817.0 Manifould Stud Bolt 9.803-177.0 Shim 9.802-890.0 Lock Washer 9.803-181.0 Bearing Housing 8.719-008.0 Cooper Washer 3/8 34* 8.752-841.0 Plunger Bolt 8.707-262.0 Brass Plug 3/8 LANDA PE 8.913-998.0... - Page 24 8.753-821.0 8.753-822.0 8.753-823.0 8.753-824.0 8.752-835.0 REPAIR KIT NUMBER Plunger Seal Seal Packing KIT DESCRIPTION 18mm 18mm Plunger 18mm Complete Valve Plunger Oil Seals ITEM NUMBERS 3,5,7 3,4,5,6,7 34,35,36,37 11,12,13 INCLUDED NUMBER OF CYLIN- DERS KIT WILL SERVICE LANDA PE 8.913-998.0...
-
Page 25: Vrt3 Unloader Exploded View And Parts List
(“spike”). This “spike” SHOULD NOT exceed 500 psi above the operating pressure. If “spike” pres- sure exceeds the 500 psi limit, remove the adjusting knob (Item 18) and re-adjust (lower) the nuts (Items 15) on the stem (Item 8). Re-attach the adjusting knob (Item 18), then repeat step #6. LANDA PE 8.913-998.0... -
Page 26: Vbt Banjo Unloader Exploded View And Parts List
* Included in Kit 9.803-919.0 Banjo Bolt 3/8 Kit A 8.754-941.0 O-Ring Repair Kit 8.754-936.0 O-ring, Ø2.62 x 10.78 Kit B 8.754-942.0 Outlet Repair Kit 9.803-920.0 Banjo Bolt, 1/2, w/1/4" Port Kit C 8.754-957.0 Stem Repair Kit LANDA PE 8.913-998.0... - Page 28 Form # 8.913-998.0 • Revised 10/20 • Printed in U.S.A. or Mexico...
