Summary of Contents for Landa PC3-2400

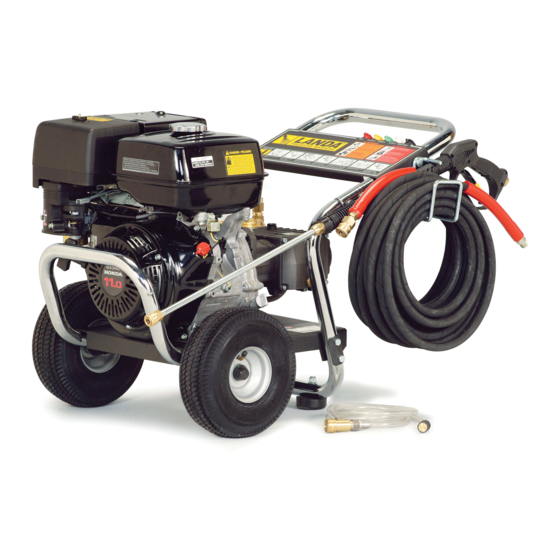

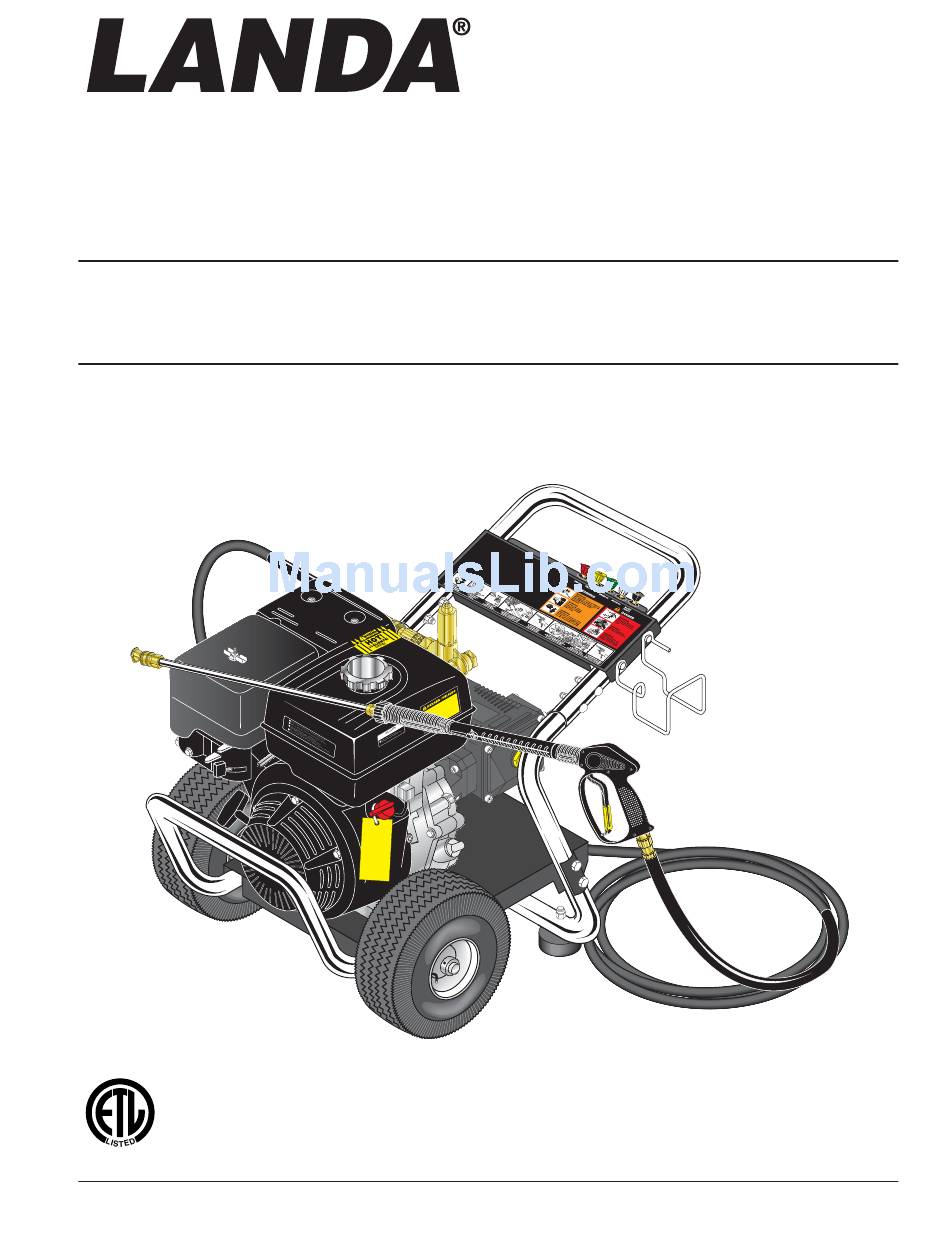

- Page 1 OPERATOR’S MANUAL ■ PC3-2400 ■ PC3-2700 ■ PC3-3000 ■ PC4-3500 ® For technical assistance or the dealer nearest you consult our web page at www.landa.com 8.913-995.0...
-
Page 2: Table Of Contents
The model and serial numbers will be found on a decal attached to the pressure washer. You should record both serial number and date of purchase and keep in a safe place for future reference. 8.913-995.0 • Landa PC • Rev. 03/11... -
Page 3: Important Safety Information
WARNING: Risk of injury. Disconnect battery Contact your electrician, plumber, utility company ground terminal before servicing. or the selling distributor for specifi c details. 8. Transport/repair with fuel tank EMPTY or with fuel shut-off valve OFF. 8.913-995.0 • Landa PC • Rev. 03/11... - Page 4 Do not allow children to operate the pressure washer. 22. Never run pump dry or leave spray gun closed longer than 1-2 minutes. Follow the maintenance instructions speci- fi ed in the manual. 8.913-995.0 • Landa PC • Rev. 03/11...
-
Page 5: Component Identifi Cation
Detergent Injector — Allows you to siphon and mix water will discharge from pump protector onto detergents. fl oor. This system prevents internal pump dam- Wand — Must be connected to the spray gun. age. 8.913-995.0 • Landa PC • Rev. 03/11... -
Page 6: Assembly Instructions
Pump Water Inlet STEP 10: Check inlets fi lters, remove debris, then connect the garden hose to pump water inlet. CAUTION: Do not run the pump without water or pump damage will result. 8.913-995.0 • Landa PC • Rev. 03/11... -
Page 7: Operating Instructions
When the engine is not in use, leave the fuel valve in run position). Move the choke lever to the "Closed" the "OFF" position. position. To restart a warm engine, leave the choke lever in the "Open" position. 8.913-995.0 • Landa PC • Rev. 03/11... - Page 8 NOTE: For a more gentle rinse, select the white 40° or green 25° nozzle. To scour the surface, select the yellow 15° or red 0° nozzle. To apply de- tergent select the black nozzle. 8.913-995.0 • Landa PC • Rev. 03/11...
-
Page 9: Applying Detergent And General Operating Techniques
1-2 minutes. nozzle from the quick coupler. Select and install the desired high pressure nozzle. NOTE: You can also stop detergent from fl owing by simply removing detergent siphon tube from bottle. 8.913-995.0 • Landa PC • Rev. 03/11... -
Page 10: Shut Down And Clean-Up
NOTE: Refer to the 3. Pour about one teaspoon of engine oil through engine manufacturer's manual for service and mainte- the spark plug hole, pull the starter grip several nance of the engine. 8.913-995.0 • Landa PC • Rev. 03/11... -
Page 11: Troubleshooting
Change oil. Direct spray away from machine. WATER IN PUMP OIL High humidity in air Check and change oil twice as often. (All models except 23326). Piston packing worn. Oil seal worn. Call local distributor. 8.913-995.0 • Landa PC • Rev. 03/11... - Page 12 Pump is sucking air Check that hoses and fi ttings are air tight. Turn off machine and purge pump by squeezing trigger gun until a steady fl ow of water emerges through nozzle. 8.913-995.0 • Landa PC • Rev. 03/11...
-
Page 13: Preventative Maintenance
Check pump oil (all models except 3-23326) and engine oil level before fi rst use of your new pressure washer. Estimated Operating Estimated Operating Date Oil Changed Hours Since Last Date Oil Changed Hours Since Last Month/Day/Year Oil Change Month/Day/Year Oil Change 8.913-995.0 • Landa PC • Rev. 03/11... -
Page 14: Exploded View
Th y be s for en cie n Re te Sp Ar res e Ag Cr ea ca l ev en A Sp ct Lo e Pr lat ing Models 3-24324, 3-27324 8.913-995.0 • Landa PC • Rev. 03/11... -
Page 15: Exploded View Parts List
Wand, 18" M22 x 1/4" QC 9.802-712.0 Bolt, Carriage, 5/16" x 1-3/4" 8.718-980.0 Washer, 5/16" Flat 9.802-776.0 Nut, 5/16" ESNA, NC 9.803-123.0 Handle, Bumper, Chrome 9.802-103.0 Bushing, 5/8" Snap 9.802-270.0 Wheel & Tire Assy, 4" Steel Rim w/Tube 8.913-995.0 • Landa PC • Rev. 03/11... - Page 16 (3-24324, 3-27324) 9.197-003.0 Nut, 3/8" ESNA, NC (3-30124, 3-35324) 8.718-980.0 Washer, 5/16" Flat (3-24324, 3-27324) 9.802-807.0 Washer, 3/8" Flat (3-30124, 3-35324) 8.706-854.0 Tee, 1/4" Branch, Male 8.917.015.0 Label, Regulation 4442.6 ▲ Not Shown 8.913-995.0 • Landa PC • Rev. 03/11...
-
Page 17: Specifi Cations
8.715-233.0 LG2530G 9.175-018.0 GX160 (163cc) 9.802-316.0 PC3-27324 2700 8.739-380.0 8.715-233.0 LG2530G 9.175-018.0 GX200 (196cc) 9.802-317.0 PC3-30124 3000 8.739-380.0 8.715-235.0 LG3035G1 9.175-018.0 EX27 (265cc) 8.713-483.0 PC4-35324 3500 8.739-213.0 8.904-906.0 LS4040G-1 9.175-018.0 GX390 (390cc) 8.750-580.0 8.913-995.0 • Landa PC • Rev. 03/11... -
Page 18: Lg1.1 Pump W/1" Hollow Shaft Exploded View And Parts List
Oil Dip Stick 15* 9.803-948.0 O-Ring Ø2.62 x 18.77 9.804-581.0 O-Ring 3.53 x 55.56 9.803-949.0 Valve Plug 9.803-161.0 Needle Roller Bearing 9.803-183.0 Engine Flange 9.803-950.0 Washer, Copper 9.803-951.0 Brass Plug G1/4 9.803-210.0 Spring Washer 8.913-995.0 • Landa PC • Rev. 03/11... - Page 19 Complete Valve 15mm Seal Packing 15mm Seals SCRIPTION ITEM NUM- 3, 4, 5, 47, 48, 49, 50, BERS 3, 5, 7, 8, 9 13, 14, 15 6, 7, 8, 9 51, 52 INCLUDED 8.913-995.0 • Landa PC • Rev. 03/11...
-
Page 20: Lg1 Pump W/3/4" Hollow Shaft Exploded View And Parts List
14* See Kit Below Valve Assembly 9.804-582.0 Needle Roller Bearing 15* 9.803-948.0 O-Ring Ø2.62 x 18.77 8.717-212.0 Engine Flange 9.803-949.0 Valve Plug 9.803-210.0 Spring Washer 9.803-950.0 Washer, Copper 9.804-584.0 Flange Screw 9.803-951.0 Brass Plug G1/4 8.913-995.0 • Landa PC • Rev. 03/11... - Page 21 Seal Packing 15mm Plunger 15mm Complete Valve Seals ITEM NUM- 3, 4, 5, 40, 41, 42, 43, BERS 3, 5, 7, 8, 9 13, 14, 15 6, 7, 8, 9 44, 45 INCLUDED 8.913-995.0 • Landa PC • Rev. 03/11...
-
Page 22: Pump Exploded View And Parts List
9.802-928.0 Valve Plug 9.803-240.0 Flange Screw 9.802-938.0 Manifold Stud Bolt 9.803-243.0 Engine Screw, 5/16" 9.802-884.0 Washer 9.803-215.0 Washer 9.803-198.0 Copper Washer 3/8" 9.802-889.0 Spring Washer 9.802-925.0 Brass Plug 3/8" 9.803-244.0 Engine Screw 3/8" 8.913-995.0 • Landa PC • Rev. 03/11... - Page 23 Seal Packing 15mm Plunger 15mm Complete Valve Plunger Oil Seals ITEM NUM- 47, 48, 49, 50, BERS 4, 6, 8, 9, 10 4, 5, 6, 7, 8, 9, 10 14, 15, 16 51, 52 INCLUDED 8.913-995.0 • Landa PC • Rev. 03/11...
-
Page 24: Uu1 Unloader Exploded View And Parts List
9.196-011.0 Plug 5/8 -18 UNF Kit A 9.104-038.0 O-ring Repair Kit O-ring 12 ID x 2 CS Kit B 9.104-039.0 Outlet Kit O-ring 6 ID X 2 CS Kit C 9.104-040.0 Stem Repair Kit 8.913-995.0 • Landa PC • Rev. 03/11... - Page 25 Authorized LANDA Dealer of the defect. Your Authorized LANDA Dealer will file a claim with Landa, who must subsequently verify the defect. In most cases, the part must be returned to LANDA freight prepaid with the claim. For warranty service on components warranted by other manufacturer’s, your Authorized LANDA Dealer can help you obtain warranty service through these manufacturers’...
- Page 26 Form #8.913-995.0 • Landa PC • Revised 03/11 • Printed in U.S.A. or Mexico...
