Altimium SCA41-BYOD User Manual

18g 4x1 presentation switcher with soft codec & wireless byod
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
SCA41-BYOD
18G 4x1 Presentation Switcher with
Soft Codec & Wireless BYOD
All Rights Reserved
Version: SCA41-BYOD_2019V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCA41-BYOD and is the answer not in the manual?

Questions and answers

Related Manuals for Altimium SCA41-BYOD

Summary of Contents for Altimium SCA41-BYOD

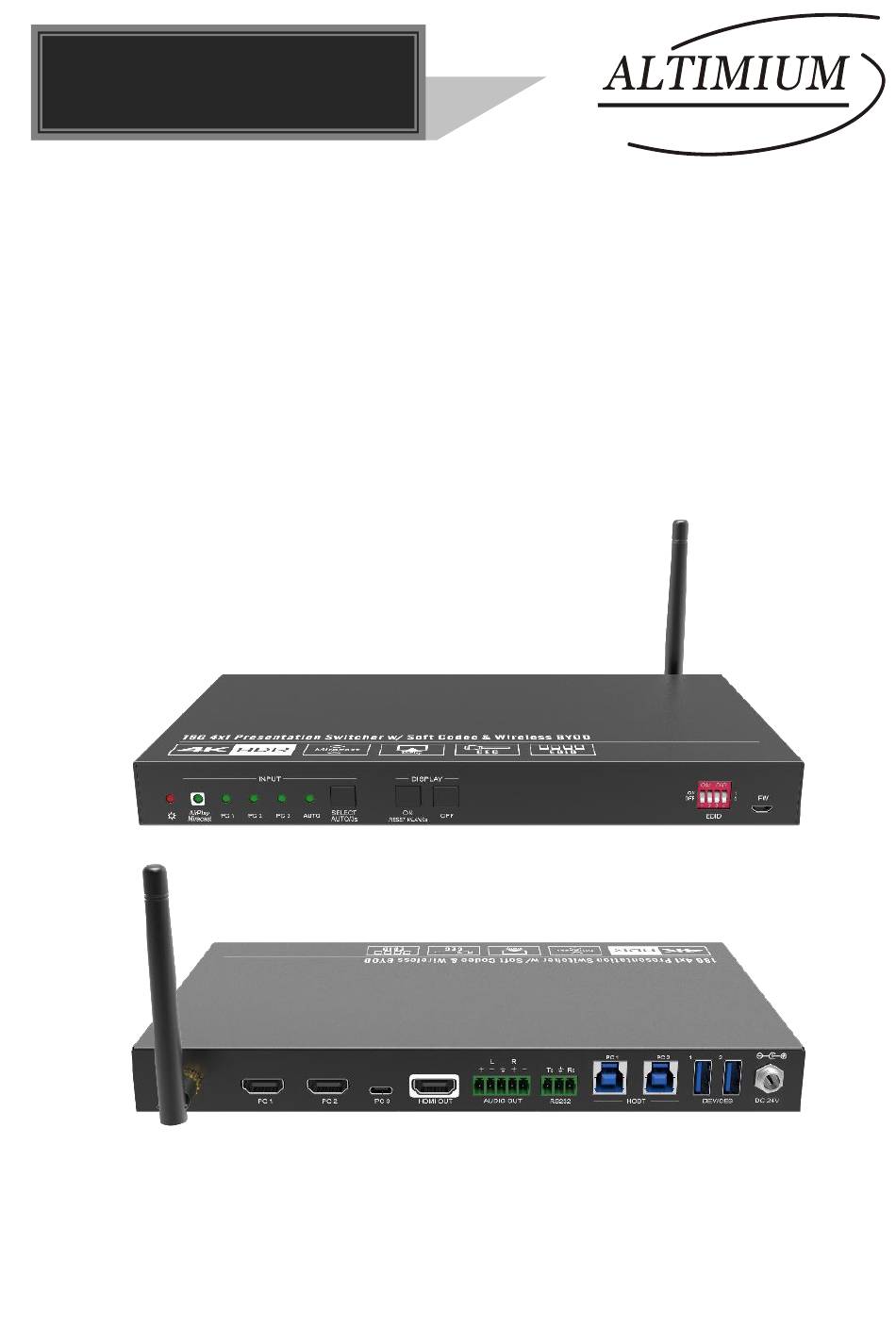

  • Page 1 User Manual SCA41-BYOD 18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD All Rights Reserved Version: SCA41-BYOD_2019V1.0...
  • Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. Altimium www.altimium.com...
  • Page 3 Unplug the power cord when left unused for a long period of time. ⚫ Information on disposal for scrapped devices: do not burn or mix with general ⚫ household waste, and please treat them as normal electrical wastes. Altimium www.altimium.com...

  • Page 4: Table Of Contents

    6.2.2 Source Switching ................... 16 6.2.3 CEC/RS232 Function Setting ..............17 6.2.4 Function Setting ..................18 6.2.5 Special Commands ................19 7. Firmware Upgrade ....................22 8. Panel Drawing ......................23 9. Troubleshooting & Maintenance ................24 10. Customer Service ....................25 Altimium www.altimium.com...

  • Page 5: Product Introduction

    Two type-B USB ports for host connection, and two type-A USB ports for USB ⚫ devices like webcam, mic and keyboard. Supports video source auto-switching. ⚫ Smart EDID management. ⚫ Front panel buttons trigger both CEC and RS232 commands for display control. ⚫ Altimium www.altimium.com...

  • Page 6: Package List

    18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD 1.2 Package List 1x SCA41-BYOD 18G 4x1 Presentation Switcher ⚫ 2x Mounting Ears with 4 Mounting Screws ⚫ 4x Plastic Cushions ⚫ 1x 5-pin Terminal Block ⚫ 1x RS232 Cable (3-pin terminal block to DB9) ⚫...

  • Page 7: Specification

    <0.05dB, 1KHz sine at 0dBFS level (or max level before L-R Level Deviation clipping) 1KΩ and higher (Supports 10x paralleled 10KΩ loads) Output Load Capability Noise Level -80dB Control (1) 4-pin DIP switch, (1) FW, (2) HOST (PC1&PC2), Control port (2) DEVICES, (1) RS232 Altimium www.altimium.com...
  • Page 8 -25 ~ +70℃ Relative Humidity 10% ~ 90% External Power Supply Input: AC 100~240V, 50/60Hz; Output: 24V DC 5A. Power Consumption 85w (Max) USB-C Power Charging 60w (Max) Dimension (W*H*D) 238mm x 24.5mm x 135mm Net Weight 825g Altimium www.altimium.com...

  • Page 9: Panel Description

    ⑥ DISPLAY OFF: Press the button to send Display Off command to turn off the display. Note that the RS232 command needs to be set by user. ⑦ EDID: 4-pin DIP switch for EDID setting. ⑧ FW: Micro USB port for firmware upgrade. Altimium www.altimium.com...

  • Page 10: Rear Panel

    When the HDMI PC2 is selected as video input source, the USB devices are ⚫ switched to control the PC2 host. When the USB-C PC3 is selected as video input source, the USB devices are ⚫ switched to control the USB-C PC3. ⑨ DC 24V: DC connector for power adapter connection. Altimium www.altimium.com...

  • Page 11: System Connection

    Android / Windows 8.1 or later version macOS MacOS / iOS Laptop USB: HDMI: PC 1 PC 2 Audio: USB-C: PC 1 PC 2 PC 3 HDMI OUT AUDIO OUT RS232 HOST DEVICES DC 24V Laptop RS232: MacBook Projector Amplifier Keyboard Mouse Altimium www.altimium.com...

  • Page 12: Miracast/Airplay Connection

    Here take iPhone, Samsung Android and Win10 Notebook as examples to introduce the connection of wireless projection. When switch to the Miracast/Airplay input by pressing the SELECT AUTO/3s button, the Wi-Fi SSID and password will be showed on the display device. SSID: ScreenSharing XXXXXX Password: 12345678 Altimium www.altimium.com...
  • Page 13 18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD ⚫ Take iPhone as an example: Connect the Apple iPhone to the Wi-Fi. Slide the iPhone screen to enter Control Center, and click the Screen Mirroring, and then click the SSID for screen mirroring. Altimium www.altimium.com...
  • Page 14 18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD ⚫ Take Samsung Android as an example: Slide down the Android screen and click Smart View, then click the SSID for screen mirroring. Altimium www.altimium.com...
  • Page 15 18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD ⚫ Take Win10 Notebook as an example: Press Winkey + P on keyboard, and then click Connect to a wireless display in the pop-up window. Click the SSID for screen mirroring. Altimium www.altimium.com...

  • Page 16: Front Panel Control

    (default 10mins), automatically send RS232 and CEC commands to turn off the display device. The RS232 command can be set by sending commands, please refer to the 6.2.5 Special Comamnds for more details. Altimium www.altimium.com...

  • Page 17: Edid Setting

    [PARAM]”, please refer to the chapter 6.2.4 Function Setting for 1111 User-defined EDID 5 more details. Stereo: LPCM 2CH. ⚫ High Definition Audio: LPCM 8Ch, AC-3 6Ch, DTS 5.1, Dolby Digital5.1, ⚫ DTS-HD7.1, Dolby TrueHD 7.1 Deep Color: 8bit, 10bit, 12bit ⚫ Altimium www.altimium.com...

  • Page 18: Rs232 Control

    Connect the switcher with all input devices and output devices needed, then to connect it with a PC which is installed with RS232 control software. Double-click the software icon to run this software. Here take the software CommWatch.exe as example: Altimium www.altimium.com...
  • Page 19 Monitoring area, show the commands and its feedback information. Command sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in command sending area. Altimium www.altimium.com...

  • Page 20: Rs232 Command

    6.2.2 Source Switching Command & Feedback Command Description Example Select the input source: #SET_AV A @AV Airplay/Miracast Airplay/Miracast (Default). #SET_AV PC1 Select the input source: PC1. @AV PC1 #SET_AV PC2 Select the input source: PC2. @AV PC2 Altimium www.altimium.com...

  • Page 21: Cec/Rs232 Function Setting

    Get the function setting status of #GET_SYNCACT_RS232 @SYNCACT_RS232 1 automatically sending RS232 commands. Power on display device (Simultaneously #SET_DISPLAY 1 sending CEC and RS232 commands to @DISPLAY 1 display device). #SET_DISPLAY 0 Power off display device (Simultaneously @DISPLAY 0 Altimium www.altimium.com...

  • Page 22: Function Setting

    #SET_SW_HDCP_MODE status. [PARAM]= 0/1. [PARAM] 0 - UNSUPPORT HDCP2.2 @SW_HDCP_MODE 1 1 - SUPPORT HDCP2.2 #GET_SW_HDCP_MODE Get the HDCP2.2 status of input ports. @SW_HDCP_MODE 1 #UPLOAD_USER_EDID Upload the user-defined EDID [PARAM]. #UPLOAD_USER_EDID [PARAM] PARAM = 1 ~ 5 Altimium www.altimium.com...

  • Page 23: Special Commands

    03 - 19200 [PARAM2]:XXXX @DELAY TIME: 30 s 04 - 9600 @DISPLAY ON TO 05 - 4800 SEND:1234567 06 - 2400 ⚫ [PARAM2] = 00~99. The delay time of sending command. ⚫ XXXX: Any ASCII code (up to 48 bytes). Altimium www.altimium.com...
  • Page 24 03 - 19200 [PARAM2]:XXXX @DELAY TIME: 30 s 04 - 9600 @DISPLAY OFF TO 05 - 4800 SEND:ABCDEFG 06 - 2400 ⚫ [PARAM2] = 00~99. The delay time of sending command. ⚫ XXXX: Any ASCII code (up to 48 bytes). Altimium www.altimium.com...
  • Page 25 06 - 2400 SEND:41 42 43 44 45 ⚫ [PARAM2] = 00~99. The delay time of sending command. ⚫ XX XX: Any HEX code (0-9, A-F; up to 20 bytes. It must have a blank between 2 different XX). Altimium www.altimium.com...

  • Page 26: Firmware Upgrade

    (.bin) should be confirm again, and then follow the above steps to update again. 7) Remove the USB cable after firmware upgrade. 8) After firmware upgrade, the switcher should be restored to factory default by sending command. Altimium www.altimium.com...

  • Page 27: Panel Drawing

    18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD 8. Panel Drawing PC 1 PC 2 PC 1 PC 2 PC 3 HDMI OUT AUDIO OUT RS232 HOST DEVICES DC 24V 238.0 mm Altimium www.altimium.com...

  • Page 28: Troubleshooting & Maintenance

    (e.g. a PC) Send it to authorized dealer for through RS232 port Broken RS232 port. checking. Note: If your problem still remaining after following the above troubleshooting steps, please contact your local dealer or distributor for further assistance. Altimium www.altimium.com...

  • Page 29: Customer Service

    Remarks: Please contact your local distributor for further assistance or solution Altimium www.altimium.com...
  • Page 32 ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
