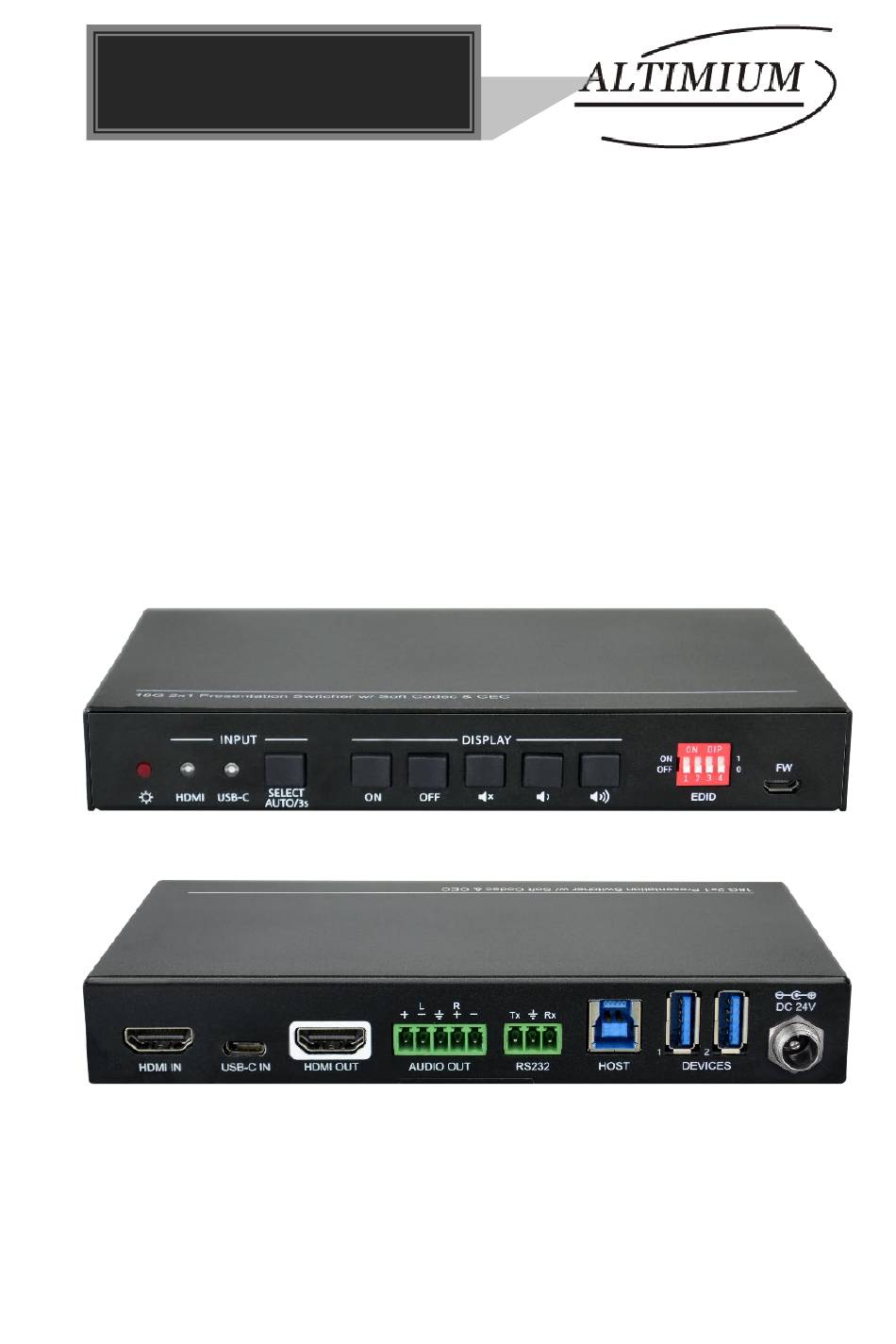

- Page 1 User Manual SCA21HE-CODEC 18G 2x1 Presentation Switcher with Soft Codec and CEC All Rights Reserved Version: SCA21HE-CODEC_2019V1.3...
- Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. www.altimium.com...
- Page 3 Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. www.altimium.com...
-
Page 4: Table Of Contents
6.2.4 Switcher Baud Rate Setting ..............13 6.2.5 CEC/RS232 Function Setting ..............14 6.2.6 Display Control ..................15 6.2.7 Third-party Device Control ..............16 7. Panel Drawing ......................21 8. Troubleshooting & Maintenance ................22 9. Customer Service ..................... 23 www.altimium.com... -
Page 5: Product Introduction
(USB 3.0/2.0) ports and automatically switched along with HDMI and USB-C input as USB DEVICES for corresponding HOST. Smart EDID management capable for various applications and customized setting. Front panel buttons trigger both CEC and RS232 commands for display control. (ON, OFF, MUTE, VOL+, VOL -). www.altimium.com... -
Page 6: Package List
18G 2x1 Presentation Switcher with Soft Codec and CEC 1.2 Package List 1x SCA21HE-CODEC 18G 2x1 Presentation Switcher 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x 5-pin Terminal Block 1x RS232 Cable (3-pin terminal block to DB9) ... -
Page 7: Specification
(1) EDID, (1) FW, (1) RS232, (1) HOST, (2) DEVICE (1) 4-pin DIP switch, (1) Micro-USB, (1) 3-pin terminal block, (1) Control Connector Type-B USB 3.0, (2) Type-A USB 3.0 General 4K@60Hz 4:4:4 ≤ 5m, HDMI 2.0 Cable Length 4K@60Hz 4:2:0 ≤ 10m, 1080P ≤ 15m www.altimium.com... - Page 8 Operation Temperature -10℃ ~ +55℃ Storage Temperature -25℃ ~ +70℃ Relative Humility 10% ~ 90% External Power Supply Input: AC 100~240V, 50/60Hz, Output: 24V DC 2.71A Power Consumption 54W (Max) Dimension (W*H*D) 168.0mm x 24.5mm x 95.0mm Net Weight 245g www.altimium.com...
-
Page 9: Panel Description
E. Press to increase the audio volume gradually, or press and hold it to increase the audio volume constantly. ④ EDID: 4-pin DIP switch for EDID setting. ⑤ FW: Micro-USB port for firmware upgrade. www.altimium.com... -
Page 10: Rear Panel
The HID devices are used to control the HOST when the HDMI input has been selected, or to control the USB-C source device (e.g. Macbook) when the USB-C input has been selected. ⑧ DC 24V: DC barrel port for power adapter connection. www.altimium.com... -
Page 11: System Connection
System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and safe. All devices should be connected before power on. 4.2 System Diagram www.altimium.com... -
Page 12: Button Control
: Volume down display audio. : Volume up display audio. Auto Control: When detecting a video input signal (5V or TMDS), automatically send CEC and RS232 commands to turn on the display device. When not detecting any video www.altimium.com... -
Page 13: Edid Setting
User-defined EDID (Please refer to the 6.2.3 User-defined EDID) 1110 1111 Note: The EDID DIP switch only used for setting the EDID of HDMI source device, and the USB-C source device will automatically gains the EDID of display device. www.altimium.com... -
Page 14: Rs232 Control
Connect the switcher with all input devices and output devices needed, then to connect it with a PC which is installed with RS232 control software. Double-click the software icon to run this software. Here take the software CommWatch.exe as an example: www.altimium.com... - Page 15 Command sending area Operation area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in command sending area. www.altimium.com...
-
Page 16: Rs232 Command
@AV C #SET_AV C @AV H Get the current input source. #GET_AV @AV C Enable auto switching mode. @AUTO_SWITCH 1 #SET_AUTO_SWITCH 1 Disable auto switching mode. @AUTO_SWITCH 0 #SET_AUTO_SWITCH 0 @AUTO_SWITCH 1 Get the auto switching status. #GET_AUTO_SWITCH @AUTO_SWITCH 0 www.altimium.com... -
Page 17: User-Defined Edid
Set the RS232 baud rate to 4800. @RS232_BAUD 5 #SET_RS232_BAUD 5 Set the RS232 baud rate to 2400. @RS232_BAUD 6 #SET_RS232_BAUD 6 @RS232_BAUD 0 @RS232_BAUD 1 @RS232_BAUD 2 Get the RS232 baud rate. @RS232_BAUD 3 #GET_RS232_BAUD @RS232_BAUD 4 @RS232_BAUD 5 @RS232_BAUD 6 www.altimium.com... -
Page 18: Cec/Rs232 Function Setting
When not detecting video input signal, set the auto power-off time of display device to #SET_DTIME 1:30 [PARAM1]: [PARAM2]. The default time is 10 #SET_DTIME minutes. [PARAM1]: [PARAM2] @DTIME 1:30 [PARAM1]=0~30 minutes. [PARAM2]=0~1800 seconds. Get the auto power-off time of display device. @DTIME 30:0 #GET_DTIME www.altimium.com... -
Page 19: Display Control
#SET_VOL - and RS232 channels. Power on display device (Simultaneously sending CEC and RS232 commands to @DISPLAY 0 #SET_DISPLAY 1 display device). Power off display device (Simultaneously sending CEC and RS232 commands to @DISPLAY 1 #SET_DISPLAY 0 display device). www.altimium.com... -
Page 20: Third-Party Device Control
SEND:31 32 33 34 35 06 - 2400 [PARAM2] = 00~99. The delay time of sending command. XX XX: Any HEX code (0-9, A-F; up to 20 bytes. It must have a blank between 2 different XX). www.altimium.com... - Page 21 SEND:41 42 43 44 45 06 - 2400 [PARAM2] = 00~99. The delay time of sending command. XX XX: Any HEX code (0-9, A-F; up to 20 bytes. It must have a blank between 2 different XX). www.altimium.com...
- Page 22 SEND:31 32 33 34 35 06 - 2400 [PARAM2] = 00~99. The delay time of sending command. XX XX: Any HEX code (0-9, A-F; up to 20 bytes. It must have a blank between 2 different XX). www.altimium.com...
- Page 23 SEND:41 42 43 44 45 06 - 2400 [PARAM2] = 00~99. The delay time of sending command. XX XX: Any HEX code (0-9, A-F; up to 20 bytes. It must have a blank between 2 different XX). www.altimium.com...
- Page 24 SEND:41 42 43 44 45 06 - 2400 [PARAM2] = 00~99. The delay time of sending command. XX XX: Any HEX code (0-9, A-F; up to 20 bytes. It must have a blank between 2 different XX). www.altimium.com...
-
Page 25: Panel Drawing
18G 2x1 Presentation Switcher with Soft Codec and CEC 7. Panel Drawing 168.0mm DC 24V HDMI IN USB-C IN HDMI OUT AUDIO OUT RS232 HOST DEVICES 18G 2x1 Presentation Switcher w/ Soft Codec & CEC INPUT DISPLAY 1 2 3 4 SELECT HDMI USB-C EDID AUTO/3s www.altimium.com... -
Page 26: Troubleshooting & Maintenance
(e.g. a PC) through RS232 port Send it to authorized Broken RS232 port. dealer for checking. Note: If your problem still remaining after following the above troubleshooting steps, please contact your local dealer or distributor for further assistance. www.altimium.com... -
Page 27: Customer Service
Remarks: Please contact your local distributor for further assistance or solutions. www.altimium.com... - Page 28 18G 2x1 Presentation Switcher with Soft Codec and CEC ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com www.altimium.com...
