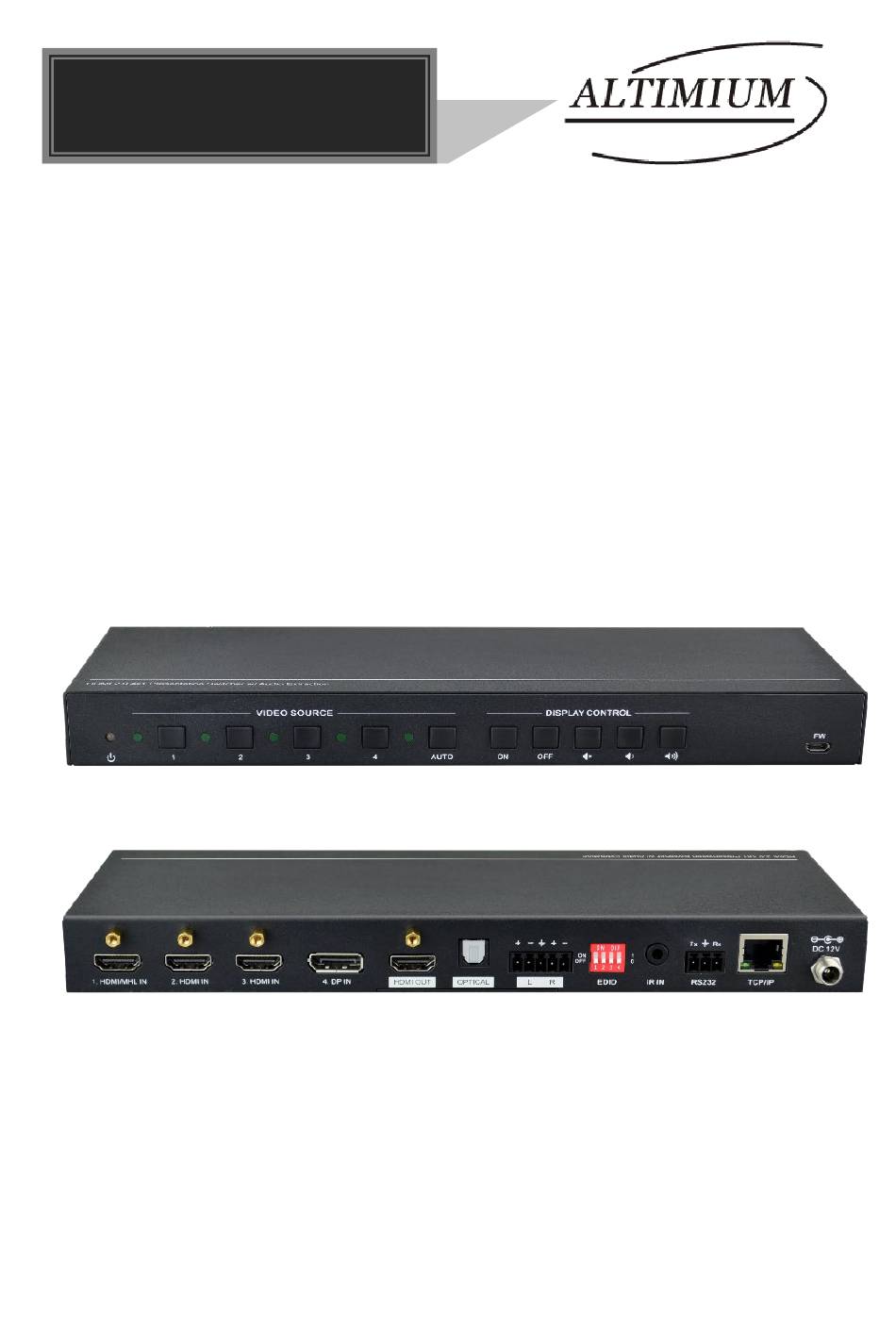

- Page 1 User Manual SW41H2-4K HDMI 2.0 4x1 Presentation Switcher with Audio Extraction All Rights Reserved Version: SW41H2-4K_2019V1.5...
- Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. www.altimium.com...
- Page 3 Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. www.altimium.com...
-
Page 4: Table Of Contents
7.7 Access Tab ...................... 17 7.8 Network Tab ..................... 17 7.9 GUI Upgrade ....................18 8. RS232 Control ......................19 8.1 RS232 Control Software .................. 19 8.2 RS232 Command .................... 21 8.2.1 Device Control ..................21 8.2.2 Source Switching ................... 21 www.altimium.com... - Page 5 8.2.4 Audio Control ..................22 8.2.5 Display Control ..................23 8.2.6 Third-party Device Control ..............23 8.2.7 Button Command Setting ..............24 9. Firmware Upgrade ....................27 10. Panel Drawing ......................28 11. Troubleshooting & Maintenance ................29 12. Customer Service ....................30 www.altimium.com...
-
Page 6: Product Introduction
HDCP 2.2 compliant. Supports automatic switching. CEC control for display volume and ON/FF. Controllable via RS232 and IR. Optical and balanced analog audio for audio de-embedding. Smart EDID management for various application and customized setting. www.altimium.com... -
Page 7: Package List
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 1.2 Package List 1x SW41H2-4K HDMI 2.0 4x1 Presentation Switcher 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x IR Receiver 1x IR Remote 1x 3-pin Terminal Block ... -
Page 8: Specification
PCM, Dolby Digital, DTS, DTS-HD 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV Max Output Level (316mV) nominal consumer line level signal <0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine THD+N at 0dBFS level (or max level) >80dB, 20Hz ~ 20KHz bandwidth www.altimium.com... - Page 9 18Gbps Operation Temperature -10℃ ~ +55℃ Storage Temperature -25℃ ~ +70℃ Relative Humility 10%-90% External Power Supply Input: AC 100~240V, 50/60Hz, Output: 12V DC 1A Power Consumption 5W (Max) Dimension (W*H*D) 262mm x 26mm x 84mm Net Weight 320g www.altimium.com...
-
Page 10: Panel Description
decrease the audio volume constantly. Press to increase the audio volume gradually, or press and hold it to increase the audio volume constantly. ④ FW: Micro-USB port for firmware upgrade. www.altimium.com... -
Page 11: Rear Panel
⑦ RS232: 3-pin terminal block to connect RS232 control device (PC) or a device to be controlled by RS232 commands. ⑧ TCP/IP: RJ45 connector to connect control device (e.g. PC) to control the switcher via GUI. ⑨ DC 12V: DC barrel port for power adapter connection. www.altimium.com... -
Page 12: System Connection
System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and safe. All devices should be connected before power on. 4.2 System Diagram www.altimium.com... -
Page 13: Button Control
The switcher supports CEC, and the DISPLAY CONTROL buttons on the front panel are designed for Display On/Off and volume adjustment. ON: Display On. OFF: Display Off. : Mute/unmute display audio. : Volume down display audio. : Volume up display audio. www.altimium.com... -
Page 14: Edid Setting
Stereo Audio 1011 User-defined 1 1100 User-defined 2 1101 User-defined 3 1110 User-defined 4 1111 Enable GUI or RS232 EDID management. Note: Stereo Audio: LPCM 2Ch High Definition Audio: LPCM 8Ch, AC-3 6Ch, DTS 5.1, Dolby Digital5.1. www.altimium.com... -
Page 15: Ir Remote Control
② Video input selection buttons (1~4) and AUTO mode button. ③ Source device control buttons. Page Up Page Down Rewind Fast Forward Pause/Play Stop Exit Enter Down Left Right Power On/Off ④ Display device control buttons. Power On/Off Mute/Unmute Volume Down Volume Up www.altimium.com... -
Page 16: Gui Control
Subnet Mask: 255.255.255.0 Please type 192.168.0.178 in the internet browser, and it will enter the below log-in webpage: Username: admin Password: admin Please type the user name and password, and then click Login to enter the section for video switching. www.altimium.com... -
Page 17: Switching Tab
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 7.1 Switching Tab Click the AUTO button to enable automatic switching mode. Click 1~4 button to select input source respectively. 7.2 Display Control Tab www.altimium.com... -
Page 18: Audio Tab
: Mute/unmute display audio. : Volume down display audio. : Volume up display audio. 7.3 Audio Tab Turn on or turn off the digital audio output. Turn on or turn off the analog audio output. www.altimium.com... -
Page 19: Edid Tab
Step 1: Prepare the EDID file (.bin) on the control PC. Step 2: Select the user-defined. Step 3: Click the black box , and then select the EDID file (.bin) according the tooltip. Step 4: Click Apply to upload the user-defined EDID. www.altimium.com... -
Page 20: Rs232 Tab
Baud Rate: Supports 2400, 4800, 9600, 19200, 38400, 57600 or 115200. Command Ending: NULL, CR, LF or CR+LF can be chosen. Command: Type the command in this box to control the third-party device which is connected to the RS232 port of the switcher. www.altimium.com... -
Page 21: Interface Tab
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 7.6 Interface Tab Modify the title bar label. Modify the button labels. www.altimium.com... -
Page 22: Access Tab
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 7.7 Access Tab Modify the login password. Lock or unlock the front panel buttons. 7.8 Network Tab www.altimium.com... -
Page 23: Gui Upgrade
After that, click Administration in the source menu to get to Upload Firmware as shown below: Select the update file and click Apply button, and then it will start upgrade process. www.altimium.com... -
Page 24: Rs232 Control
Connect the switcher with all input devices and output devices needed, then to connect it with a PC which is installed with RS232 control software. Double-click the software icon to run this software. Here take the software CommWatch.exe as an example: www.altimium.com... - Page 25 Command sending area Operation area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then the command is ready to be sent in command sending area. www.altimium.com...
-
Page 26: Rs232 Command
Command Function Feedback Example Example: HDMI4. Switch to HDMI input [x]. x=1~4. Feedback: HDMI Out Switch HDMI[x]. To 04! Enable auto switching mode. HDMI Out Switch Auto Mode! HDMIA. HDMI Out Switch Manual Enable manual switching mode. HDMIM. Mode! www.altimium.com... -
Page 27: Edid Management
Feedback Example Turn on the stereo analog L/R audio output. IIS_OUT_ON! IISON. Turn off the stereo analog L/R audio output. IIS_OUT_OFF! IISOFF. Turn on the Toslink digital audio output. SPDIF_OUT_ON! SPDIFON. Turn off the Toslink digital audio output. SPDIF_OUT_OFF! SPDIFOFF. www.altimium.com... -
Page 28: Display Control
(e.g. Projector). xxx: ASCII string. The “X” represents the baud rate of third-party device. Baud Rate /+[X]:xxx. 2400 Send the command “123456” to the 4800 third-party whose baud rate is 9600. 9600 19200 38400 57600 115200 www.altimium.com... -
Page 29: Button Command Setting
“xxx” to send to the third-party device whose baud rate is X. When press the DISPLAY OFF CMDOFF/+3/0:455666. button, send the command “xxx” CMDOFF/+[X]/[Y]:xxx. CMDOFF/+3/1:455666. to the third-party device whose baud rate is X. Baud Rate 2400 4800 www.altimium.com... - Page 30 “xxx” to the third-party device when press the VOLUME DOWN button When press the VOLUME UP button, send the command “xxx” to the third-party device whose baud rate is CMDVOLUP/+3/0:111. CMDVOLUP/+[X]/[Y]:x CMDVOLUP/+3/1:111. Baud Rate 2400 4800 9600 www.altimium.com...
- Page 31 The “Y” can be 0 or 1. CMD_VOLMUTE Save Success! If the “Y” is “0”, clear the saved command “xxx”. If the “Y” is “1”, automatically send the command “xxx” to the third-party device when press the VOLUME MUTE button www.altimium.com...
-
Page 32: Firmware Upgrade
(.bin) should be confirm again, and then follow the above steps to update again. 7) Remove the USB cable after firmware upgrade. 8) After firmware upgrade, the switcher should be restored to factory default by sending command. www.altimium.com... -
Page 33: Panel Drawing
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 10. Panel Drawing 262.0 mm www.altimium.com... -
Page 34: Troubleshooting & Maintenance
The front panel buttons are Unlock the front panel can control it through locked buttons. RS232 port Note: If the problem still remaining after following the above troubleshooting steps, please contact your local dealer or distributor for further assistance. www.altimium.com... -
Page 35: Customer Service
Remarks: Please contact your local distributor for further assistance or solutions. www.altimium.com... - Page 36 HDMI 2.0 4x1 Presentation Switcher with Audio Extraction ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com www.altimium.com...
