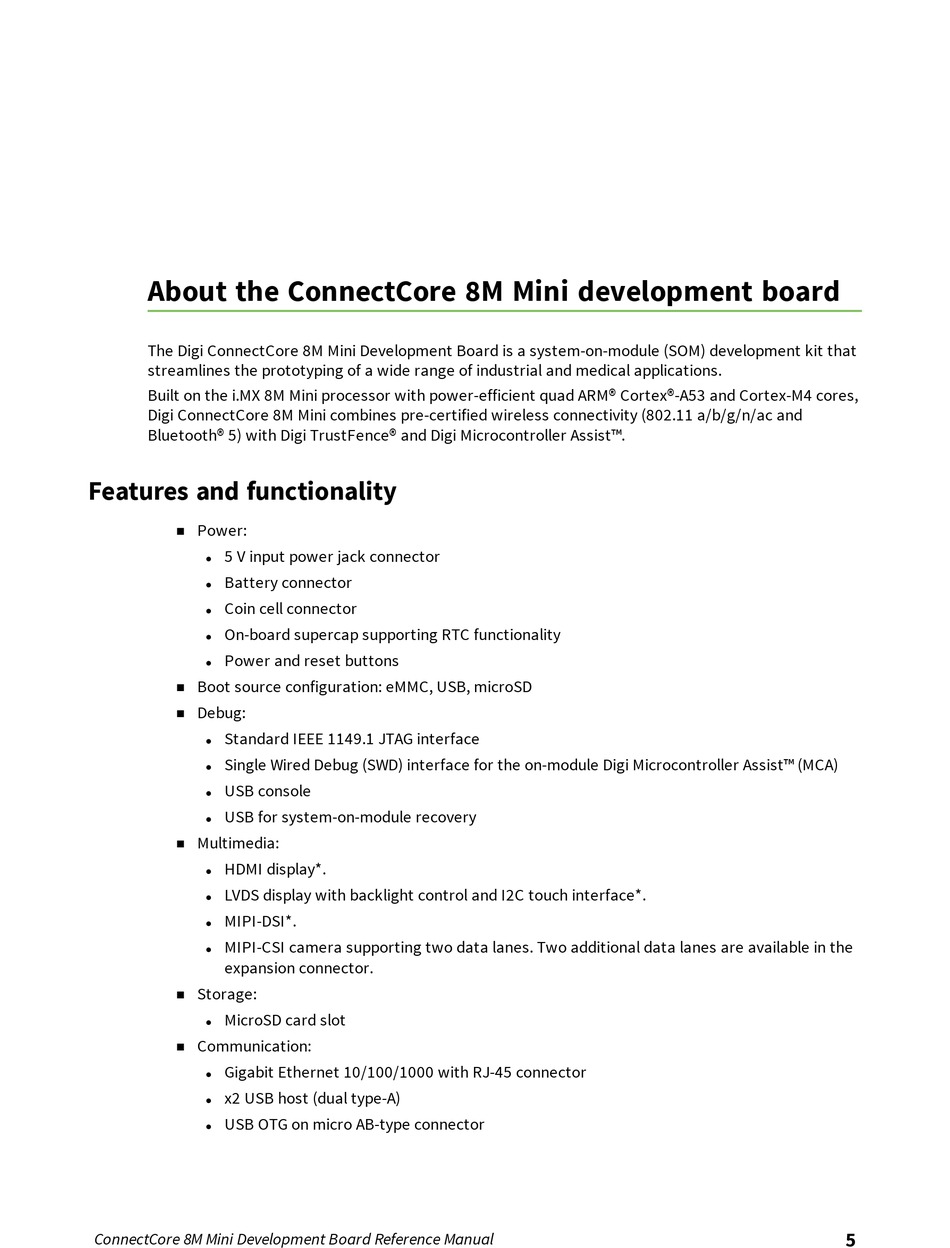

About the ConnectCore 8M Mini development board

The Digi ConnectCore 8M Mini Development Board is a system-on-module (SOM) development kit that
streamlines the prototyping of a wide range of industrial and medical applications.
Built on the i.MX 8M Mini processor with power-efficient quad ARM® Cortex®-A53 and Cortex-M4 cores,
Digi ConnectCore 8M Mini combines pre-certified wireless connectivity (802.11 a/b/g/n/ac and
Bluetooth® 5) with Digi TrustFence® and Digi Microcontroller Assist™.

Features and functionality

Power:
n
5 V input power jack connector
l
Battery connector
l
Coin cell connector
l
On-board supercap supporting RTC functionality
l
Power and reset buttons
l
Boot source configuration: eMMC, USB, microSD
n
Debug:
n
Standard IEEE 1149.1 JTAG interface
l
Single Wired Debug (SWD) interface for the on-module Digi Microcontroller Assist™ (MCA)
l
USB console
l
USB for system-on-module recovery
l
Multimedia:
n
HDMI display*.
l
LVDS display with backlight control and I2C touch interface*.
l
MIPI-DSI*.
l
MIPI-CSI camera supporting two data lanes. Two additional data lanes are available in the
l
expansion connector.
Storage:
n
MicroSD card slot
l
Communication:
n
Gigabit Ethernet 10/100/1000 with RJ-45 connector
l
x2 USB host (dual type-A)
l
USB OTG on micro AB-type connector
l
