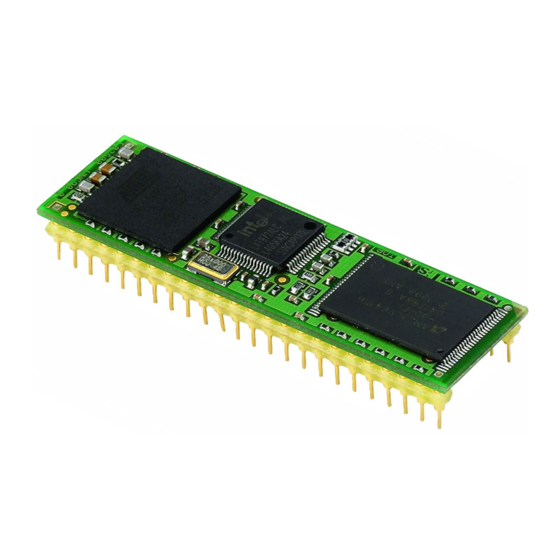

ConnectCore™ 9U (UNC90)
U-Boot Recovery Guide
with Digi JTAG-Link, Segger J-Flash ARM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ConnectCore 9U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digi ConnectCore 9U

Summary of Contents for Digi ConnectCore 9U

  • Page 1 ConnectCore™ 9U (UNC90) U-Boot Recovery Guide with Digi JTAG-Link, Segger J-Flash ARM...

  • Page 2: Table Of Contents

    Connectcore 9U (UNC90) U-Boot Recovery Guide Document History Date Version Change Description 2010/09/02 V1.0 Initial entry/outline Table of Contents Document History ....................... 2 Table of Contents ........................ 2 Problem Description ....................3 Requirements ......................3 Software Setup ......................4 Hardware Setup ......................5 Recovery Procedure ....................

  • Page 3: Problem Description

    2 Requirements The recovery in this document requires: ConnectCore 9U (UNC90) module with available serial port on board, and a J- TAG connector on the board (e.g. Digi FS-358 UNCBAS_3 board). DG-ACC-JLNK Digi JTAG Link USB 2.0 Debugger (also known as Segger J- Link ARM) o http://www.digi.com/products/model.jsp?lid=EN&pgid=41&pfid=37&mti...

  • Page 4: Software Setup

    The files from the zip should be: o u-boot-unc90dev-defaultenv.bin, special build not using environment from EEPROM o u-boot-unc90dev.bin version released by Digi for CC9U compatible with old SPANSION S29GL128P flash AND with new NUMONYX M29W128GH flash. If not included, see: http://ftp1.digi.com/support/patches/CC9U_UBOOT114_BIN_82002254_...

  • Page 5: Hardware Setup

    Connect a serial null modem cable (pins 2 and 3 crossed) to your host computer and launch a terminal program (e.g. HyperTerminal) with 38400 8N1. Plug the cable into Serial Port at X2 of the Digi development board. Connect the power cable/power on the board.

  • Page 6: Recovery Procedure

    Connectcore 9U (UNC90) U-Boot Recovery Guide 5 Recovery Procedure 5.1 Program U-Boot using default environment Launch the Segger J-Flash tool: Enter J-Flash License: File -> Open Project: Select J-Flash Sample Project Files: Copyright 2010 Digi International Page 6/13 V1.0 recoverU-Boot-CC9P9360-9750.doc...
  • Page 7 Connectcore 9U (UNC90) U-Boot Recovery Guide Select AT91RM9200_Digi_CC9U.jflash project file: File -> Open: Copyright 2010 Digi International Page 7/13 V1.0 recoverU-Boot-CC9P9360-9750.doc...
  • Page 8 Connectcore 9U (UNC90) U-Boot Recovery Guide Select u-boot-unc90dev-defaultenv.bin from the Zip attached Enter startaddress (will be corrected automatically later if you leave 0x0): Select Target -> Program & Verify Copyright 2010 Digi International Page 8/13 V1.0 recoverU-Boot-CC9P9360-9750.doc...
  • Page 9 Connectcore 9U (UNC90) U-Boot Recovery Guide If you get errors, press the reset button on the board and retry several times. Recheck jumper J1 1-2 is set and power cycle. Copyright 2010 Digi International Page 9/13 V1.0 recoverU-Boot-CC9P9360-9750.doc...
  • Page 10 Connectcore 9U (UNC90) U-Boot Recovery Guide Approve to erase/program flash: Remove Jumper J1 and Reset/Power Cycle the board, check serial port for output: U-Boot 1.1.4 (Sep 6 2010 - 18:02:32) for Digi International CC9U on UNCBAS_3 DRAM: 32 MB AM29LV128M (16MB)

  • Page 11: Clean Eeprom Environment And Flash Memory

    Connectcore 9U (UNC90) U-Boot Recovery Guide 5.2 Clean EEPROM environment and flash memory 5.2.1 Clean/Reset EEPROM environment to default As the EEPROM could contain environment variables which prevent standard U-Boot to provide serial output, invalidate the EEPROM checksum, to get it reset to default: CC9U>...

  • Page 12: Program Your Final U-Boot

    Connectcore 9U (UNC90) U-Boot Recovery Guide 5.3 Program your final U-Boot Plug Jumper J1 1-2 In J-Flash select File->Open and select you final U-Boot binary (e.g. version 1.1.4 RevA from Digi): Program this U-Boot into flash with “Target -> Program & Verify” F6 or F7 5.4 Programming MAC and default environment into EEPROM...

  • Page 13: Customizing Network Settings (Optional)

    Connectcore 9U (UNC90) U-Boot Recovery Guide You need to set the MAC Address as printed on the module: CC9U> setenv ethaddr 00:04:F3:xx:yy:zz CC9U> saveenv 5.4.1 Customizing network settings (optional) Reset the network settings: (Change these to match your desired settings, then copy/paste them into your terminal connection.)
