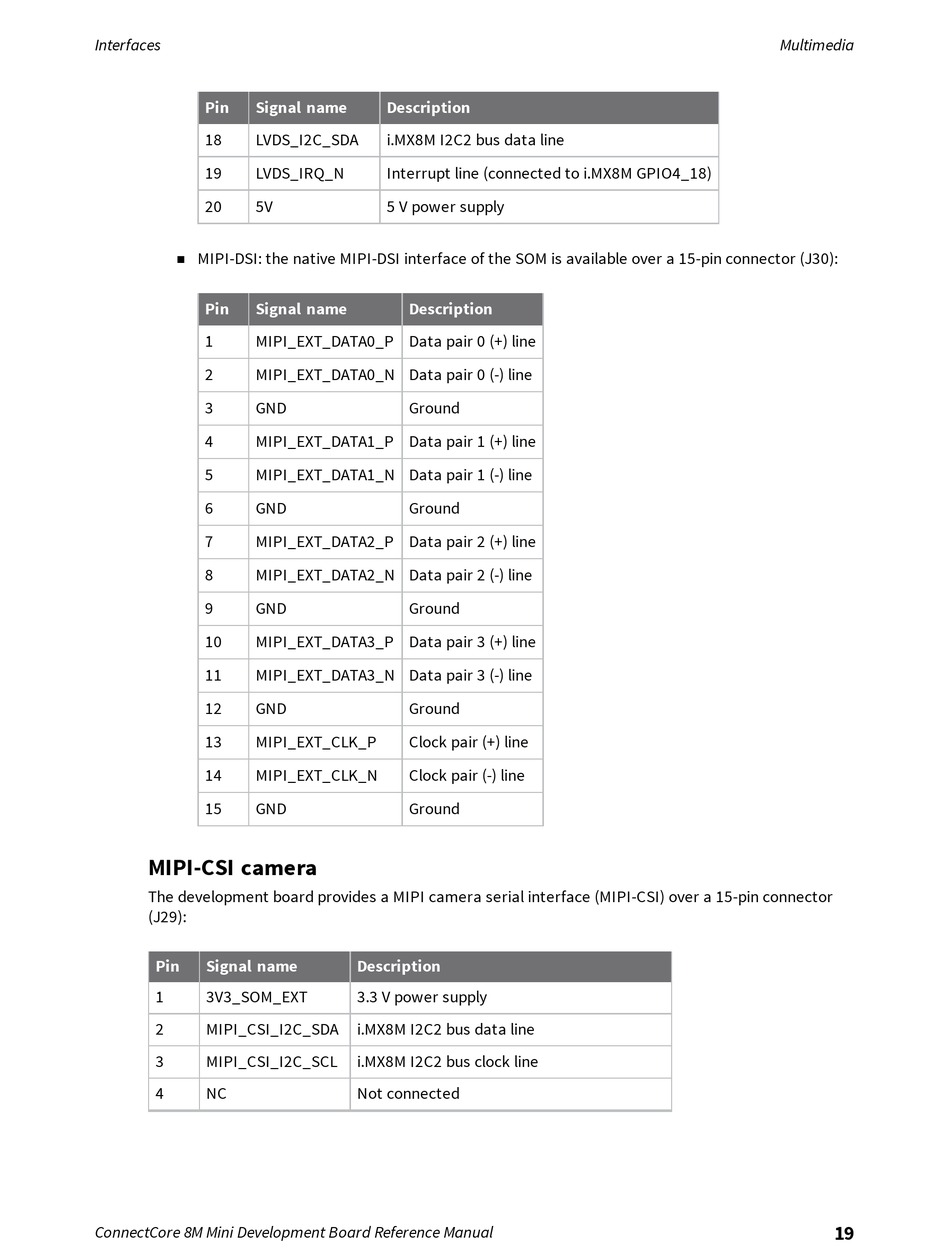

Interfaces
Pin Signal name
18 LVDS_I2C_SDA
19 LVDS_IRQ_N
20 5V
MIPI-DSI: the native MIPI-DSI interface of the SOM is available over a 15-pin connector (J30):
n
Pin Signal name
1 MIPI_EXT_DATA0_P Data pair 0 (+) line
2 MIPI_EXT_DATA0_N Data pair 0 (-) line
3 GND
4 MIPI_EXT_DATA1_P Data pair 1 (+) line
5 MIPI_EXT_DATA1_N Data pair 1 (-) line
6 GND
7 MIPI_EXT_DATA2_P Data pair 2 (+) line
8 MIPI_EXT_DATA2_N Data pair 2 (-) line
9 GND
10 MIPI_EXT_DATA3_P Data pair 3 (+) line
11 MIPI_EXT_DATA3_N Data pair 3 (-) line
12 GND
13 MIPI_EXT_CLK_P
14 MIPI_EXT_CLK_N
15 GND

MIPI-CSI camera

The development board provides a MIPI camera serial interface (MIPI-CSI) over a 15-pin connector
(J29):
Pin Signal name
1 3V3_SOM_EXT
2 MIPI_CSI_I2C_SDA
3 MIPI_CSI_I2C_SCL
4 NC
ConnectCore 8M Mini Development Board Reference Manual
Description
i.MX8M I2C2 bus data line
Interrupt line (connected to i.MX8M GPIO4_18)
5 V power supply
Description
Ground
Ground
Ground
Ground
Clock pair (+) line
Clock pair (-) line
Ground
Description
3.3 V power supply
i.MX8M I2C2 bus data line
i.MX8M I2C2 bus clock line
Not connected
Multimedia
19
