Summary of Contents for Munters EC52D

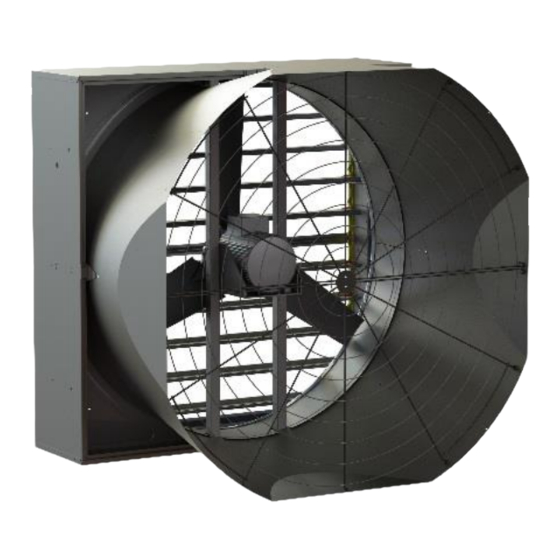

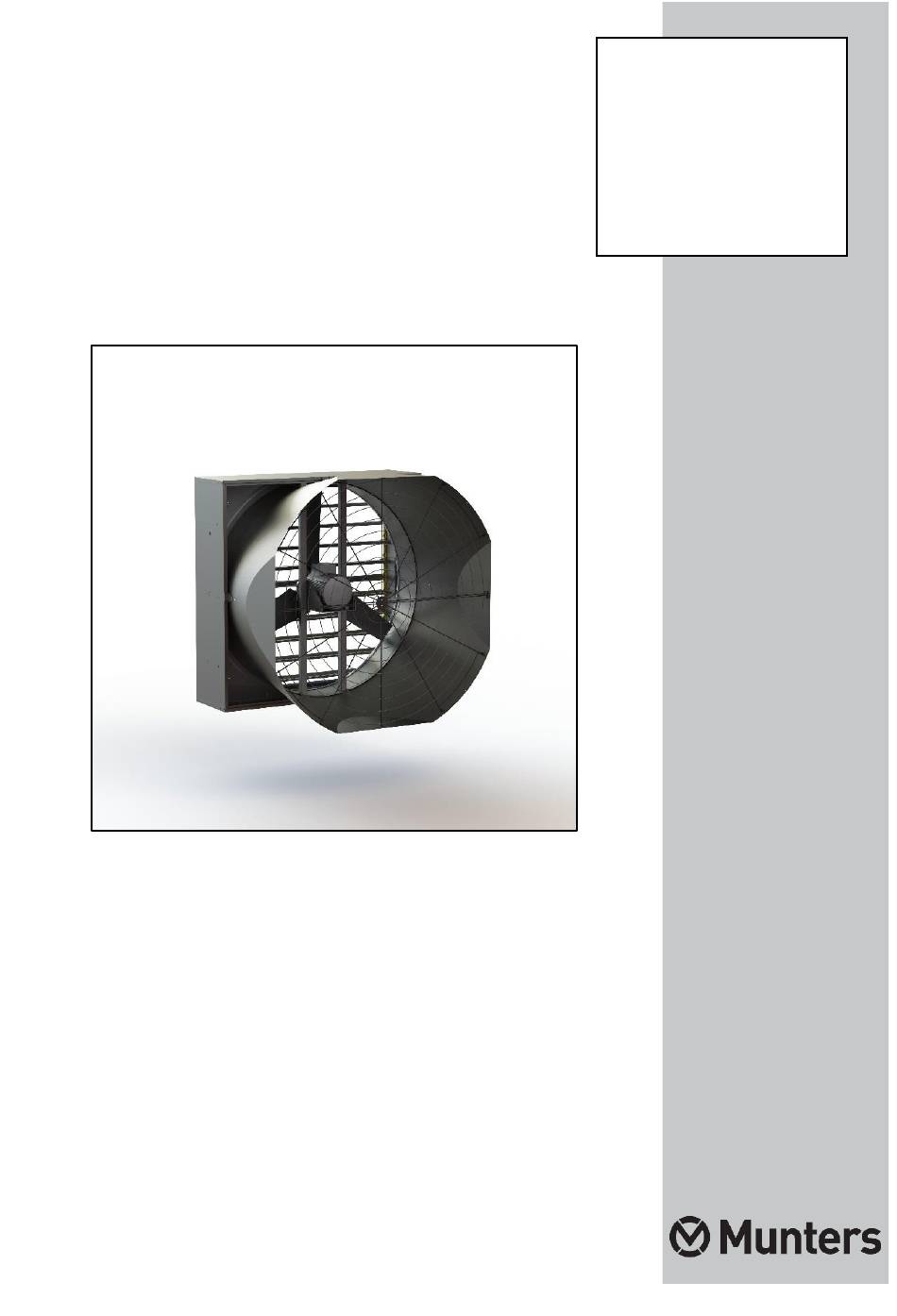

- Page 1 EC52D with AGS Manual for use and maintenance + CE Declaration of conformity EC52D with AGS Air extraction fan Ag/MIT/UmEN-2722-04/19 Rev 1.0...
- Page 2 Munters Italy S.p.A. reserves the right to effect modifications to the apparatus in accordance with technical and legal developments and to make alterations to specifications, quantities, etc.,for production or other reasons, subsequent to publication.
-
Page 3: Table Of Contents
7. TECHNICAL DATA ................30 7.1 Dimensions ....................30 7.2 Technical specifications .................30 8. MAINTENANCE ................... 32 8.1 Introduction ....................32 8.2 Routine Maintenance Program ..............32 8.3 Cleaning ......................32 9. SPARE PART LIST ................34 Spare parts ......................36 © Munters AB, 2019... -
Page 4: Ce Declaration
Fan designed for moving air to control temperature and Designation humidity in greenhouses or rearing sheds. Model EC52D with AGS Year of manufacture 2019 CONFORMS WITH THE ESSENTIAL SAFETY REQUIREMENTS STATED BY APPARATUS DIRECTIVE 2006/42/EC AND PERFORMANCE REQUIREMENTS COMPLY WITH THE ERP DIRECTIVE 2009/125/CE. -
Page 5: Disclaimer
Munters fans. 1.3 Notes Date of release: 2019. Munters cannot guarantee to inform users about the changes or to distribute new manuals to them. All rights reserved. No part of this manual may be reproduced in any manner whatsoever without the expressed written permission of Munters. -
Page 6: Data For Fan Eco Design Directive
Do not dispose of this product with general household waste. This product must be disposed according to the laws governing Waste Electrical and Electronic Equipment. If required, contact your local authorities for information regarding the available disposal facilities. © Munters AB, 2019... -
Page 7: Safety Aspects
WARNING Unauthorized tampering/replacement of one or more parts of the machine, or the use of accessories, tools or materials other than those recommended by the manufacturer, are prohibited and release the manufacturer from all liability. © Munters AB, 2019... -
Page 8: General Safety Instructions
(emergency system activated and electricity and hydraulic fluid isolated). At the end of maintenance operations, the guards which were removed must be replaced correctly. © Munters AB, 2019... - Page 9 Dimensions and positioning in accordance with Guard of fixed type made Outlet side of fan instructions in the standard UNI of metal mesh. EN 13857. Removable only by means of special tool. fig.2 © Munters AB, 2019...
-
Page 10: Residual Risks
Part of machine / Description Plates/provisions/PPE stage of use Hazard arising from failure to observe ergonomic principles, caused Installation of excessive strain, i.e. generic machine mechanical hazard during the moving and installing stages of the machine. fig.4 © Munters AB, 2019... - Page 11 Sound pressure level Lp [dB(A)] 82.8 EC52D AGS - 2 hp A measurement has been made of the noise produced by the machine during normal operation in order to calculate the equivalent level in conditions of normal use. These values are shown in the above table. The measurement has been taken according to the UNI EN ISO 11202:2010.
-
Page 12: Before Using
If yes restore them by mean of a screw-driver and re-check the opening of the shutter. Follow the steps shown in the pictures. fig.7 © Munters AB, 2019... -
Page 13: Structure
The fans consist of the following components: • fan housing in Munters Protect coated steel without welding spots; • fan shutter in Munters Protect coated steel, which pivots on UV protected plastic bushes and pins; • propeller with 3 blades in plastic;... -
Page 14: Operating Conditions
• use by personnel not specifically trained; • installation of the fan for extraction or circulation under pressure; • use contrary to existing regulations; © Munters AB, 2019... - Page 15 EC declaration of conformity: it is up to the person responsible for the modification to resubmit the machine to the assessment conformity procedures specified in the applicable directives. © Munters AB, 2019...
- Page 16 (ammonia, clavulanic acid, etc.) the user, before installing the fan at the installation site must verify that the environmental conditions are compatible with the intended use of the materials that compose the fan. © Munters AB, 2019...
-
Page 17: Installation
The area adjacent to the fan in the premises from which air is being extracted must be kept clear to allow the air to exit freely. It is also prohibited for anyone to remain in this area, because of the presence of organic gases and dust which may be present in the airflow. © Munters AB, 2019... -
Page 18: Assembly Of The Cone
To move the cone to its working position, it is necessary to follow the steps indicated below. 1. Take two sectors of the cone, one for each type. fig.11 2. Align the four fingers of one of the two cone sectors respective slot of the other. fig.12 © Munters AB, 2019... - Page 19 5. Repeat from step 2, using the remaining two sectors, steering fingers same side. 6. Close cone steering fingers fig.14 internally. 7. Bolt the four junction points on the wide area of the cone fig.15 © Munters AB, 2019...
-
Page 20: Placement Of Fans
3-times fan diameter and the ingoing airflow must be kept free at least in a radius of 1.5 m distance in front of the fan. © Munters AB, 2019... - Page 21 Failure to install the safety mesh releases the manufacturer from all liability and shall be considered an improper use of the machine. © Munters AB, 2019...
-
Page 22: Connection To The Electrical System
IEC EN 60204-1 and IEC 60364. The electrical panel of the fan must generally be equipped with the following devices (bearing EC marking as per directive 2006/95/EC): Lockable isolating switch. fig.22 © Munters AB, 2019... - Page 23 Connection to the power supply must be done by means of a thermal overload protection switch, whose size depends on motor power. For safety reasons the overload switch can be locked by a padlock, not supplied by Munters. Electrical earthing must be carried out according to local regulations before the motor is connected to the supply voltage.
- Page 24 Failure to operate the fan with an overload protection device will render the motor guarantee null and void. Such motor overload protection devices can be ordered from Munters and be supplied with the fans. NOTE The connection cable must be completely extracted from the fan housing in order to avoid being damaged by moving parts.
- Page 25 • check that the intensity of the short-circuit expected at the connection terminals is compatible with the breaking power of the protection switch upstream of the electrical panel; © Munters AB, 2019...
-
Page 26: Tests And Checks Before Startup
Checking the electrical system: • check that the supply conductors are properly fixed to the terminals of the isolating switch; • check the connections of the conductors in the equipotential earthing wiring safeguard; © Munters AB, 2019... - Page 27 The minimum frequency of operation of the engines in the case of absence of a forced external ventilation is 30 Hz. In the case of an operating frequency below 30 Hz is necessary to provide an external forced ventilation to the engine. © Munters AB, 2019...
-
Page 28: Commissioning
Interrupting the electricity supply, equivalent to isolating by the operator with the main switch, causes complete fan shutdown: restoring the electricity supply will not cause any movement in the machine. Emergency stop Operating the main emergency stop button causes the fan to stop moving. © Munters AB, 2019... - Page 29 After an emergency stop, the operating cycle must be reset by following the procedure described below: • reset the actuator by which the emergency stop command was given (by turning the relative mushroom button); • for an exact reset sequence, refer to the instructions given in section 6.2. © Munters AB, 2019...
-
Page 30: Technical Data
/h [cfm] 47,435 [27,892] Airflow at 25 Pa /h [cfm] 43,225 [25,416] Airflow at 50 Pa /h [cfm] 38,029 [22,361] 32,729 [19,245] Airflow at 70 Pa /h [cfm] 23,308 [13,705] Airflow at 100 Pa /h [cfm] © Munters AB, 2019... - Page 31 Max. operating temperature °C [°F] 40 [104] Max. operating pressure [Pa] Nominal propeller speed [rpm] IEC protective class of electric motor IP55 Electric motor winding insulation grade * Excludes safety kit for installation below 2.7m above the floor. © Munters AB, 2019...
-
Page 32: Maintenance
8.2 Routine Maintenance Program Following the maintenance program prepared by our experts is the best way to ensure the smooth operation of Munters fans, to improve their performance and to give a longer lifespan. ROUTINE MAINTENANCE 1 MONTH 2 MONTHS 2 YEARS... - Page 33 In this particular event the manufacturer refuses all responsibility on consequent damages caused to things and people and considers any kind of warranty lost. © Munters AB, 2019...
-
Page 34: Spare Part List
9. SPARE PART LIST EC52 exploded view © Munters AB, 2019... - Page 35 © Munters AB, 2019...
-
Page 36: Spare Parts
LITTLE CONVEYOR RING SECTOR 2446740 OVAL PLATE 2263900 M10x30 TSPEI SCREW 2282000 Ø10 EXT THOOTED WASHER 2275300 M10 HEX NUT 2274000 Ø8x32 WASHER 2277100 M08 HEX NUT W/FLANGE 2273703 CLIP FOR MOTOR CABLE 2302000 CENTRAL SUPPORT 2473701 © Munters AB, 2019... - Page 37 LEFT SIDE PANEL 2435285 AGS BEARING – TYPE 4 with ARM for SPRING 2524561 BLADE STOPPER – TYPE 4 2265021 AGS BEARING – TYPE 4 2524560 5 HOLES TIE ROD 2433530 SPRING 2265015 HOOK for SPRING 2449150 © Munters AB, 2019...
- Page 38 AGS BEARING – TYPE 3 2524540 GEAR TYPE 3 2524573 BLADE STOPPER – TYPE 3 2265020 AGS BEARING – TYPE 3 with ARM for SPRING 2524541 PYRAMIDAL MESH* 2823729 METAL CLIP 2448600 * Mandatory in EU under 2.7 m. © Munters AB, 2019...
- Page 39 © Munters AB, 2019...
- Page 40 18027 Chiusavecchia (IM), Italy Tel: +39 0183 52 11 Fax: +39 0183 521 333 info@munters.it Munters EC52D with AGS extraction fan is developed and produced by Munters Italy S.p.A., Italy Australia Phone 61 2 8843 1594, agh.info@munters.com.au, Brazil Your closest distributor Phone +55 41 3317 5050, contato@munters.com,...
