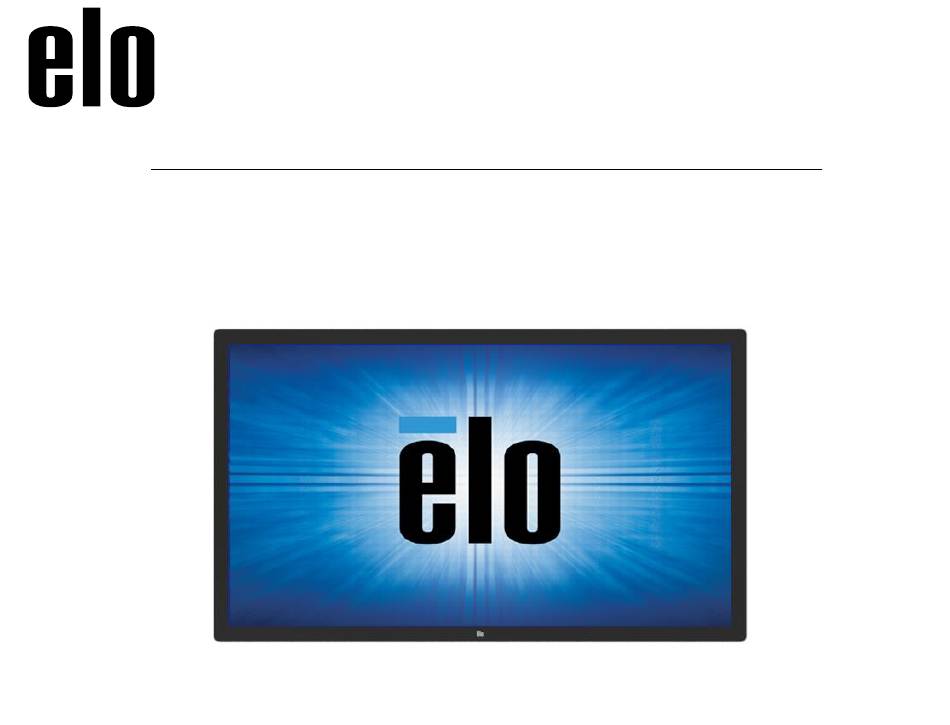

- Page 1 USER MANUAL Elo Touch Solutions IDS ET5503L Display User Manual – IDS ET5503L UM600482 Rev. A, page 1 of 37...
- Page 2 Elo to notify any person of such revisions or changes. Trademark Acknowledgments Elo, Elo (logo), Elo Touch, Elo Touch Solutions, and EloView are trademarks of Elo and its Affiliates. User Manual – IDS ET5503L UM600482 Rev. A, page 2 of 37...
-
Page 3: Table Of Contents
Section 6: Maintenance Information ........................................27 Section 7: Technical Support ........................................... 28 Section 8: Regulatory Information ..........................................29 Section 9: Warranty Information..........................................34 Section 10: Appendix A ............................................35 User Manual – IDS ET5503L UM600482 Rev. A, page 3 of 37... -
Page 4: Section 1: Introduction
IDS Display, read through this manual, especially the Installation, Mounting, and Operation chapters. CAUTION: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions. User Manual – IDS ET5503L UM600482 Rev. B, page 4 of 37... -
Page 5: Section 2: Unpacking
1. The carton should be oriented in the manner according to its labeling. The hinged plastic locks should be at the ‘bottom’. 2. Unlock and remove all 4 hinged plastic locks. User Manual – IDS ET5503L UM600482 Rev. B, page 5 of 37... - Page 6 IEC 60320-C13 to UK plug • Serial 3.5mm male to Serial DB9 female cable • Energy label according to EU Regulation 2019/2013 • Quick Install Guide User Manual – IDS ET5503L UM600482 Rev. B, page 6 of 37...
-
Page 7: Section 3: Ids Display Installation
Connector Panel and Interfaces Remove the cable cover located on the back-right side of the IDS Display (when viewed in landscape orientation) to access the connector panel. IDS Display I/O ports User Manual – IDS ET5503L UM600482 Rev. B, page 7 of 37... - Page 8 4. The Power, OSD menu, and Video Select button is located on the bottom right side on the back of the monitor. USB-C port only supports USB2.0 and video input. Power delivery and USB3.0 are not available. Note: User Manual – IDS ET5503L UM600482 Rev. B, page 8 of 37...
- Page 9 TouchPro and Infrared units are HID compatible and do not require an Elo touch driver. If an Elo touch driver has previously been installed on the host computer, remove this driver by opening Control Panel and selecting the option to remove the driver completely. User Manual – IDS ET5503L UM600482 Rev. B, page 9 of 37...
-
Page 10: Section 4: Mounting Information
The following mounting orientations are supported: landscape, portrait, tabletop and tilt. Landscape Orientation When mounting the IDS Display in landscape orientation, ensure that the ECM docking bay is on the right side when viewed from the front. User Manual – IDS ET5503L UM600482 Rev. B, page 10 of 37... - Page 11 Cooling methods must be put in place to ensure that the air temperature beneath the monitor does not exceed the operating specifications. Refer to the Operating & Storage Conditions section for tabletop mode requirements. User Manual – IDS ET5503L UM600482 Rev. B, page 11 of 37...
- Page 12 Tilt Mode The IDS Display can support a tilt of 15º. 15 degrees max User Manual – IDS ET5503L UM600482 Rev. B, page 12 of 37...
- Page 13 Optional Mounting Methods An optional low profile wall-mount kit is available for the IDS ET5503L Displays. Detailed information is available on the marketing specification drawing at www.elotouch.com. Elo Low Profile Wall Mount kit: Elo Part Number: E727774 Drawing Numbers: MS602320 for IDS ET5503L Consult the wall mount user guide for detailed installation information.
- Page 14 1. Remove the mounting screw of the speaker and slide the speaker downward to disengage the mounting hooks. Pull the speaker downward enough so the cable connector is exposed and disengage the connector. User Manual – IDS ET5503L UM600482 Rev. B, page 14 of 37...
- Page 15 Cable Connector emove the mounting screw from the mounting cover on the top right of the IDS Display and slide the cover downward to disengage the mounting hooks. User Manual – IDS ET5503L UM600482 Rev. B, page 15 of 37...
- Page 16 4. Install the cover removed in step 2 in the old speaker location by sliding it in so the hooks engage the slots in the back cover and then install the mounting screw. User Manual – IDS ET5503L UM600482 Rev. B, page 16 of 37...
-
Page 17: Section 5: Operation
When connected to Windows 10 computer, the IDS Display will report the corresponding simultaneous touches: TouchPro supports up to 40 touch Infrared support up to 20 touch The IDS Display product specification can be found by visiting https://www.elotouch.com/ User Manual – IDS ET5503L UM600482 Rev. B, page 17 of 37... - Page 18 All IDS Display adjustments made through the OSD are automatically stored as soon as they are entered. This feature saves you from having to reset your choices every time the IDS Display is unplugged or powered off and on or if there is a power failure. User Manual – IDS ET5503L UM600482 Rev. B, page 18 of 37...
- Page 19 R, G, and B gains on a scale from 0 to 100. Preset color modes that change the color parameters to enhance color definitions. Picture Modes Available modes are: Standard, Movie, Gaming, Photo, Line mode, Color Enhance User Manual – IDS ET5503L UM600482 Rev. B, page 19 of 37...
- Page 20 Wake Up Default: Enabled Time Set Option to set the current time Time Set the monitor to turn off and on at specific times. On/Off Schedule Default: Everyday User Manual – IDS ET5503L UM600482 Rev. B, page 20 of 37...
- Page 21 Note: CPU Sensor temperature is only available if the feature is supported by the Temperature computer module. Help & Support Display information regarding Elo Touch Solutions contact information. User Manual – IDS ET5503L UM600482 Rev. B, page 21 of 37...
- Page 22 Touch Activated OSD IDS ET5503L can activate OSD menu by clicking 4 character (3 → 9 → 3 → 9). *Note that only accept single touch to activate OSD menu and each click no longer than 3 seconds.
- Page 23 The user must set up the Time setting for their specific time zone. When the On/Off Schedule is Enabled, the user can choose when to leave the monitor on and when it should be off. Individual or User Manual – IDS ET5503L UM600482 Rev. B, page 23 of 37...
- Page 24 (<50 lux) to bright (>200 lux). To enable this feature, ensure that the power saving mode for the monitor is disabled. Energy Saving Mode IDS ET5503L can meet Energy Star 8.0 requirements, if Energy Saving Mode is enabled. When Energy Saving Mode is enabled, four side peripheral ports, MDC command, CEC functionality and Auto Display Wake Up function will be limited.
- Page 25 Elo Passive Stylus Part Number: E727568 (Only available for IR sku) Glove Support IDS ET5503L can support glove thickness from 0.1mm to 1.4mm, please switch to touch through mode when using thicker glove. The gloves used for IDS ET5503L are as below.
- Page 26 Available on all four sides of the monitor. The micro USB ports are designed for Elo’s optional peripherals. See www.elotouch.com for the lease refer to the user guide of each accessory or Elo Website for the OS optional peripherals that work with the IDS ET5503L display. P support. The pinout is as follows: Pin1: 5V Power...
-
Page 27: Section 6: Maintenance Information
Elo IDS Display. Use of an unauthorized power cord may invalidate your warranty. Ensure that the system is maintained and runs within the specified environmental conditions listed in the products specifications available on the Elo Touch Solutions website www.elotouch.com. User Manual – IDS ET5503L UM600482 Rev. B, page 27 of 37... -
Page 28: Section 7: Technical Support
Technical Assistance Support Technical Specifications visit www.elotouch.com/products visit www.elotouch.com/support for technical support for technical specifications for this device Refer to last page for worldwide technical support phone numbers. User Manual – IDS ET5503L UM600482 Rev. B, page 28 of 37... -
Page 29: Section 8: Regulatory Information
1) This device may not cause harmful interference; and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Notice to Users in Canada: User Manual – IDS ET5503L UM600482 Rev. B, page 29 of 37... - Page 30 Move the digital device away from the affected receiver. ii.Reposition (turn) the digital device with respect to the affected receiver. iii. Reorient the affected receiver’s antenna User Manual – IDS ET5503L UM600482 Rev. B, page 30 of 37...
- Page 31 If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician. Agency Certifications The following certifications and marks have been issued or declared for the IDS ET5503L monitor: • UL, FCC (US) - Class A •...
- Page 32 Operating Temperature: See table on next page. Storage Temperature: See table on next page. It is encouraged and recommended that product packaging be recycled and reused according to local laws. User Manual - IDS ET5503L UM600482 Rev. A, page 32 of 37...
- Page 33 Tabletop 0°C - 35°C / 32° F to 95° F Humidity 20% to 80% (non-condensing) Storage Conditions Temperature -20°C - 60°C / -4° F to 140° F Humidity 10% to 95% (38.7° C max wet bulb temperature) User Manual - IDS ET5503L UM600482 Rev. A, page 33 of 37...
-
Page 34: Section 9: Warranty Information
Section 9: Warranty Information For warranty information, go to http://support.elotouch.com/warranty/ User Manual – IDS ET5503L UM600482 Rev. A, page 34 of 37... -
Page 35: Section 10: Appendix A
Section 10: Appendix A Light Sensor Curve Brightness Curve 95 100 100 Light Sensor Value User Manual – IDS ET5503L UM600482 Rev. A, page 35 of 37... - Page 36 Color Sensor The color sensor functions according to the following chart: User Manual – IDS ET5503L UM600482 Rev. A, page 36 of 37...
- Page 37 Tel +86 (21) 3329 1385 Tel +54 11 4785-9129 Fax +1 408 597 8001 Fax +32 (0)16 70 45 49 Fax +86 (21) 3329 1400 www.elotouch.com customerservice@elotouch.com elosales@elotouch.com www.elotouch.com.cn User Manual – IDS ET5503L UM600482 Rev. A, page 37 of 37...
