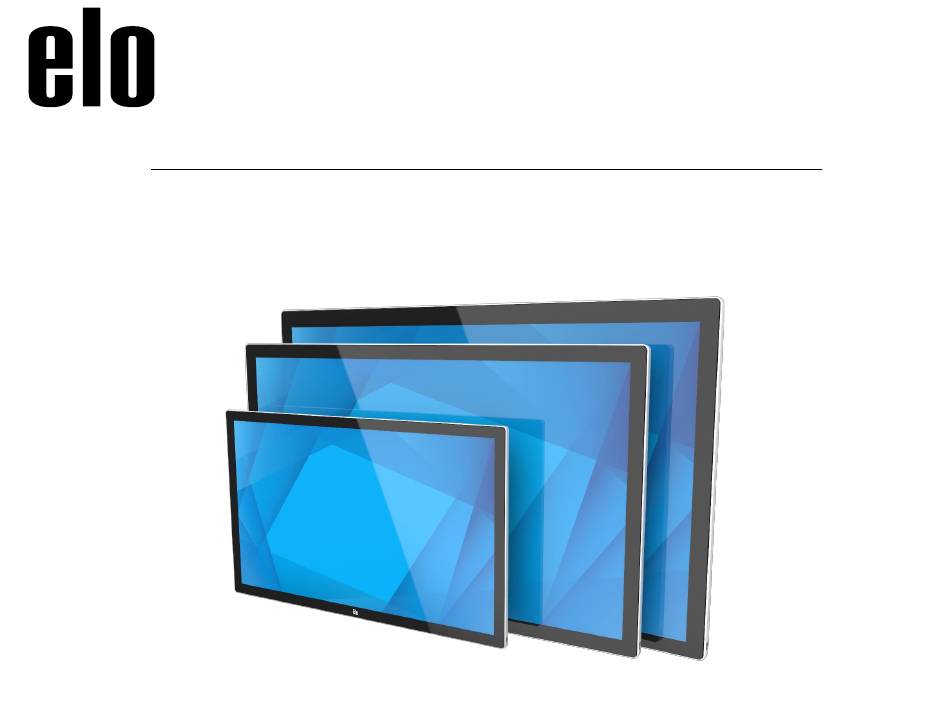

- Page 1 USER MANUAL Elo Touch Solutions IDS ET3203L/ET4303L/ET5053 Display User Manual – IDS ET3203L/ET4303L/5053 UM600265 Rev. C, page 1 of 33...
- Page 2 Elo to notify any person of such revisions or changes. Trademark Acknowledgments Elo, Elo (logo), Elo Touch, Elo Touch Solutions, and EloView are trademarks of Elo and its Affiliates. User Manual – IDS ET3203L/ET4303L/5053 UM600265 Rev. C, page 2 of 33...
-
Page 3: Table Of Contents
Section 6: Maintenance Information ........................................23 Section 7: Technical Support ........................................... 24 Section 8: Regulatory Information ..........................................25 Section 9: Warranty Information ..........................................30 Section 10: Appendix A ............................................31 User Manual – IDS ET3203L/ET4303L/5053 UM600265 Rev. C, page 3 of 33... -
Page 4: Section 1: Introduction
IDS Display, read through this manual, especially the Installation, Mounting, and Operation chapters. CAUTION: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions. User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 4 of 33... -
Page 5: Section 2: Unpacking
1. The carton should be oriented in the manner according to its labeling. The hinged plastic locks should be at the ‘bottom’. 2. Unlock and remove all 4 hinged plastic locks. User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 5 of 33... - Page 6 IEC 60320-C13 to UK plug • Serial 3.5mm male to Serial DB9 female cable • Energy label according to EU Regulation 2019/2013 • Quick Install Guide User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 6 of 33...
-
Page 7: Section 3: Ids Display Installation
4. The Power, OSD menu, and Video Select button is located on the bottom right side on the back of the monitor. USB-C port only supports USB2.0 and video input. Power delivery and USB3.0 are not available. Note: User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 7 of 33... - Page 8 TouchPro and Infrared units are HID compatible and do not require an Elo touch driver. If an Elo touch driver has previously been installed on the host computer, remove this driver by opening Control Panel and selecting the option to remove the driver completely. User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 8 of 33...
-
Page 9: Section 4: Mounting Information
The following mounting orientations are supported: landscape, portrait, tabletop and tilt. Landscape Orientation When mounting the IDS Display in landscape orientation, ensure that the ECM docking bay is on the right side when viewed from the front. User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 9 of 33... - Page 10 Cooling methods must be put in place to ensure that the air temperature beneath the monitor does not exceed the operating specifications. Refer to the Operating & Storage Conditions section for tabletop mode requirements. User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 10 of 33...
- Page 11 Tilt Mode The IDS Display can support a tilt of 15º. 15 degrees max User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 11 of 33...
- Page 12 Optional Mounting Methods An optional low profile stand kit and wall-mount kit are available for the IDS ET3203L/ET4303L/ET5053L Displays. Detailed information is available on the marketing specification drawing at www.elotouch.com. Elo Low Profile Stand kit: Elo Part Number: E722153 Drawing Numbers: MS602351/ MS602352/ MS602353 for IDS ET3203L/ET4303L/ET5053L Consult the stand user guide for detailed installation information.
-
Page 13: Section 5: Operation
When connected to Windows 10 computer, the IDS Display will report the corresponding simultaneous touches: TouchPro supports up to 40 touch Infrared support up to 20 touch The IDS Display product specification can be found by visiting https://www.elotouch.com/ User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 13 of 33... - Page 14 All IDS Display adjustments made through the OSD are automatically stored as soon as they are entered. This feature saves you from having to reset your choices every time the IDS Display is unplugged or powered off and on or if there is a power failure. User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 14 of 33...
- Page 15 R, G, and B gains on a scale from 0 to 100. Preset color modes that change the color parameters to enhance color definitions. Picture Modes Available modes are: Standard, Movie, Gaming, Photo, Line mode, Color Enhance User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 15 of 33...
- Page 16 Wake Up Default: Enabled Time Set Option to set the current time Time Set the monitor to turn off and on at specific times. On/Off Schedule Default: Everyday User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 16 of 33...
- Page 17 Note: CPU Sensor temperature is only available if the feature is supported by the Temperature computer module. Help & Support Display information regarding Elo Touch Solutions contact information. User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 17 of 33...
- Page 18 Touch Activated OSD (for ET3203L and ET5053L) IDS ET3203L/ET5053L can activate OSD menu by clicking 4 character (3 → 9 → 3 → 9). *Note that only accept single touch to activate OSD menu and each click no longer than 3 seconds.
- Page 19 The user must set up the Time setting for their specific time zone. When the On/Off Schedule is Enabled, the user can choose when to leave the monitor on and when it should be off. Individual or User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 19 of 33...
- Page 20 (<50 lux) to bright (>200 lux). To enable this feature, ensure that the power saving mode for the monitor is disabled. Energy Saving Mode IDS ET3203L/ET4303L/ET5053L can meet Energy Star 8.0 requirements, if Energy Saving Mode is enabled. When Energy Saving Mode is enabled, four side peripheral ports, MDC command, CEC functionality and Auto Display Wake Up function will be limited.
- Page 21 Elo Passive Stylus Part Number: E727568 (Only available for IR sku) Glove Support IDS ET3203L/ET4303L/ET5053L can support glove thickness from 0.1mm to 1.4mm, please switch to touch through mode when using thicker glove. The gloves used for IDS ET3203L/ET4303L/ET5053L are as below.
- Page 22 Available on all four sides of the monitor. The micro USB ports are designed for Elo’s optional peripherals. See www.elotouch.com for the lease refer to the user guide of each accessory or Elo optional peripherals that work with the IDS ET3203L/ET4303L/ET5053L display. P Website for the OS support. The pinout is as follows: Pin1: 5V Power...
-
Page 23: Section 6: Maintenance Information
Elo IDS Display. Use of an unauthorized power cord may invalidate your warranty. Ensure that the system is maintained and runs within the specified environmental conditions listed in the products specifications available on the Elo Touch Solutions website www.elotouch.com. User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 23 of 33... -
Page 24: Section 7: Technical Support
Technical Assistance Support Technical Specifications visit www.elotouch.com/products visit www.elotouch.com/support for technical support for technical specifications for this device Refer to last page for worldwide technical support phone numbers. User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 24 of 33... -
Page 25: Section 8: Regulatory Information
1) This device may not cause harmful interference; and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Notice to Users in Canada: User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 25 of 33... - Page 26 Move the digital device away from the affected receiver. ii.Reposition (turn) the digital device with respect to the affected receiver. iii. Reorient the affected receiver’s antenna User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 26 of 33...
- Page 27 If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician. Agency Certifications The following certifications and marks have been issued or declared for the IDS ET3203L/ET4303L/ET5053L monitor: • UL, FCC (US) - Class A •...
- Page 28 Operating Temperature: See table on next page. Storage Temperature: See table on next page. It is encouraged and recommended that product packaging be recycled and reused according to local laws. User Manual - IDS ET3203L/ET4303L/ET5053L UM600265 Rev. B, page 28 of 33...
- Page 29 Tabletop 0°C - 35°C / 32° F to 95° F Humidity 20% to 80% (non-condensing) Storage Conditions Temperature -20°C - 60°C / -4° F to 140° F Humidity 10% to 95% (38.7° C max wet bulb temperature) User Manual - IDS ET3203L/ET4303L/ET5053L UM600265 Rev. B, page 29 of 33...
-
Page 30: Section 9: Warranty Information
Section 9: Warranty Information For warranty information, go to http://support.elotouch.com/warranty/ User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 30 of 33... -
Page 31: Section 10: Appendix A
Section 10: Appendix A Light Sensor Curve Brightness Curve 95 100 100 Light Sensor Value User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 31 of 33... - Page 32 Color Sensor The color sensor functions according to the following chart: User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 32 of 33...
- Page 33 Tel +86 (21) 3329 1385 Tel +54 11 4785-9129 Fax +1 408 597 8001 Fax +32 (0)16 70 45 49 Fax +86 (21) 3329 1400 www.elotouch.com customerservice@elotouch.com elosales@elotouch.com www.elotouch.com.cn User Manual – IDS ET3203L/ET4303L/ET5053L UM600265 Rev. C, page 33 of 33...
