CYBEX Arc Trainer 360A Owner's Manual page 26

www.cybexinternational.com 26
ASSEMBLY

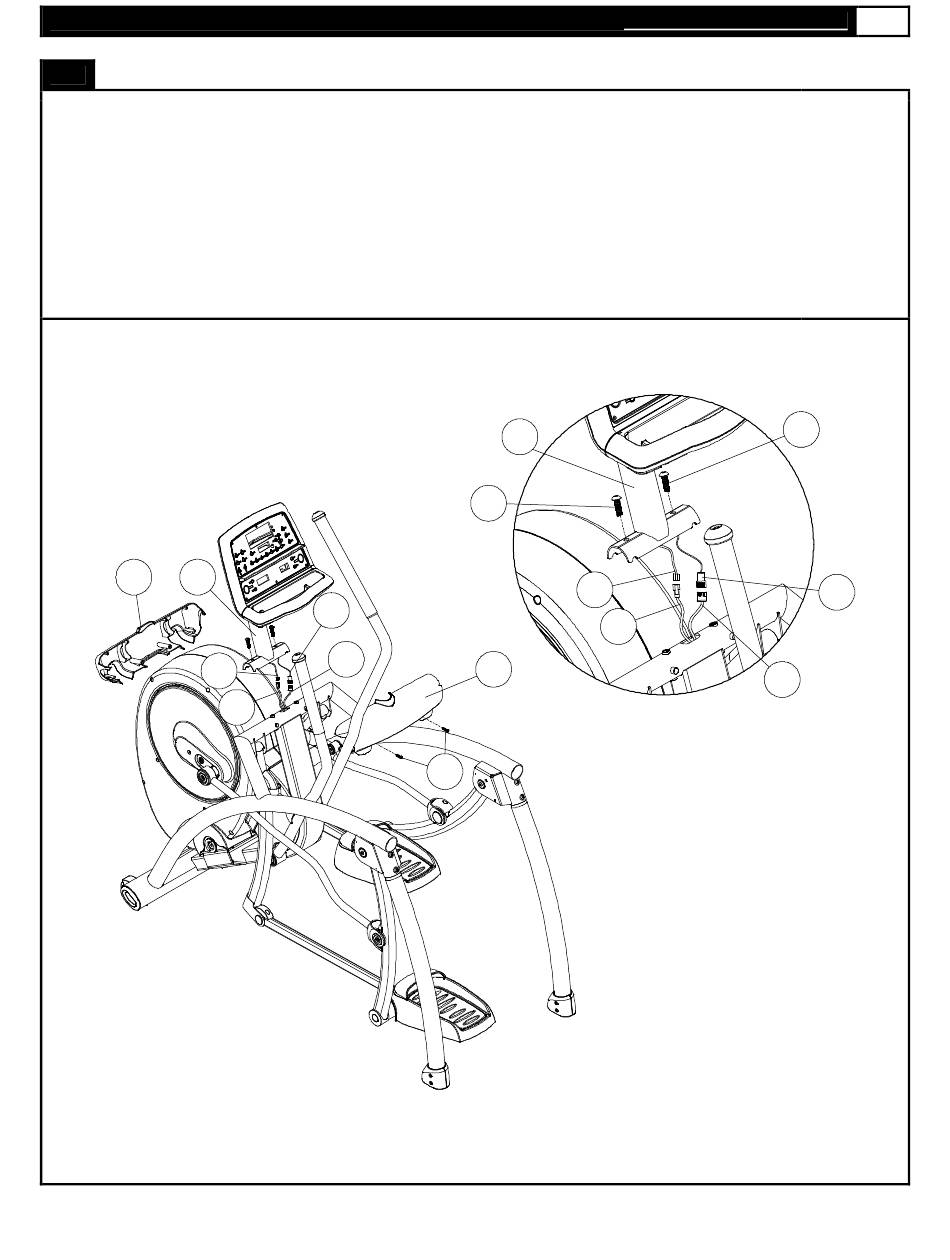

STEP 7:
With a person holding the console, connect the 12 Pin Upper Cable (610) with the 12 Pin Lower Cable (611). Connect
the 4 Pin Upper Hand Pulse Cable (615) and 4 Pin Lower Hand Pulse Cable (616), Insert the extra length of cables
into the Console Assembly and insert the 12 pin connector into the hole on Front Tower then place the Console
Assembly onto the Front Tower as shown. Ensure tight and proper connection between the cables. Important Note:
The half-round hole on the Console Assembly bottom bracket must match with the pins welded on the Front Tower
before tightening the Console Assembly with the Front Tower. Secure the Console Assembly with 2 M8x25 Bolts
(503). Insert 6 pieces Nylon Pin (230) into the Front Tower Cover (351 ), mount the Front Tower Cover (351) and Rear
Tower Cover ( 352) together to cover the connection at the main frame as shown then secure them with 2 4x19 Flat
Head Philip screws (507) as shown. NOTE: When tightening the console to the main frame, Do Not tighten one side
all the way down before the other side. Tighten each side down equally small amounts at a time.
503
116
503
352 116
616
610
610
615
611
351
615
611
616
507
