ASSEMBLY
STEP 3:

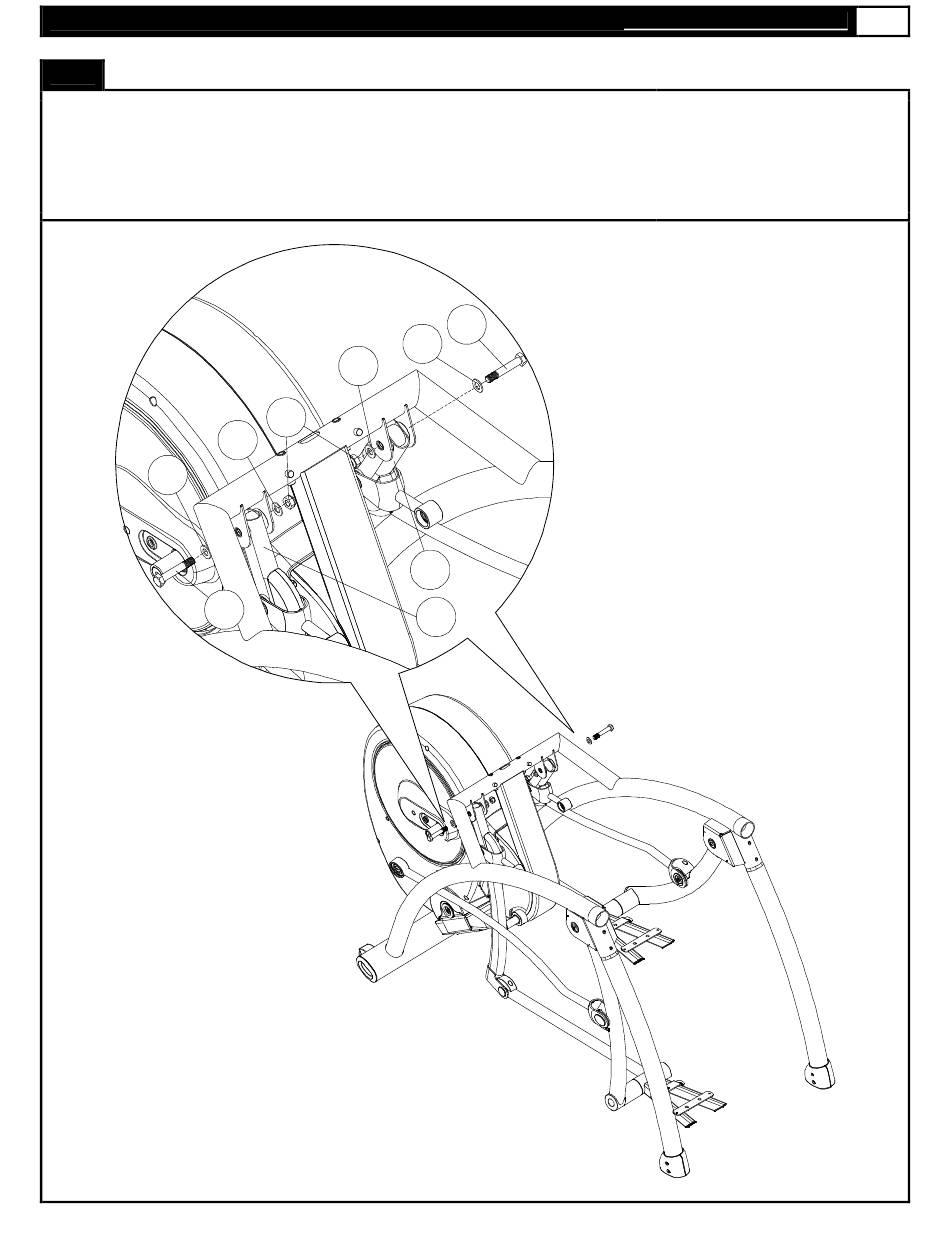

Attach the Left Pedal Swing Arm (106) and Right Pedal Swing Arm (105) with the pivoting bracket on the main frame
as shown and secure with M12x70 shoulder bolt (504), 18x12xT3.5 washer (511), 18x12xT3 washer (512) and M12
Nylon Nut (508) on each side. Important Note: The shoulder bolt must be inserted into the pivoting bracket
completely, no gap should exist between the shoulder bolt head and the pivoting bracket. See Figure below.
504
511
512
508
512
511
105
504
106
