Hartman 68161145 Assembly Instructions

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE

ATTENTION:

1. Please read these instructions carefully before assembly
2. Aluminium is a soft metal and over tightening may strip the thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the product over and into position
when fully assembled

ASSEMBLY STEPS:

1. LOOSELY attach assembled front door (B), side panels (D) and backside panel (C) with bolts (BB) and big flat washers (CC) using allen
key (EE) DO NOT TIGHTEN BOLTS AT THIS STAGE
2. LOOSELY attach base panel (E) to the already assembled panels (B, C and D) with bolts (BB) and big flat washers (CC) using allen key
(EE) DO NOT TIGHTEN BOLTS AT THIS STAGE
3. LOOSELY attach assembled base to the top (A) with bolts (AA) and big flat washers (CC) using allen key (EE) DO NOT TIGHTEN
BOLTS AT THIS STAGE
4. Tighten all bolts one by one with being careful not to over tighten any as this will cause the thread to become damaged
5. Place PVC covers (DD) on all visible bolts (AA and B)
6. Turn the cushion box over and place in desired position and place glass (F) on top.
For more information regarding maintenance of your furniture please visit
https://www.hartmanuk.com/home

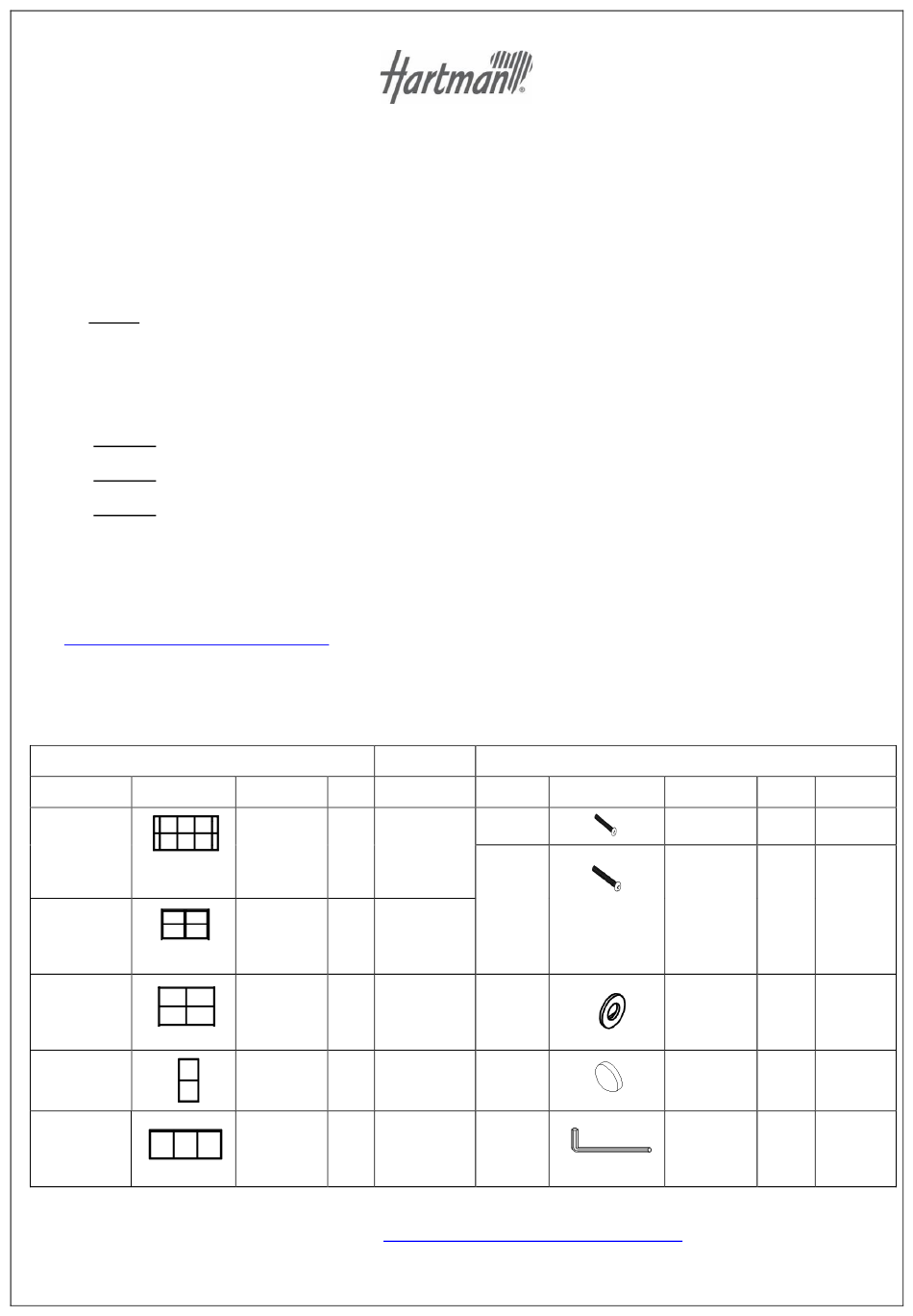

Component's

Parts List

Parts Picture
A
B
C
D
E
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS

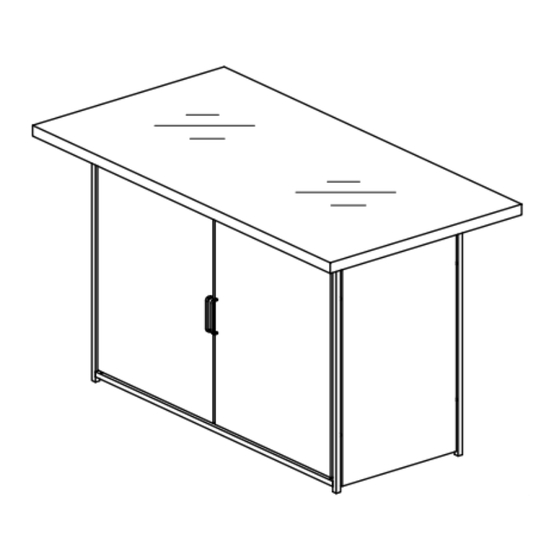

Bar Table with Waterproof Storage
( 68161145 / 68163145 / 68158146 / 68160146
Q'ty
Description Part no
68161145A
Top 1 68163145A
68158146A
68160146A
68161145B
Assembled 1 68163145B
front door 68158146B
68160146B
68161145C
Backside 1 68163145C
panel 68158146C
68160146C
68161145D
Short side 2 68163145D
panel 68158146D
68160146D
68161145E
Base panel 1 68163145E
68158146E
68160146E
http://spares.hartmanuk.co.uk/purchase
)
Fixings
Parts list Parts Picture
AA
BB
CC
DD
EE
Q'ty
Description Part no.
M6*20 bolts 4 1017162
1006162
M6*40 bolts 14
M6 Big Flat 18 1061162
washers
2100036
PVC cover 18 2100037
Allen key 1 2002191
