Hartman 68134145 Assembly Instructions

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE

ATTENTION:

1. Please read these instructions carefully before assembly
2. Aluminium is soft metal and over tightening may strip thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the table over and into position when
fully assembled

ASSEMBLY STEPS:

1. LOOSELY attach legs (B) to panels (C) with bolts (F) and big flat washers (G) and small lock washer (H) and plastic washers (I) using
spanner (K) DO NOT TIGHTEN THE BOLTS AT THIS STAGE
2. Place glass in safe place whilst assembling table
3. Turn the table top (A) upside down on a soft clean surface
4. LOOSELY attach assembled leg section to table top with bolts (E) and big flat washers (G) and small lock washer (H) using spanner (K)
DO NOT TIGHTEN THE BOLTS AT THIS STAGE
5. Tighten all bolts using spanner one by one being careful not to over tighten any as this will cause the thread to become damaged
6. Place Nut Caps (J) on all visible bolts (E and F)
7. Turn table top over and place in desired position
8. Place glass (D) back on table and gently press down on suckers to ensure glass is secure, then put parasol bungs&reducers into the
hole
For more information regarding maintenance of your furniture please visit
http://www.hartmanuk.co.uk/after_care_videos.html

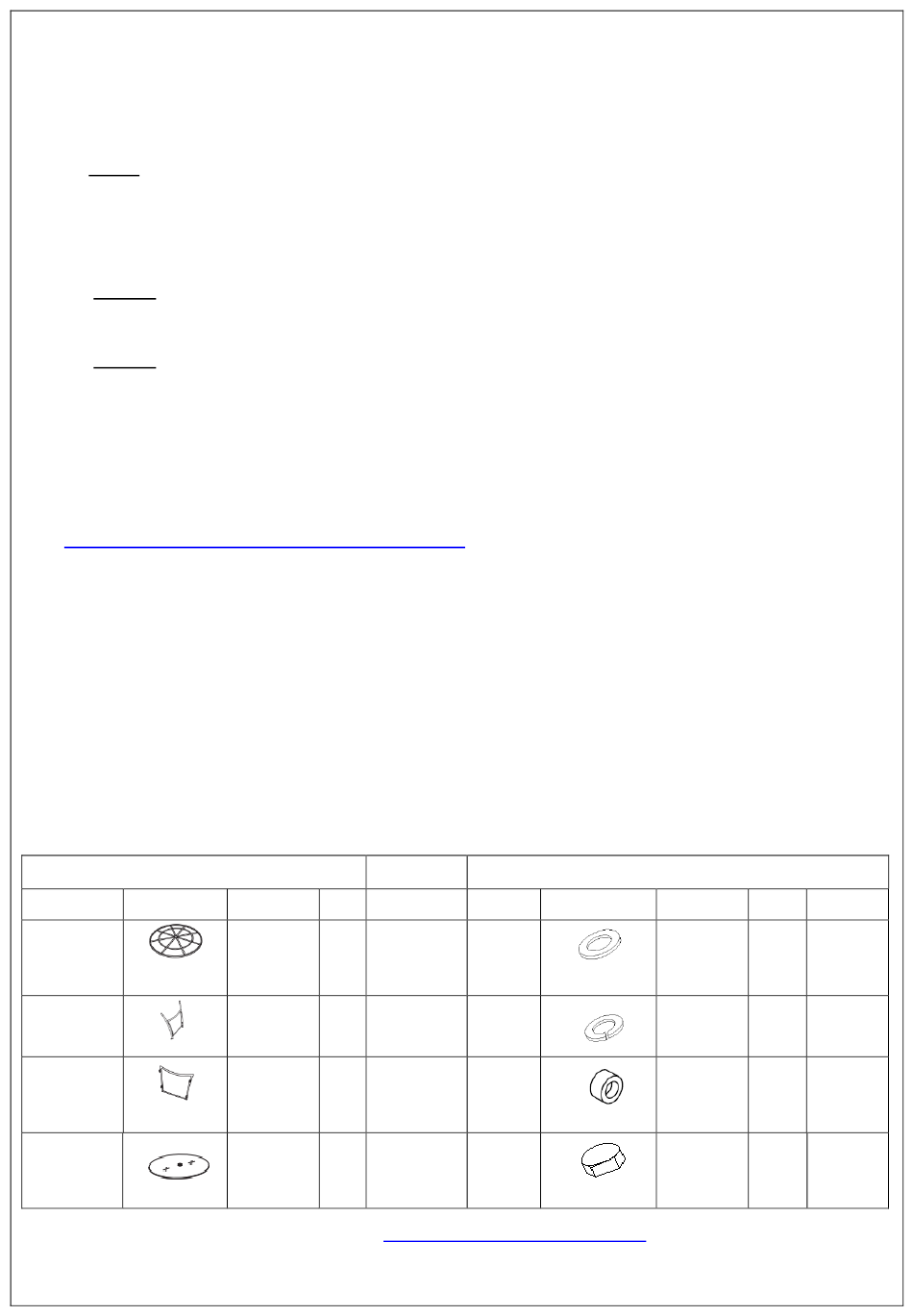

Component's

Parts List

Parts Picture
A
B
C
D
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
Q'ty
Description Part no
68134145A
Table Top 1 68115146A
68106150A
67903003A
68134145B
Legs 2 68115146B
68106150B
67903003B
68134145C
Panel 2 68115146C
68106150C
67903003C
68134145D
Glass 1 68115146D
68106150D
67903003D
http://faq.hartmanuk.co.uk/spares/
Fixings
Parts list Parts Picture
G
H
I
J
Q'ty
Description Part no.
Big Flat 12 1061162
washers
Small lock 12 1221162
Washers
Plastic 8 1008165
washers
Nut Cap 12 2002170
