Hartman 68024145 Assembly Instructions

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
68024145 / 68025145 / 68024146 / 68025146 / 68046145 / 68047145 / 68046146 / 68047146

ATTENTION:

1. Please read these instructions carefully before assembly
2. Aluminium is a soft metal and over tightening may strip the thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help position when fully assembled

ASSEMBLY STEPS:

1. Take glass off table top (A), and place top upside down on a clean surface,
2. Loosely attach middle connection section (B) to table top (A) using bolts (E) and washers (F)
3. Tighten all bolts using the Allen key (G)
4. Put the base in desired position , and place table top into the bottom base
5. Gently push the top until it clicks into place
6. Carefully place the glass (D) on top of the table top after it is clipped at your desired height
7. See instructions below for changing table height
Component's

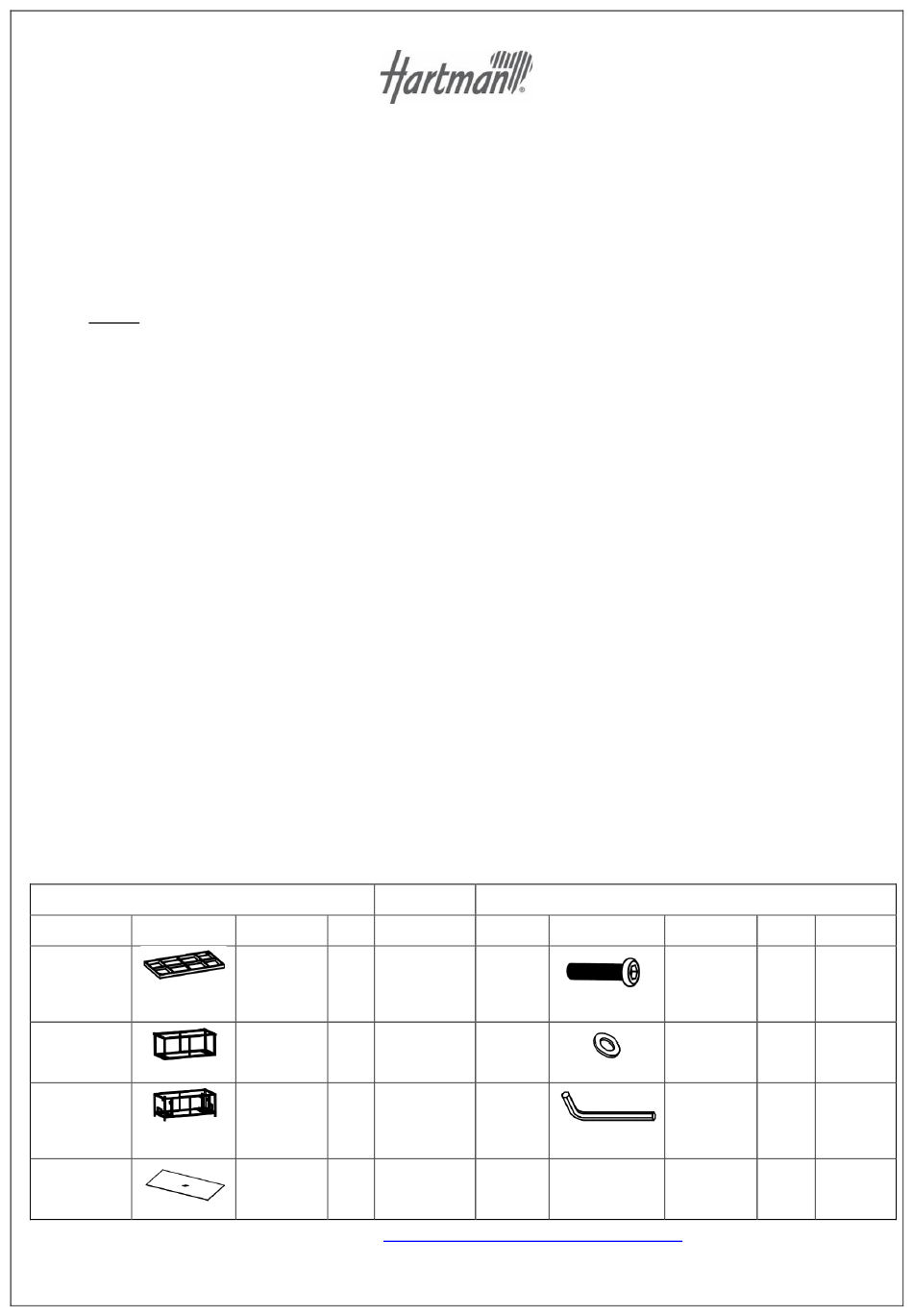

Parts List Parts Picture
A
B
C
D
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS

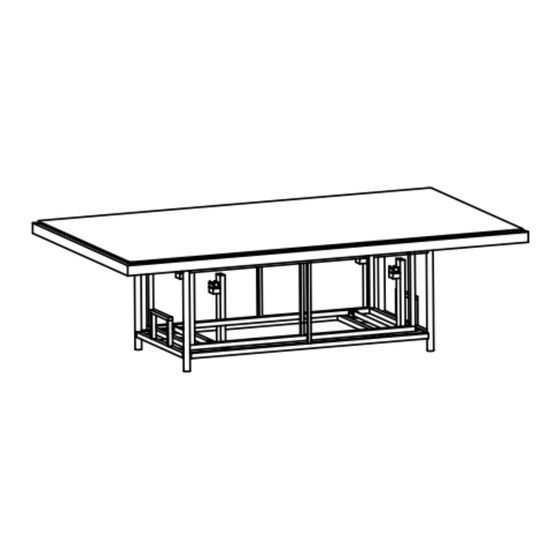

Heritage 150x80cm Adjustable Fully Woven Casual Table
Q'ty
Description Part no
68024145A
Table top 1 68024146A
68046145A
68046146A
68025145B
Middle 1 68025146B
connection 68027145B
section 68027146B
68025145C
Bottom 1 68025146C
base 68027146C
68027146C
68024145D
Glass 1 68024146D
68046145D
68046146D
http://spares.hartmanuk.co.uk/purchase
Fixings
Parts list Parts Picture
E
F
G
)
Q'ty
Description Part no.
M6*40 bolts 4 1006162
Big Flat 4 1061162
Washers
Allen key 1 2002191
