Hartman 68143145 Assembly Instructions Manual

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
ATTENTION:
1. Please read through these instructions fully before assembly and stock check all parts against the parts list below
2. Aluminium is a soft metal and over tightening this may strip the thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person, it is advised that a second person be present to help turn the sofa over and into position when
fully assembled.
ASSEMBLY STEPS:
1. On a clean surface position part (A)and part (B) ready for assembly
2. With 8 bolts (E) and 8 flat washers (F) LOOSELY attach back piece (A) with spanner (C) to seating section (B) DO NOT TIGHTEN
BOLTS AT THIS STAGE.
3. With 2 bolts (D) and 2 flat washers (F) LOOSELY attach the base section (B) with spanner (C) back frame (A) DO NOT TIGHTEN
BOLTS AT THIS STAGE.
4. Now tighten all bolts using the spanner (C) and cover all bolts using nut cap (G)
5. Turn over sofa and place in desired position
Don't forget your Warranty Registration
6.
For more information regarding maintenance of your furniture and to register your warranty, please visit
www.hartmanuk.com
Component's
68143145 / 68026146 / 68109147

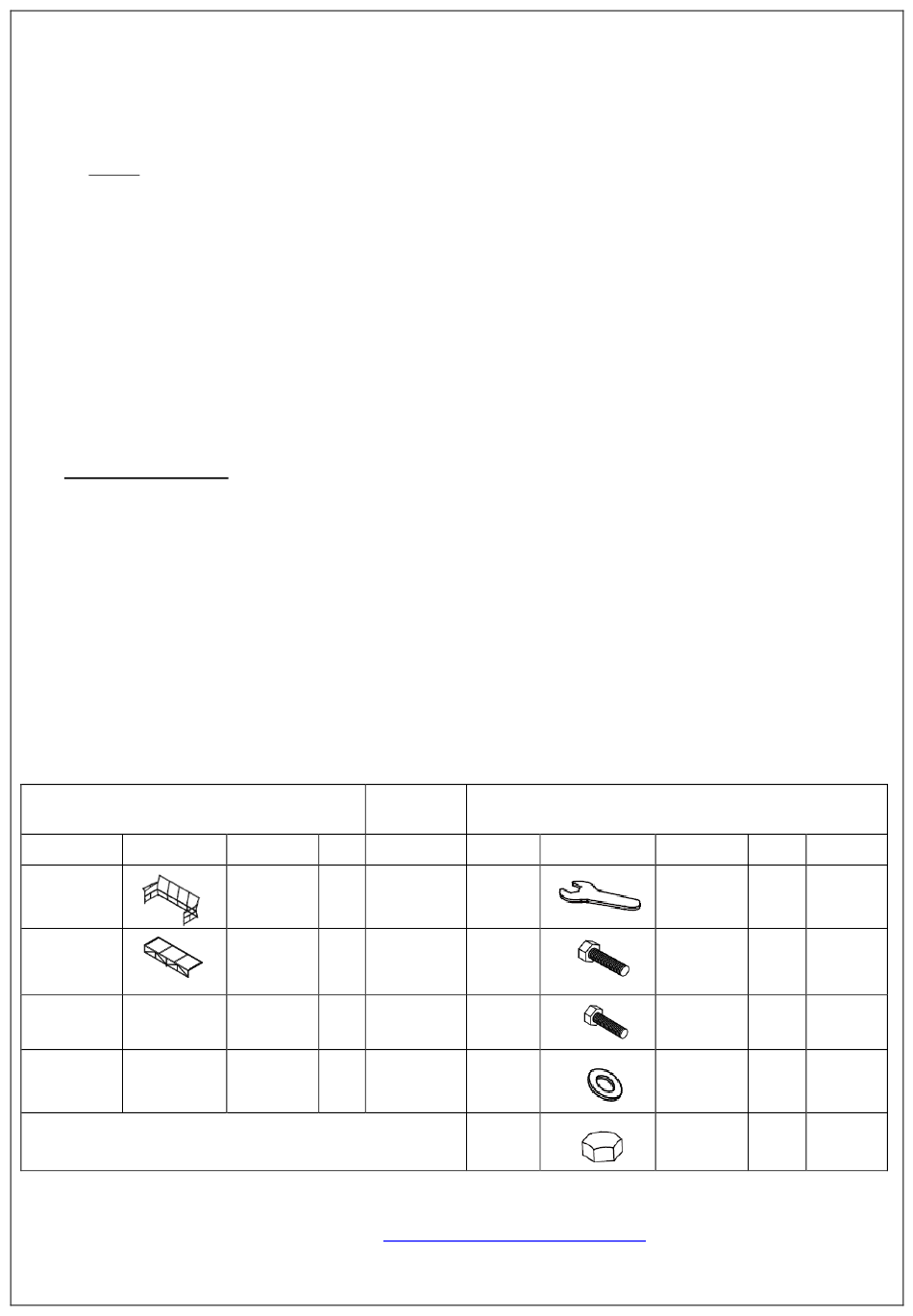

Parts List Parts Picture
A
B
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
Q'ty
Description Part no
68143145A
Back frame 1
68026146A
68109147A
68143145B
Base 1
68026146B
Section
68109147B
http://faq.hartmanuk.co.uk/spares/
Fixings
Parts list Parts Picture
C
D
E
F
G
Q'ty
Description Part no.
Spanner 1 1020162
M6*40 bolts 2
2002176
M6*45 bolts 8
2002167
Big Flat 10
1061162
Washers
Nut cap 10 2002170
