PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE.
ATTENTION:
1.
Please read these instructions carefully before assembly
2.
Aluminium is soft metal and over tightening may strip thread or break the part
3.
DO NOT use power tools
4.
Please allow 30 minutes for assembly.
5.
Although assembly only requires 1 person it is advised that a second person be present to help turn the table over and into position when
fully assembled.
ASSEMBLY STEPS:
1.
LOOSELY attach legs (B) to panels (C) with big bolts (E) and big flat washers (F) and small lock washer (G) using spanner (I) DO NOT
TIGHTEN BOLTS AT THIS STAGE
2.
Take glass off the table (D) (in case of breakage) turn the table top (A) upside down on a soft clean surface.
3.
LOOSELY attach assembled leg section to table top with bolts (E) and big flat washers (F) and small lock washer (G) using spanner (I)
DO NOT TIGHTEN THE BOLTS AT THIS STAGE
4.
Tighten all bolts using spanner one by one being careful not to over tighten any as this will cause the thread to become damaged
5.
Place Nut Caps (H) on all visible bolts (E)
6.
Turn table top over and place in desired position.
7.
Place glass (D) back on table and press down on suckers to ensure glass is secure, put parasol bungs & reducers(J) in the hole on table
top.
For more information regarding maintenance of your furniture please visit
Component's
Parts List
Parts Picture
A
B
C
D
http://www.hartmanuk.co.uk/after_care_videos.html
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product.
Q'ty
Description
Part no
68107145A
Table Top
1
68139145A
68111146A
68120146A
67906003A
68107145B
Legs
2
68139145B
68111146B
68120146B
67906003B
68107145C
Panel
2
68139145C
68111146C
68120146C
67906003C
68107145D
Glass
1
68139145D
68111146D
68120146D
67906003D
http://faq.hartmanuk.co.uk/spares/
Fixings
Parts list
Parts Picture
E
F
G
H
I
J
Q'ty
Description
Part no.
25mm*M6
14
1231162
bolts
Big Flat
14
1061162
washers
Small Lock
14
1221162
Washers
Nut Cap
14
1081162
Spanner
1
1020162
Parasol
2002181
bungs &
3
reducers
Advertisement
Table of Contents
Related Manuals for Hartman 68107145
Summary of Contents for Hartman 68107145
- Page 1 PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE. ATTENTION: Please read these instructions carefully before assembly Aluminium is soft metal and over tightening may strip thread or break the part DO NOT use power tools Please allow 30 minutes for assembly. Although assembly only requires 1 person it is advised that a second person be present to help turn the table over and into position when fully assembled.

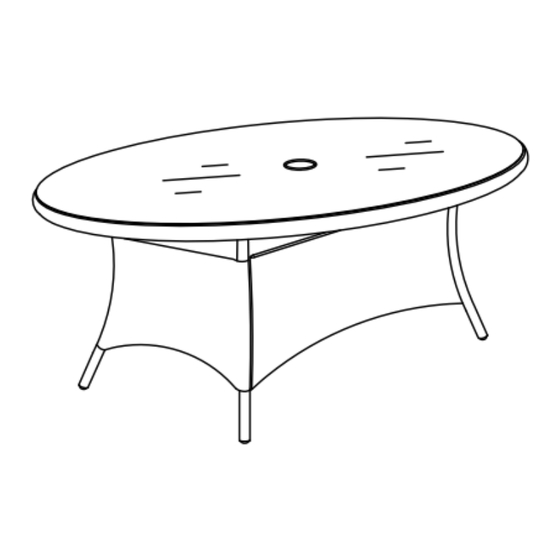

- Page 2 PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE. ASSEMBLY INSTRUCTIONS Heritage/ Henley 215 x 150cm Inlaid Elliptical Table 68107145 / 68139145 / 68111146 / 68120146 / 67906003 For replacement or lost spare parts please go to http://faq.hartmanuk.co.uk/spares/ Should you have any queries about your furniture your first point of contact should be the retailer from whom you purchased your product.
