Hartman 68158145 Assembly Instructions

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE

ATTENTION:

1. Please read these instructions carefully before assembly
2. Aluminium is a soft metal and over tightening may strip the thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the product over and into position
when fully assembled

ASSEMBLY STEPS:

1. LOOSELY attach top (A) to 2 leg panels (B) with 4 bolts (I) and 4 big flat washers (K) using spanner (N) DO NOT TIGHTEN BOLTS AT
THIS STAGE
2. LOOSELY attach upper interlayer (C) to the leg panels (B) with 4 bolts (J) and 4 big flat washers (K) using spanner (N)
3. LOOSELY attach Lower interlayer (E) and Backside panel (D) to the leg panels (B) with 12 bolts (J) and 12 big flat washers (K) using
spanner (N)
4. LOOSELY attach bottom panel (F) to the leg panels (B) with 6 bolts (J) and 6 big flat washers (K) using spanner (N)
5. Place 4 plastic washer (M) on the roller of front door (G and H) then fix it well
6. Tighten all bolts one by one with spanner (N) being careful not to over tighten any as this will cause the thread to become damaged
7. Place Nut cap (L) on all visible bolts (I, J)
8. Turn it over and place in desired position, then place glass (O) on top.
For more information regarding maintenance of your furniture please visit
https://www.hartmanuk.com/home
Component's

Parts List

Parts Picture
A
B
C
D
E
F
G
H
For Replacement Or Lost Spare Parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product

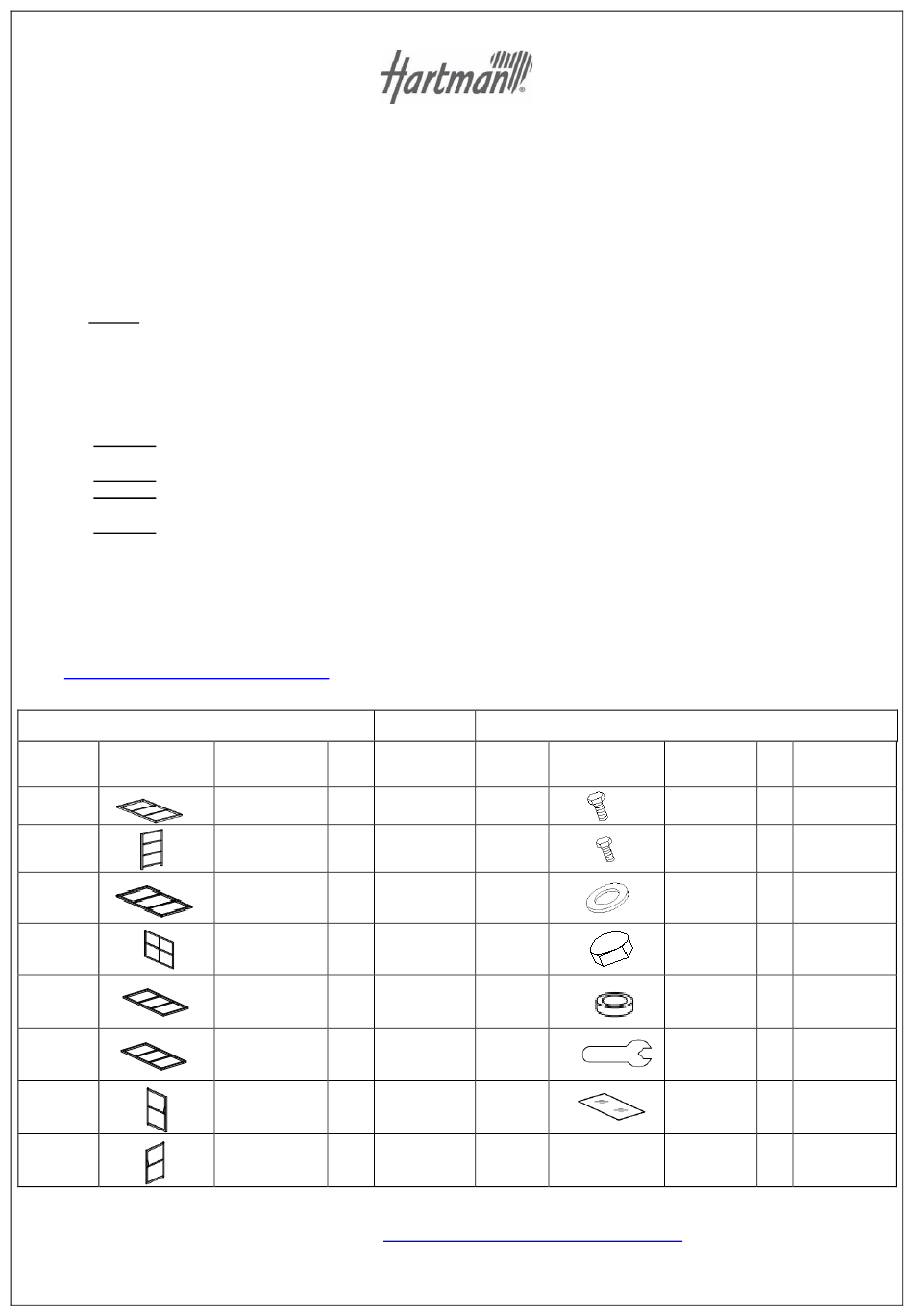

ASSEMBLY INSTRUCTIONS
Bar Cabinet with Shelf (GLASS)
( 68158145 / 68155146
Q'ty
Description
68158145A
Top 1 68155146A
68158145B
Leg panels 2 68155146B
68158145C
Upper 1 68155146C
Interlayer
68158145D
Backside panel 1 68155146D
68158145E
Lower 1 68155146E
Interlayer
68158145F
Bottom panel 1 68155146F
68158145G
Front door - 1 68155146G
left panel
68158145H
Front door - 1 68155146H
right panel
http://spares.hartmanuk.co.uk/purchase
)

Fixings

Parts list Parts Picture
I
J
K
L
M
N
O
Q'
Description
ty
M6*55 bolts 4 2002166
1131162
M6*45 bolts 22
1061162
Big Flat 26
washers
PVC cap 26 2100036
2100037
2100044
Plastic 4
washer
2100041
Spanner 1
68158145O
Glass 1 68155146O
