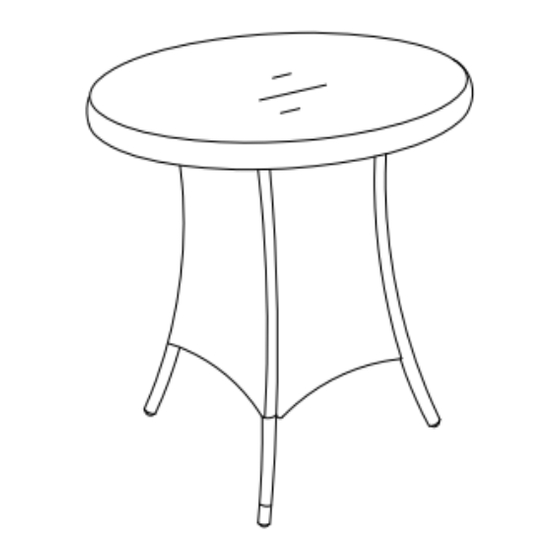

Hartman 68160147 Assembly Instructions

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
ATTENTION:
1. Please read these instructions carefully before assembly
2. Aluminium is a soft metal and over tightening may strip the thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the table over and into position when
fully assembled

ASSEMBLY STEPS:

1. LOOSELY attach legs (B) to panels (C) with bolts (F), big flat washers (H), small lock washer (G) and plastic washers(I) using spanner
(K) DO NOT TIGHTEN THE BOLTS AT THIS STAGE
2. Place glass in safe place whilst assembling table
3. Turn the table top (A) upside down on a soft clean surface
4. LOOSELY attach assembled leg section to table top with bolts (E), big flat washers (H) and small lock washer (G) using spanner (K) DO
NOT TIGHTEN THE BOLTS AT THIS STAGE
5. Tighten all bolts using spanner one by one being careful not to over tighten any as this will cause the thread to become damaged
6. Place Nut Caps (J) on all visible bolts (E and F)
7. Turn table top over and place in desired position
8. Place glass (D) back on table and gently press down on suckers to ensure glass is secure
For more information regarding maintenance of your furniture please visit
Component's

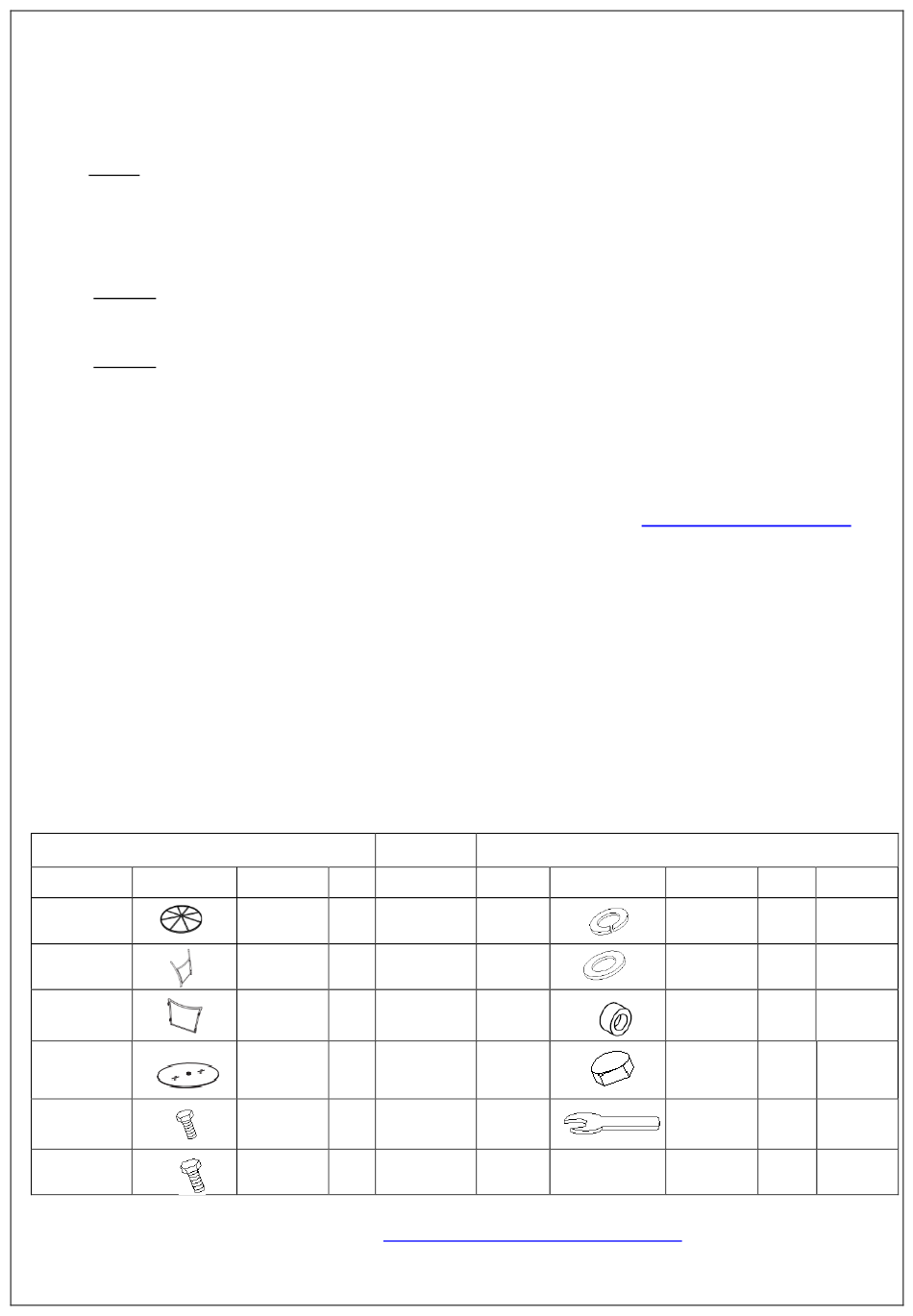

Parts List

Parts Picture
A
B
C
D
E
F
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
Q'ty
Description Part no
68160147A
Table Top 1 68161146A
68160147B
Legs 2 68161146B
Panel 2 68160147C
68161146C
Glass 1 68160147D
68161146D
M6*20 bolts 4 1017162
1111162
M6*40 bolts 8
http://spares.hartmanuk.co.uk/purchase
http://www.hartmanuk.com
Fixings
Parts list Parts Picture
G
H
I
J
K
L
Q'ty
Description Part no.
Small lock 12 1221162
Washers
Big Flat 12 1061162
washers
Plastic 8 2100044
washers
PVC Cap 12 2100036
2100037
2100041
Spanner 1
